A complete analysis of the working principle of linear guide slider

What is a linear guide slider?

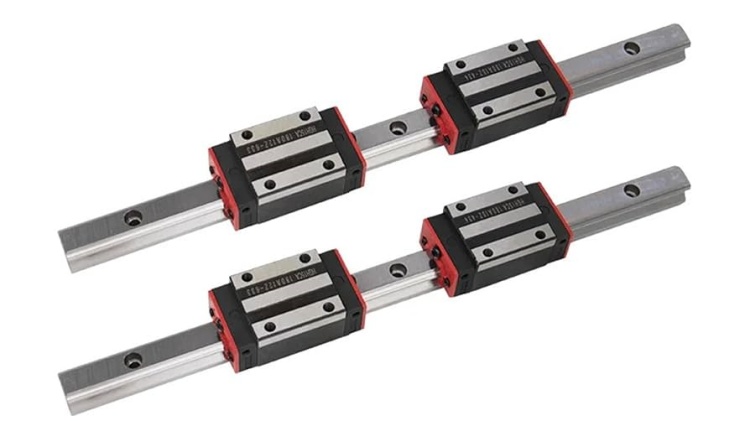

A linear guide slider, also known as a linear guide or linear rail, is a mechanical system consisting of a guide rail and a slider. Its core function is to guide a moving part along a predetermined path with high precision and low friction. The guide rail is fixed to the equipment base, providing rigid support and a guide reference. The slider, mounted on the moving part, slides back and forth along the rail, achieving smooth reciprocating motion.

Core Structure of a Linear Guide Slider
A typical linear guide slider system consists of the following key components:

Rail

Typically made of high-strength alloy steel, precision-ground and heat-treated to ensure exceptional straightness and surface hardness. The rail features precisely machined raceways to guide the ball bearings.

Slider/Block

The slider incorporates an integrated ball circuit system consisting of balls, a retainer, and a return mechanism. The contact between the balls and the rail raceways creates rolling friction, significantly reducing motion resistance.

Ball Bearings

Balls are key to achieving low-friction, high-precision motion in linear guides. They circulate in the raceways between the rail and slider, converting sliding friction into rolling friction.

Sealing

To prevent the intrusion of dust, debris, and liquids, linear guides are typically equipped with dust covers, oil wipers, and sealed end caps to ensure internal cleanliness and extend service life.

Lubrication System: High-performance linear guides support automatic or manual lubrication, ensuring the ball bearings are consistently well lubricated and reducing wear.

Working Principle of a Linear Guide Slider
The operating principle of a linear guide slider is based on the design concept of "rolling friction replacing sliding friction." Its operation can be divided into the following stages:

Load Transfer
When the slider carries an external load, the load is transferred to the internal balls through the slider, which then evenly distribute the load to the guide rail's raceways. Because the balls are in point or line contact, the contact area is small and stress is concentrated, requiring the guide rail material to be highly hard and wear-resistant.

Rolling Circulation
The balls roll in the raceways inside the slider. When they reach the end of the slider, they pass through a return device into a return channel, forming a closed loop. This process ensures that the balls continuously roll between the guide rail and slider, achieving continuous and smooth motion.

Preload Adjustment
High-precision linear guides typically utilize a preload design. This design adjusts the preload applied to the balls to eliminate clearance (play) between the balls and the raceways, thereby improving system rigidity and positioning accuracy. Preload methods include single-screw preload, double-screw preload, and interference fit.

Guiding and Positioning
The geometric accuracy of the guide rail (such as straightness and parallelism) directly determines the motion trajectory of the slider. High-precision ground guide rails ensure that the slider does not deflect or vibrate during long-distance movement, achieving micron-level positioning accuracy.
