Linear slide rail bearings are mechanical components used to achieve smooth linear motion, widely used in automation equipment, CNC machine tools, and 3D printers.
Definition and Function of Linear Slide Rail Bearings: A linear bearing is a linear motion system, typically used in conjunction with a guide shaft. Its main function is to support and guide the linearly moving shaft, enabling it to move smoothly. Linear bearings usually consist of an outer ring, steel balls, and a cage. The steel balls roll within the outer ring, reducing friction and providing low-friction motion. Linear bearings are suitable for applications where high precision is not required, such as automated equipment and electronic devices.

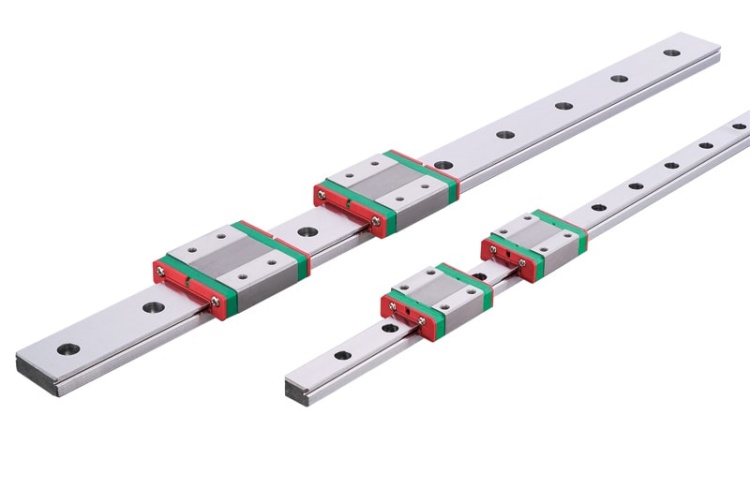

Definition and Function of Linear Slide Rail Bearings: A linear slide rail (or linear guide) is a device used to support and guide moving parts in linear reciprocating motion. It typically consists of a guide rail and a slider, with the slider cooperating with the guide rail to achieve linear motion. Linear slide rails have higher load capacity and precision, making them suitable for applications with high precision and stability requirements, such as CNC machine tools and 3D printers.
Differences between Linear Bearings and Linear Rails
Structure: Linear bearings have a relatively simple structure, mainly consisting of an outer ring and steel balls, while linear rails consist of a guide rail and a slider, making their structure more complex.
Load Capacity: Linear rails typically have higher load capacity and rigidity, making them suitable for bearing larger loads, while linear bearings have relatively lower load capacity.
Application Scenarios: Linear bearings are mostly used in applications where high precision requirements are not necessary, while linear rails are widely used.
Conclusion: Linear slide rail bearings play an important role in modern mechanical transmission. Choosing the right linear motion system depends on specific application requirements, including load capacity, precision requirements, and cost. Understanding their characteristics and differences helps in making more informed decisions during design and selection.
 |
