Do you know motor bearings types and loads?

What Are Motor Bearings?

Motor bearings are important components in electric motors that support the rotating shaft and reduce friction, enabling smooth rotation. They ensure efficient, reliable motor operation with minimal wear.

Importance:

• Reduce friction, improving efficiency and lowering heat.
• Support radial and axial loads.
• Maintain alignment to reduce stress and wear.
• Extend motor lifespan by minimizing wear.

Choosing motor bearings depends on load, speed, environment, and lubrication needs. Regular maintenance, including lubrication and wear monitoring, is key to optimal performance and preventing failure.

There are two main types of load that act on the motor bearings – radial and axial.

• Radial motor bearings – A radial load is defined as a load that is applied perpendicular to the shaft. An example of a radial load would be an overhung load, such as with a sheave.
• Axial motor bearings – An axial load, also referred to as thrust, is a load that acts parallel to the shaft on which the bearing is mounted. Just the rotor weight of a vertically mounted motor will cause a downward axial load on the bearing.

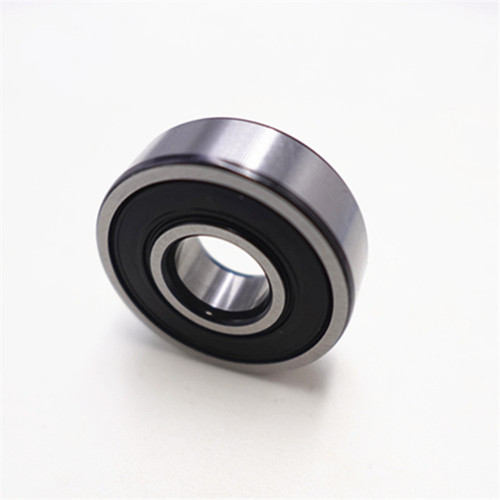

1. Deep Groove Ball Bearings have deep grooves that support both radial and axial loads in both directions. They operate smoothly at high speeds with low friction and are versatile, commonly used in small to medium motors, fans, and pumps.

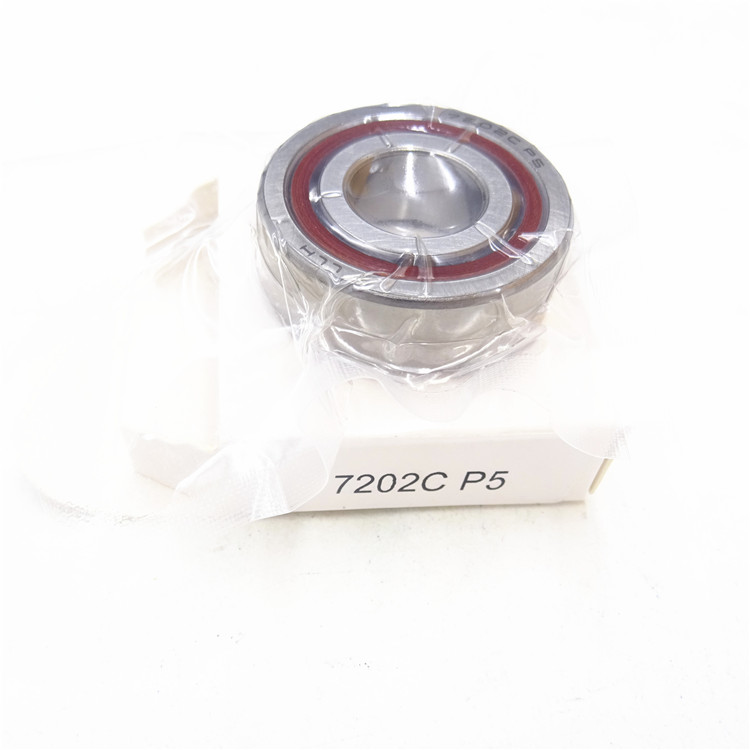

2. Angular Contact Ball Bearings can carry loads from the side and along the shaft. They have adjustable angles to handle different forces. These bearings work well in fast, precise machines and come in one or two rows. They are often used in high-speed motors that need the shaft to be positioned very accurately.

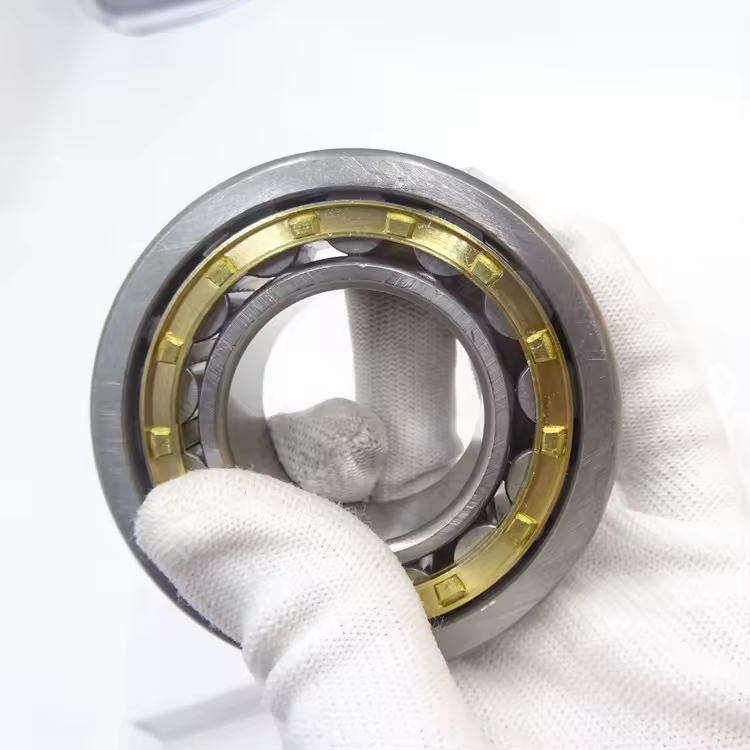

3. Cylindrical Roller Bearings use cylinder-shaped rollers to support heavy radial loads and high speeds, but are not suitable for axial loads. They are typically used in medium to large motors, gearboxes, and pumps.

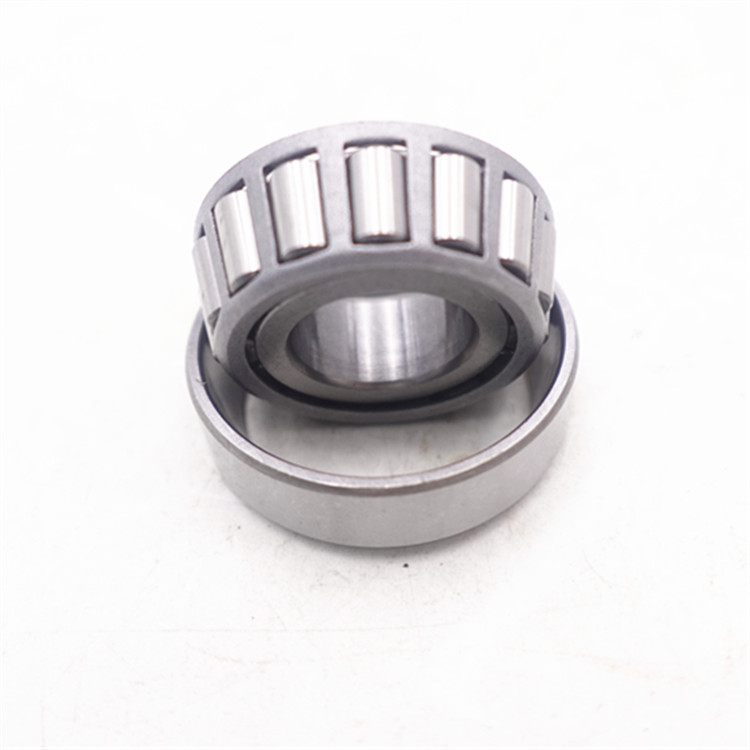

4. Tapered Roller Bearings have cone-shaped rollers designed for combined heavy radial and axial loads, with adjustable internal fits. They are used in vehicles, heavy machinery, and large motors.
5. Needle Roller Bearings use long, thin rollers to support high radial loads in compact spaces. They offer low friction and are ideal for transmissions, where space is limited.
6. Self-aligning ball bearings have two rows of balls and a curved outer ring that allows them to adjust if the shaft is a bit tilted. They handle medium-sized sideways loads and are commonly used in conveyors and farming machines. However, they aren’t suitable for heavy loads that push along the shaft.
7. Plain bearings are simple, low-cost, tube-shaped parts that work well under heavy loads at low speeds with proper lubrication. They’re commonly used in machines requiring strong and easy-to-use components.

Selecting the right motor bearings depends on load, speed, space, and environmental conditions to ensure optimal motor performance and longevity.
