NTA 1423 Bearing Is Needle Roller and Cage Thrust Assembly

321 Published by admin Dec 31,2025

Key Features

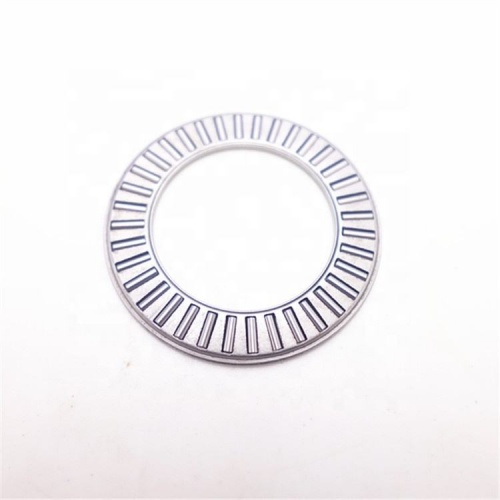

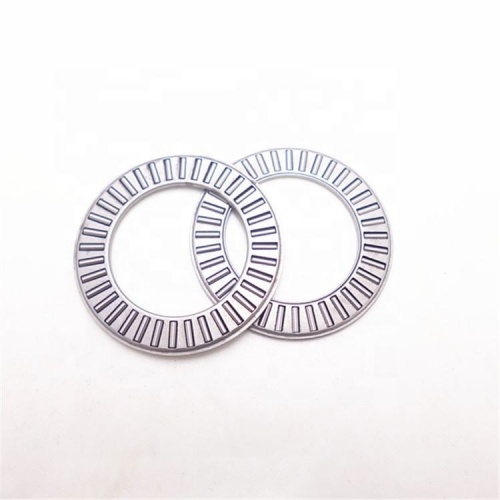

NTA 1423 bearing is a Thrust Caged Needle Roller Bearing designed for use with a set of TRB-Series thrust washer and cage assemblies in applications where adjacent components cannot serve as raceways. This bearing is made from chrome steel and has been pre-lubricated with light oil, ensuring it is ready for use upon arrival.

Applications / Industries

NTA 1423 bearing is Thrust Needle Roller Bearings are used in a wide variety of applications including Machine Tool Drive Shafts, Automotive Steering Gears and Clutches, Rotary Tables, Outboard Motor Propellers, Office Equipment, Lathe Machines, Milling Machines Spindles, HVAC Systems, among others.

Key points for installing NTA 1423 bearings
Cleaning and positioning: Before installation, be sure to thoroughly clean the shaft neck and bearing seat with non-woven fabric to ensure that there are no impurities. Pay attention to distinguishing between the tight ring (attached to the shaft shoulder) and the loose ring (facing the bearing seat), especially for one-way bearings, the direction should be distinguished.
Precise assembly:
It is recommended to use a press to vertically press the inner ring, and it is forbidden to strike the outer ring to avoid damage.
Alternatively, an oil bath can be used to heat the bearing to 80-100 ℃ and quickly insert it, taking care not to let the bearing touch the bottom of the oil tank.
Tightening and testing: Immediately fix the inner ring with a locking nut after installation, and use a dial gauge to check the axial clearance (controlled at 0.05-0.1mm), and finally apply anti rust oil.

NTA 1423 Bearing Maintenance Suggestions
Regular inspection: Regularly check the axial clearance and lubrication status of the bearings to ensure no abnormal wear or overheating.
Lubrication management: Choose appropriate lubricating grease according to the usage environment, regularly replenish or replace it, and maintain good lubrication.
‌ NTA 1423 Bearing Supplier

NTA 1423 Bearing Common Problem Handling
Abnormal axial clearance: If the clearance is too large or too small, adjust the locking nut or check if the bearing is damaged.
NTA 1423 bearing abnormal noise or heating: Stop the machine immediately for inspection, it may be due to insufficient lubrication or bearing damage, and it needs to be dealt with in a timely manner.
Be careful during installation and maintenance to avoid affecting the bearing life and equipment operation due to improper operation.
