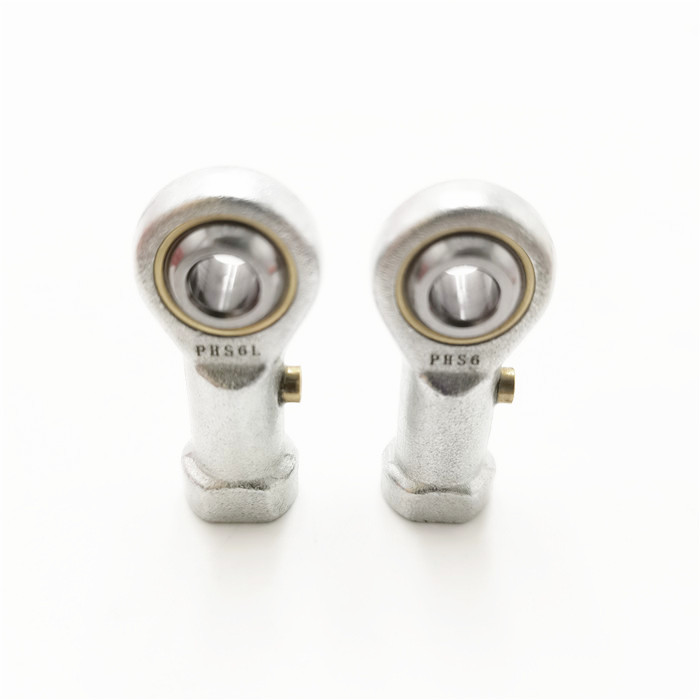

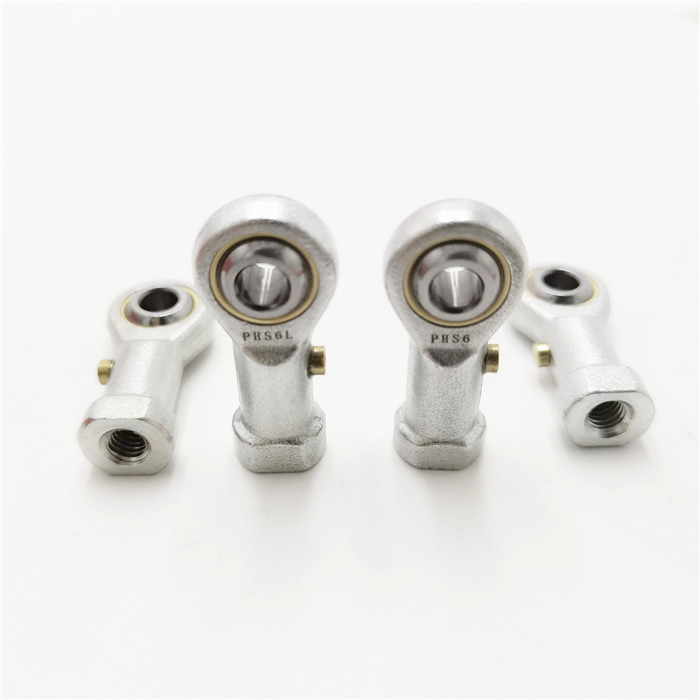

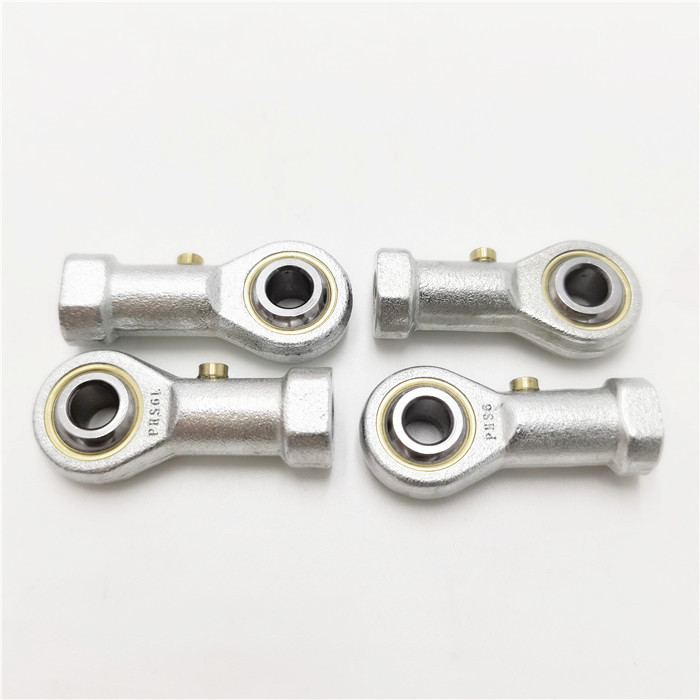

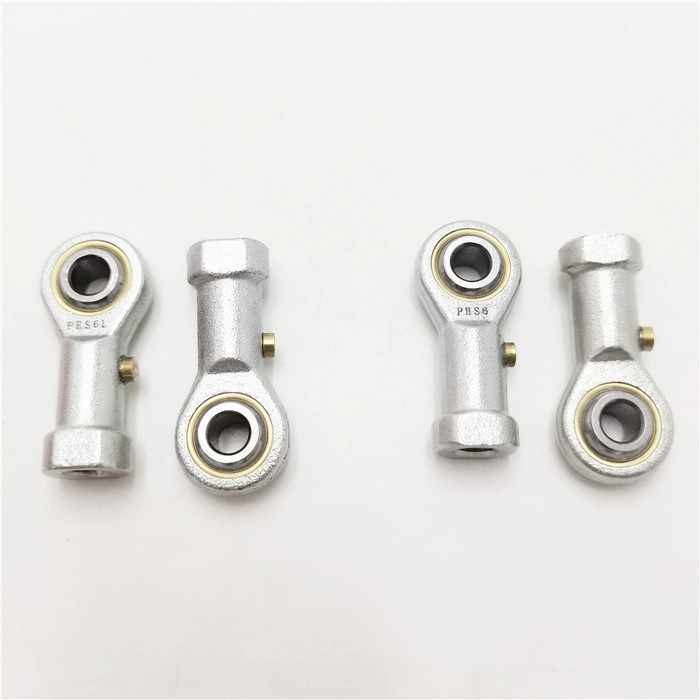

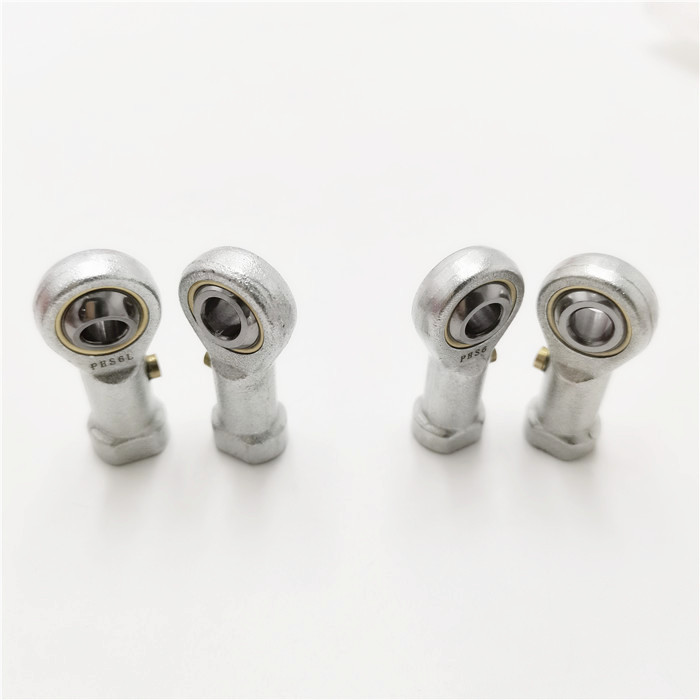

6mm rod end bearing PHS6 rod end bearing

Rod-end joint bearings are mainly composed of an inner ring with an outer sphere and an outer ring with an inner sphere, which can withstand large loads.


Product Specification:

  • Model PHS6
  • Size 6*18*9
  • Brand LLH or as your request
  • Original China
See Price

6mm rod end bearing PHS6 rod end bearing

Introduction

Joint bearing is a kind of special structure of sliding bearing. It is simple in structure than the rolling bearing, which is mainly composed of a spherical inner ring and a spherical outer ring, can bear larger load, according to the different types and structures, can be combined load to bear radial load, axial load and radial, axial exist at the same time.

Feature

1. Bearings with a stretching rod, stretching with right or left-hand male thread.

2. To plate zinc on the surface of rod body, the housing with a lubricartion hole or a grease nipple.

3. Rod ends permissible operating temperature, are available on - 30 °C to + 80 °C temperature range of use, and keep the right to bear ability.

Application

It is widely used in the industry of engineering hydraulic oil cylinder, metal forming machine, engineering machinery, automation equipment, auto damper, Water Conservancy Machine and so on.

it is generally used in low speed of swing motion, the angular motion, can bear larger load, can bear radial load, axial load or the joint of the radial, axial load.

6mm rod end bearing 6mm rod end bearing PHS6
rod end bearing PHS6 rod end bearing

FAQ:

1,Q: Are you trading company or manufacturer ?

A: We are factory.

2,Q: How long is your delivery time for 6mm rod end bearing PHS6 rod end bearing?

A: Generally it is 3-5 days if the goods are in stock.or it is 15-20 days if the goods are not in stock,it is according to quantity.

3,Q: Do you provide samples for 6mm rod end bearing PHS6 rod end bearing? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

4,Q: What is your terms of payment for 6mm rod end bearing PHS6 rod end bearing?

A: Payment<=1000USD, 100% in advance.Payment>=1000USD,30% T/T in advance,pay the balance before shippment.

5, Q:Could you accept OEM and customize?

A:YES,we can customize for you according to sample or drawing.

6, Q: When can I get the price for bearing?

A:  after we get your inquiry, usually within 2-6 hours.Urgent will be faster.

7,Q:How about your quality of 6mm rod end bearing PHS6 rod end bearing?

A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.

8, Q: What is the MOQ of your 6mm rod end bearing PHS6 rod end bearing?
A: Usually ≥1, According your demand.

9,Q: Will you check these products before shipment?

A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.

10, Q: What will we do if If you are not satisfied with 6mm rod end bearing PHS6 rod end bearing?
A: If have any problem,Please contact us at first time, we will immediately processing.

If you need any brand bearings or any models of bearings, please contact me!Contact: Grace
Email: ntn@llhbearing.com
Skype:+8618668903871
MP/Whatsapp: +8618668903871
Wechat:GraceXu1234
bearing manufaturer
Product name
Rod End Joint Bearing
Material
Chrome Steel
Model
PHS6
Feature
High Speed
Application
Automotive.tractor.construction Machinery.rolling Mill
Service
OEM Customized Services

high speed bearing

Bearing    NO    Diamensions(mm) Load rating a Weight(kg)
C1 d B d2 max d3 h1 L3 MIN L4 MAX L5 MAX ds max S Dynamic Static
PHS 5 6 5 8 16 M5*0.8 27 14 35 4 11 9 3.3 4.1 13 0.016
PHS 6 6.75 6 9 18 M6*1 30 14 39 5 13 11 4.3 5.3 13 0.026
PHS 8 9 8 12 22 M8*1.25 36 17 47 5 16 14 6.8 8.5 14 0.044
PHS 10 10.5 10 14 26 M10*1.5 43 21 56 6.5 19 17 10 11 14 0.072
PHS 12 12 12 16 30 M12*1.75 50 24 65 6.5 22 19 13 14 13 0.108
PHS 14 13.5 14 19 34 M14*2 57 27 74 8 25 22 17 20 16 0.161
PHS 16 15 16 21 38 M16*2 64 33 83 8 27 22 21 25 15 0.225
PHS 18 16.5 18 23 42 M18*1.5 71 36 92 10 31 27 26 30 15 0.295
PHS 20 18 20 25 46 M20*1.5 77 40 100 10 34 30 31 35 15 0.382
PHS 22 20 22 28 50 M22*1.5 84 43 109 12 37 32 38 43 15 0.488
PHS 25 22 25 31 60 M25*2 94 48 124 12 42 36 47 65 15 0.749
PHS 28 25 28 35 66 M28*2 103 53 136 12 46 41 59 77 15 0.949
PHS 30 25 30 37 70 M30*2 110 56 145 15 50 41 63 86 17 1.

high quality bearing
