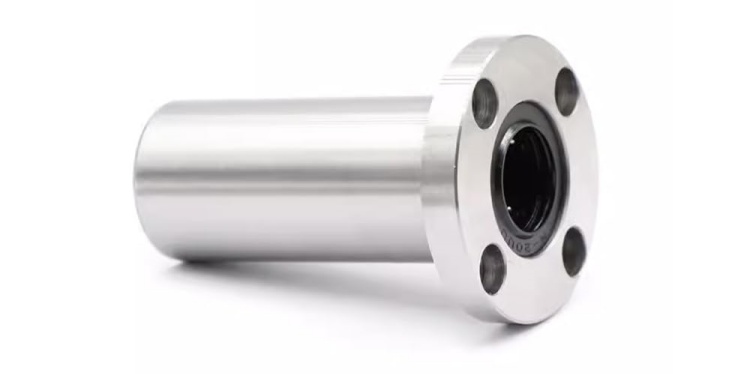

Round shaft linear bearings integrate the linear bearing and support, resulting in a compact structure that facilitates accurate and simple assembly into the mechanism.
Features of Round Shaft Linear Bearings:
Feature 1: Effective Space Utilization. Used in conjunction with guide shafts, linear bearings effectively utilize space, making them suitable for small-scale mechanism designs.
Feature 2: Selection Based on Operating Environment. Linear bearing outer shells are available in steel and stainless steel, while retainers are available in harsh-condition stainless steel and low-noise resin materials.
Feature 3: Excellent Interchangeability. Linear bearings offer excellent interchangeability due to their ability to be randomly combined with shafts.
Feature 4: Diverse Shapes and Installation Methods. Linear bearings are available in various shapes, including cylindrical, flanged, and fixed-base types, to accommodate various applications.
Feature 5: Price Advantage Compared to Linear Guides.
Regular Maintenance:
① Before use, apply grease to the inner ball bearing rows of the round shaft linear bearing. Replenish as needed. Grease forms an oil film on the surfaces of the steel balls and rolling surfaces (guide shaft and bushing) of a linear bearing, effectively reducing friction and preventing sintering. Grease depletion and aging significantly impact the lifespan of linear bearings.
② Recommended grease: Lithium soap-based grease.
③ Recommended grease interval: Typically every 6 months.
④ For long travel distances, grease every 3 months is recommended, or if the travel distance exceeds 1000km within the specified range, use 1000km as the reference.
⑤ For round shaft linear bearings subjected to large torque loads (eccentric loading), a single-shield type is not suitable; double-shield or multiple single-shield types are recommended.
⑥ For linear bearings with low-temperature hard chrome plating, the inner diameter does not undergo surface treatment.
 |
