Different Types of Linear Sliding Ball Bearing

Linear sliding ball bearing is the core mechanical components of linear motion systems.Mainly used to achieve infinite stroke linear motion in conjunction with cylindrical shafts. It can be divided into standard type, flange type, open type, etc., among which LM series (metric) and LME series (imperial) are suitable for different regional standards. Widely used in precision machine tools, textile machinery, food packaging machinery, electronic equipment, and automotive manufacturing automation assembly lines and other fields.
Technical Features
High precision and stability: friction coefficient as low as 0.001-0.004, providing high-precision and smooth motion.
Material selection: Made of quenched steel, stainless steel, or hard alumina material.
Self lubricating design.

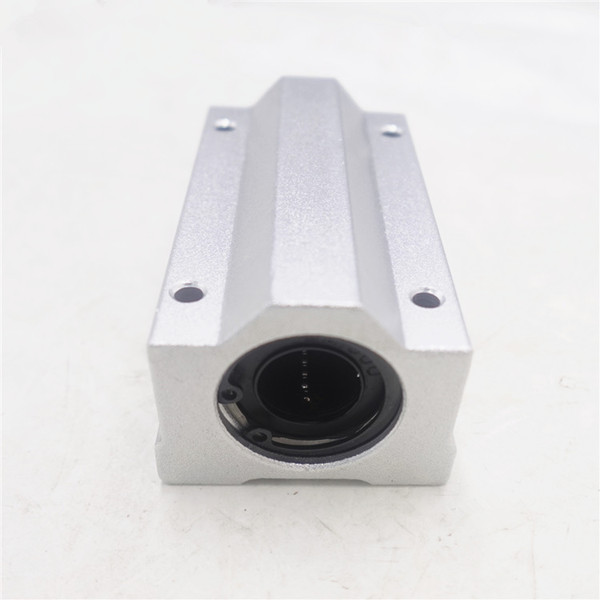

SCS20UU is a type of box type linear sliding ball bearing.Which belongs to the category of linear motion bearings. It is mainly used in linear guide systems to achieve high-precision and low friction linear motion. The "SCS" represents a box structure, "20" represents an inner diameter of 20mm, and "UU" represents an open sealed design at both ends Integrated aluminum shell.Can be directly installed and fixed, simplifying the assembly process. The box structure can disperse loads and is suitable for packaging machinery, conveyor lines, etc.

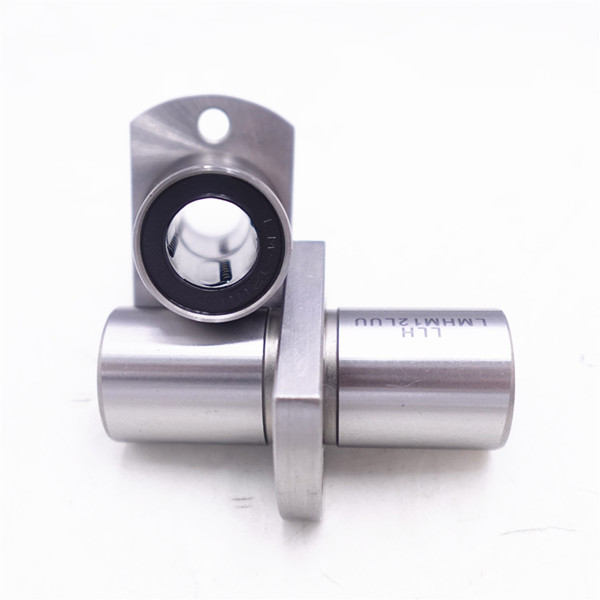

LMHM12LUU is an intermediate flange type linear sliding ball bearing mainly used for high-precision linear guide rail systems. The "LMHM" in its model represents the middle flange structure, "12" represents the inner diameter of 12mm, and "UU" represents the open seal design at both ends. The flange is located in the middle of the bearing for easy installation and fixation, suitable for scenarios that require symmetrical support.

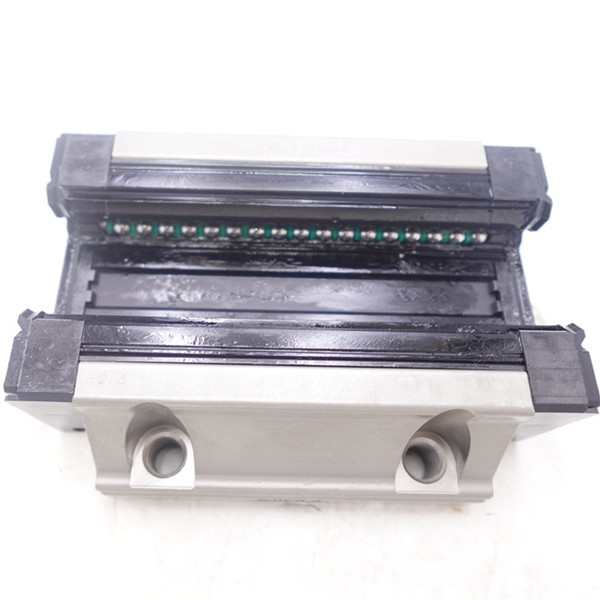

SHS35C adopts a four column steel ball circulation design, providing high rigidity and multi-directional load capacity. Lightweight: Compared to heavy-duty rails such as the HGH series, the SHS35C is more suitable for medium to high-speed scenarios. Suitable for high-speed handling, inspection equipment, etc.

KH2030PP is a stamping outer ring type linear motion sliding ball bearing.Belonging to the KH series standard model.Widely used in automation equipment, precision instruments and other scenarios that require low friction linear motion. Low friction: Steel ball circulation design, suitable for high-speed movement. The naming convention for its model is:
KH: Stamping outer ring linear bearing series code;
20: Inner diameter 20mm;
30: Outer diameter 30mm;
PP: Two ends with dust covers (sealed design)
