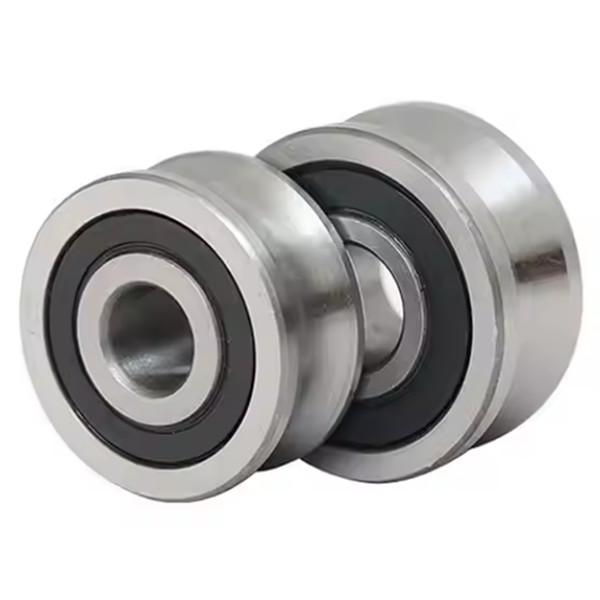

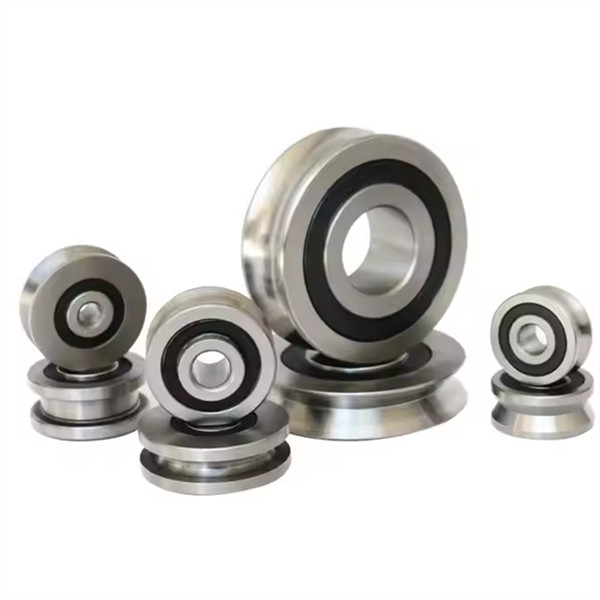

V track roller bearing is high quality bearing

The outer ring of v track roller bearing adopts a full-fill cylindrical roller bearing with a thick outer ring wall.
The v track roller bearing is a sealed structure filled with grease to provide long-term effective lubrication, and users can avoid lubrication. For harsh working conditions, a channel for adding grease can be designed to increase the service life of the bearing. Improper methods can also cause the roller bearing to heat up.
Installation of v track roller bearing:

1) Clean the v track roller bearing with kerosene, press it into the bearing seat, fill the roller of the outer ring of the bearing with Shell No. 3 lithium grease to two-thirds full, apply it evenly with clean hands, install the bearing cover, and tighten the bearing cover with the fastening bolts coated with bolt anti-loosening glue;
2) The v track roller bearing is a cylindrical roller bearing with a separable inner and outer sleeve. The inner sleeve of the bearing should be installed on the rotating shaft and in place;

3) Install the v track roller bearing seat on the casing. If there is a grease injection hole, it must be aligned. Tighten the v track roller bearing seat with the fastening bolts coated with bolt anti-loosening glue;
4) The inner and outer eccentric blocks are installed on the rotating shaft and in place. If there is a shaft key, the shaft key should be installed in the keyway and then the outer eccentric block should be installed. The shaft is installed on the rotating shaft with a retaining ring;
5) Tighten the eccentric block fastening bolts, turn the adjustable eccentric block to the angle position before removal and tighten its fastening bolts.
6) Fasten the protective covers at both ends of the upper vibration motor with screws.
If you need v track roller bearing or need any other bearings, please feel free to contact me!
