6003 Ceramic Bearing Types ans Application

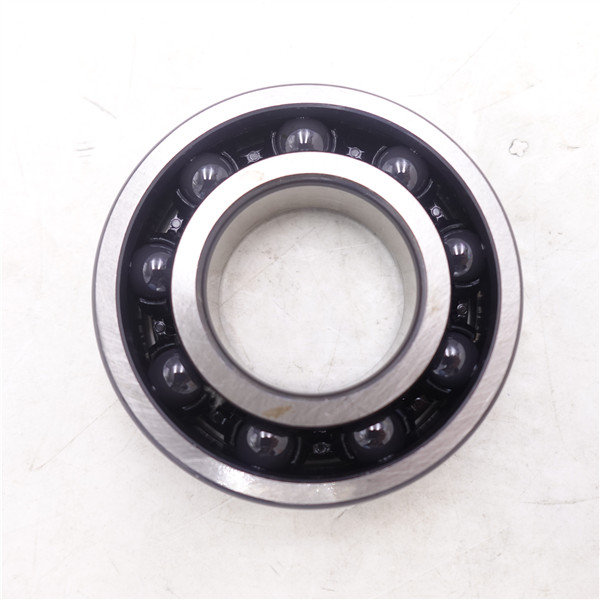

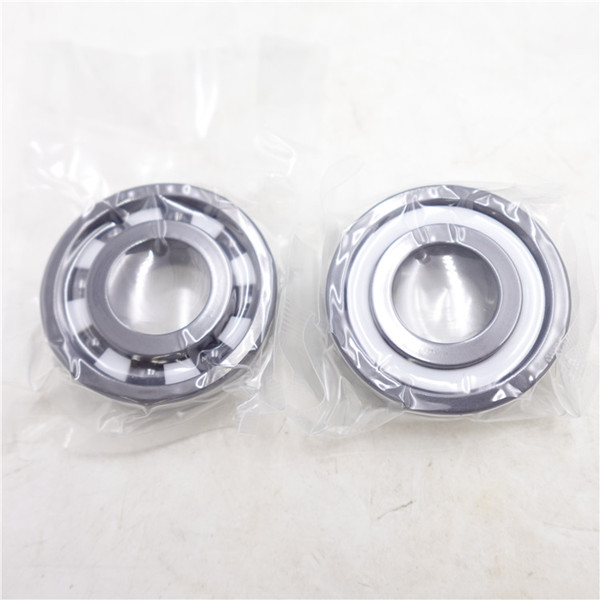

6003 ceramic bearing are mechanical bearings made of ceramic materials.Such as zirconia, silicon nitride, and silicon carbide. It is mainly divided into two categories: "full ceramic bearings" with ceramic rings and rolling elements.And "hybrid ceramic bearings" with only ceramic rolling elements. This type of bearing has excellent characteristics such as high and low temperature resistance.Corrosion resistance.Wear resistance.Non-magnetic insulation.And self-lubricating.And can adapt to extreme working conditions such as high speed, high temperature, and strong corrosion. Its manufacturing accuracy can reach P4 to UP level.And it is widely used in high-tech fields such as aerospace.Precision machine tools.Wind power generation.Medical equipment.And new energy vehicles. According to the material system.It is mainly divided into oxide ceramic bearings (such as zirconia ZrO2, alumina Al2O3) and non oxide ceramic bearings (such as silicon nitride Si3N4, silicon carbide SiC). Silicon nitride is currently the most widely used standard material for ceramic ball bearings.

  Oxide 6003 ceramic bearing (such as zirconia, alumina, etc.) have simple production processes.Good mechanical properties.And strong chemical corrosion resistance.But high-temperature creep is a disadvantage. Non oxide 6003 ceramic bearing (such as silicon nitride, silicon carbide, etc.) have characteristics such as ultra-high hardness.Strong creep resistance.And high modulus.Gradually becoming key materials.But the sintering conditions are harsh.The processing of ceramic bearing rings mainly involves precision grinding.And the quality of groove processing directly affects the rotational accuracy.Surface wear performance.Load-bearing capacity, vibration, and noise performance of the bearing. The standard retainer material is usually engineering plastics such as polytetrafluoroethylene (PTFE) and polyetheretherketone (PEEK), and ceramic materials can also be used under specific working conditions.

Silicon nitride 6003 ceramic bearing are currently the mainstream choice for high-performance applications.Widely used in high-speed machine tools, new energy vehicle motors, wind power and other fields. Silicon carbide ceramic bearings are suitable for higher temperatures and more demanding corrosive environments.
