Do you know application for 605 zz bearing?

105 Published by admin Dec 03,2019

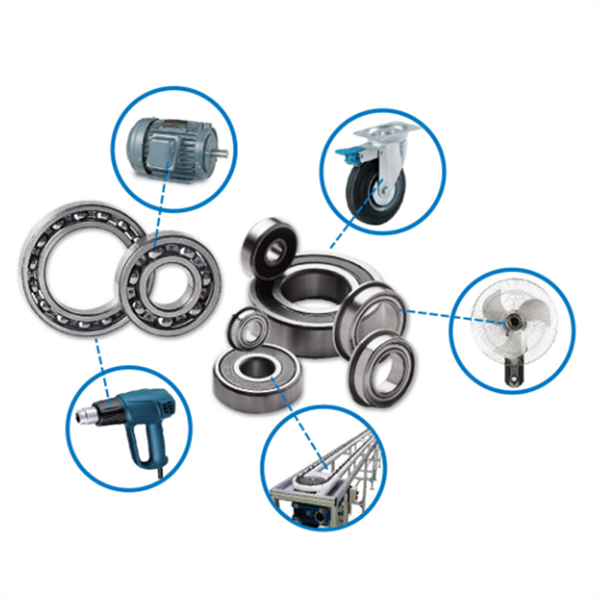

605 zz bearing belongs to miniature deep groove ball bearing.605 zz is suitable for high speed or even extremely high speed operation, and very durable, do not need frequent maintenance.605 zz bearing has small friction coefficient, high limit speed, diverse size range and form, and is used in precision instruments, low-noise motors, automobiles, motorcycles and general machinery industries, etc. It is the most widely used type of bearings in the machinery industry.Mainly bear radial load, can also bear a certain amount of axial load.
Edit dimension parameters of 605ZZ bearing
Series: 605 zz miniature deep groove ball bearings

original 605 zz
Model: 605 zz
605 zz Inside diameter: 5
605 zz Outer diameter: 14
Thickness: 5.0
Overall dimension (mm) B1:5.0
Overall dimension (mm) r
Min: 0.20
Dimension (mm) r1 minimum chamfer: 0.20
Cr rated dynamic load (N) : 1330
Cr rated static load (N) : 505
Cr rated dynamic load (kg) : 135
Cr rated static load (kg) : 52
Limit speed
Open Z·ZZD dust cover: 40000
Limit speed D·DD seal ring: 38000
Limit speed Open type Z dust cover: 50
Installation size (mm) a. minimum: 06.6
Installation size (mm) db maximum: 06.9
Installation size (mm) a maximum: 12.4

605 zz bearing
Installation size (mm) : 12.2
Installation size (mm) a maximum: 0.20
Installation size (mm) b maximum: 0.20
Mass weight
Open: 03.54
Mass weight
Shielded dust cover: 03.48
605ZZ bearing purpose edit

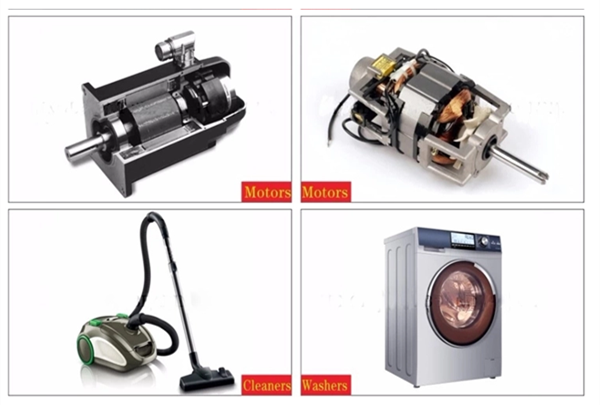

605 zz can be used: magnetizing machine, freezer, welding machine, furnace, planer milling machine, pile machinery, diaphragm pump, polishing equipment, molding machine, drainage and irrigation machinery, reaction kettle, universal printer, electronic, vulcanizing machine, plastic machine accessories, Copier stepper motor, speed reducer, rotary encoder, testing equipment, medical equipment,video recorder magnetic drum, copying lathe, plate rolling machine, automatic saw/milling/drilling machine, plasma cutting machine, drilling and milling machine, woodworking mortising machine, 605 zz is widely used.
If you need 605 zz bearing or need any other bearings, please also contact me!
Contact: Leon
Email: nsk@zyslbearing.com
Skype: lh19881023
MP/Whatsapp: +8615098916271
