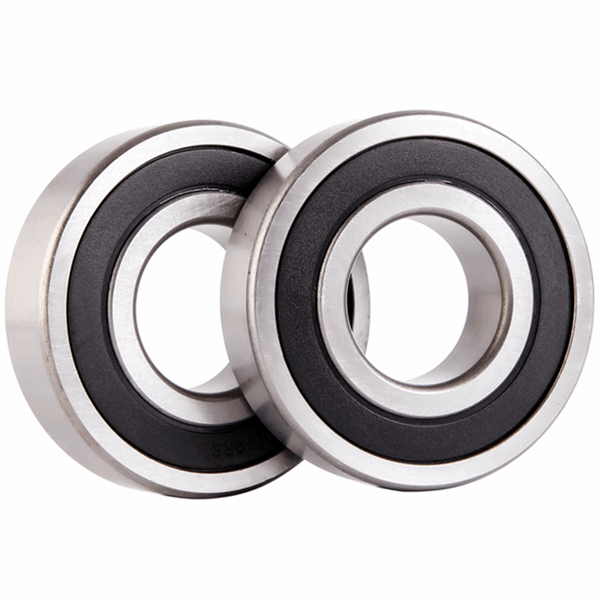

6211 c3 bearing is a deep groove ball type bearing

19 Published by admin Jul 29,2020

The 6211 c3 bearing is a deep groove ball type bearing.
6211 c3 bearing size parameters
Inside diameter: 55 mm
Outer diameter: 100 mm
Thickness: 21 mm
Application for 6211 c3 bearing:
6211 c3 bearings can be used for gearboxes, instruments and meters, electrical machines, household appliances, internal combustion engines, traffic vehicles, agricultural machinery, construction machinery, construction machinery, roller roller skates, yo-yo ball, etc
6211 c3 bearing installation method: 6211 c3
Heating cooperates: through heating 6211 bearing or bearing seat.Installation method is a kind of common and energy saving. This method is suitable for interference quantity larger the installation of the bearing, the bearing before hot charging type or separable 6211 c3 bearing ring into the fuel tank even heat 80-100 ℃, and then loaded on the shaft, as soon as possible out of the oil to prevent inner ring after cooling end face and the shoulder joint is not tight, to axial bearing cooling can then tighten.6211 bearing outer ring and light metal bearing seat tight fit, by heating the hot charging method of the bearing, can avoid the mating surface scratch.6211 c3
Heating tank with bearing and should be at a certain distance from the bottom of a mesh, or hanging hooks in the bearings, bearing on the bottom, in case of heavy impurities into the bearing or uneven heating, fuel tank must have a thermometer, strictly control the oil temperature shall not exceed 100 ℃, in order to prevent the tempering effect, reduce the hardness of the ring.
The structure of 6211 c3 bearing is simple, and compared with other types, it is easy to achieve higher manufacturing precision, so 6211 bearing is convenient for series mass production, and the manufacturing cost is lower, so it is widely used.Deep groove ball bearing in addition to the basic type, there are various variants of the structure.
If you need 6211 c3 bearing or need any other bearings, please also contact me!
