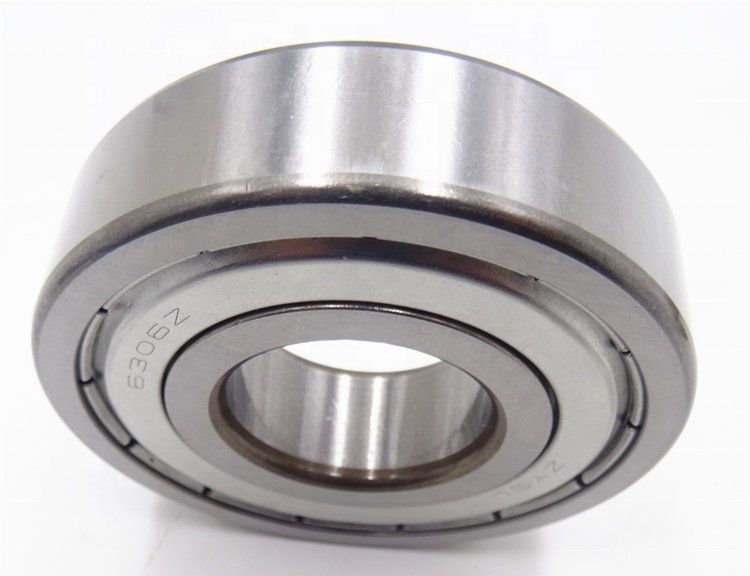

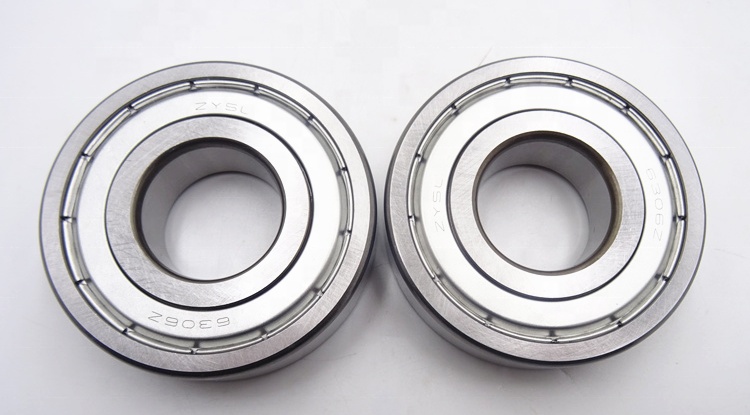

The Versatile and Reliable Bearing 6306 2Z C3: A Cornerstone of Industrial Machinery

10 Published by admin May 12,2026

In the realm of industrial machinery, where precision, durability, and efficiency are paramount, the bearing 6306 2z c3 stands out as a widely used and indispensable component. As a single-row deep groove ball bearing, it combines robust design, versatile performance, and enhanced adaptability, making it a preferred choice across numerous industrial sectors. This article delves into the key features, specifications, applications, and advantages of the bearing 6306 2z c3, shedding light on why it has become a cornerstone of modern mechanical systems.

Understanding the Nomenclature: What Does bearing 6306 2z c3 Mean?

To fully grasp the functionality of the bearing 6306 2z c3, it is essential to decode its naming convention, which provides critical information about its design and performance characteristics:

6306: This core designation identifies the bearing’s size and type. The first digit “6” indicates it is a deep groove ball bearing, the most common type of rolling bearing. The second digit “3” denotes the series (medium series), and the last two digits “06” correspond to the bore diameter—calculated as 06 × 5 = 30 mm, a standard metric size widely compatible with industrial shafts.

2Z: This suffix specifies the bearing’s sealing configuration. “Z” stands for a non-contact metal shield on one side, and “2Z” means shields are fitted on both sides. These metal shields act as a barrier against dust, debris, and moisture, preventing contaminants from entering the bearing and retaining lubricant, thus extending service life and reducing maintenance needs.

C3: This indicates the radial internal clearance, a critical parameter that refers to the gap between the inner ring, outer ring, and rolling elements. C3 clearance is larger than the standard (CN) clearance, allowing for thermal expansion during high-speed operation, accommodating minor shaft misalignment, and reducing friction and vibration under varying temperature conditions.

Key Specifications and Design Features

The bearing 6306 2z c3 is engineered with precision to meet the demands of industrial applications, boasting consistent specifications that ensure reliable performance. Below are its core technical parameters, compiled from industry standards and manufacturer data:

Dimensions: Bore diameter (d) = 30 mm, outer diameter (D) = 72 mm, width (B) = 19 mm. These dimensions make it a compact yet robust component, suitable for installation in space-constrained machinery.

Load Capacity: Basic dynamic load rating (C) is approximately 29.6 kN, and the basic static load rating (C0) is 16 kN. This enables the bearing to handle both radial loads (the primary load it is designed for) and axial loads in both directions, making it versatile for mixed-load applications.

Rotational Speed: The limiting speed (under grease lubrication) is 11,000 r/min, while the reference speed reaches 20,000 r/min. This high-speed capability makes it ideal for applications requiring rapid rotation, such as electric motors and fans.

Material and Construction: Typically constructed from high-quality bearing steel (often 52100 chrome steel), the bearing offers excellent hardness, wear resistance, and fatigue strength. The raceways are precision-machined to ensure smooth rolling of the steel balls, minimizing friction and wear. The cage is made of sheet metal, providing lightweight yet sturdy support for the rolling elements.

Lubrication: Factory-filled with grease, the bearing 6306 2z c3 is lubricated for life in most applications, eliminating the need for frequent relubrication. This low-maintenance feature is particularly valuable in hard-to-reach or dusty environments.

Applications Across Industrial Sectors

The versatility, durability, and adaptability of the bearing 6306 2z c3 make it suitable for a wide range of industrial applications. Its sealed design and C3 clearance make it especially well-suited for environments with dust, moisture, or temperature fluctuations. Key applications include:

Electric Motors: One of the most common uses, the bearing 6306 2z c3 supports the rotor’s smooth rotation, handling radial and axial loads while withstanding high speeds. Its C3 clearance accommodates thermal expansion during extended operation, ensuring efficiency and longevity.

Pumps and Compressors: In fluid handling equipment, the bearing resists contamination from fluids and debris, thanks to its 2Z shields, and handles the dynamic loads generated by fluid pressure. It is widely used in centrifugal pumps, air compressors, and hydraulic systems.

Mechanical Transmission Systems: Used in gearboxes, conveyors, and belt drives, the bearing ensures smooth power transmission, reducing friction and vibration. Its compact size allows for integration into tight spaces within transmission assemblies.

Automotive and Aerospace: In automotive applications, it is found in alternators, wheel hubs, and auxiliary systems, where durability and reliability are critical. In aerospace, it is used in small aircraft components requiring precision and high-speed performance.

General Industrial Machinery: From fans and blowers to machine tools and construction equipment, the 6306 2Z C3 is a versatile solution for any application requiring low friction, high load capacity, and minimal maintenance.
