What is bearing rod end?

Bearing rod end is sliding bearings with a special structure. Its structure is simpler than rolling bearings. It is mainly composed of an outer ring with an inner spherical surface, which can bear a large load. According to the inner ring with an outer spherical surface and its different types and structures, it can withstand radial loads. , Axial load or combined load in both radial and axial directions. It is generally used for low-speed swing motion (that is, angular movement, and it can also perform tilting motion within a certain angle range (that is, self-aligning motion), because the sliding surface is a spherical motion), and the misalignment between the support shaft and the shaft housing hole When it is larger, it can still work normally.

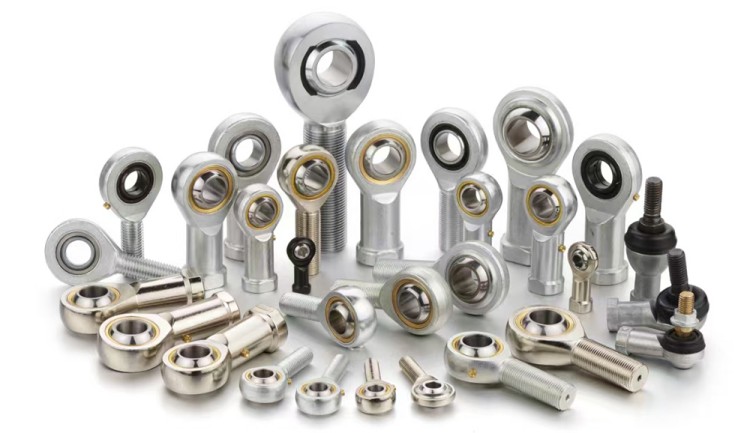

Bearing rod end consist of an eye-shaped head with integral shank that forms a housing for a spherical plain bearing. They are used primarily on the ends of hydraulic or pneumatic pistons to join the cylinder to an associated component.

We supply a wide assortment of standard rod ends with different thread and shank designs at the rod end housing, making them easy to install. The various sliding contact surface combinations of the bearings make the bearing rod ends suitable for the operating conditions of many applications.

The bearing rod end housings are available with the following shank designs:

female or male thread (standard threaded shanks)
slotted shank with clamping screws and female thread
welding shank with cylindrical or rectangular section
The integral bearings are available with the following sliding contact surface combinations:
steel/steel
steel/bronze
