How many cam follower bearing types do you know?

116 Published by admin May 12,2023

Cam follower bearing  (stud-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. cam follower bearing types are based on either needle or cylindrical  roller bearings. Instead of an inner ring, they have a threaded solid stud (pin). We supplies cam follower bearing types different. They are available in several cam follower bearing types and variants:

With or without a cage cam follower bearing types

With different stud designs:
A concentric seat
An eccentric collar
With several sealing solutions
With the outer ring running surface profile:
Crowned as standard
Cylindrical (flat)
In contrast to ball and roller bearings, where the cam follower bearing types size refers to the bore diameter d, for cam followers the size refers to their outside diameter D.

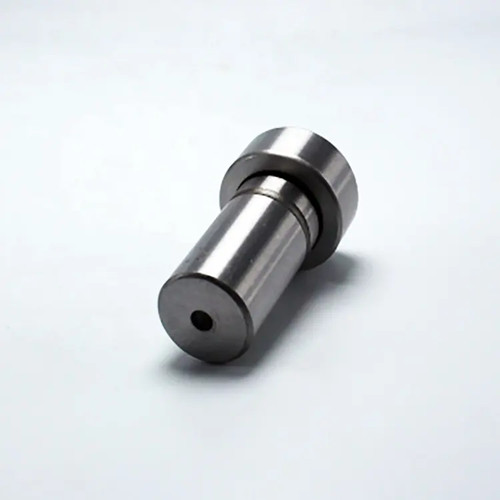

cam follower bearing types variety

cam follower bearing types

Threaded Track Rollers

Also known as cam followers, track rollers support loads while guiding and positioning work. Thread the stud directly into a component or secure with a nut for through-hole mounting.

Maintenance-Free Threaded Track Rollers

Because they never need to be relubricated, these rollers are a good choice for hard-to-reach places.

High-Load Threaded Track Rollers

With a double row of cylindrical roller bearings, these rollers provide the highest combination of speed and dynamic radial load ratings of any threaded track roller we offer.

Threaded Track Rollers with Adjustable Shoulder

Also known as eccentric track rollers, the shoulder adjusts up or down to align to your track, enabling uniform alignment among rollers in a system.

Ultra-Quiet Threaded Track Rollers

The soft rubber or plastic surface on these rollers creates less noise than the metal surfaces found on other track rollers.

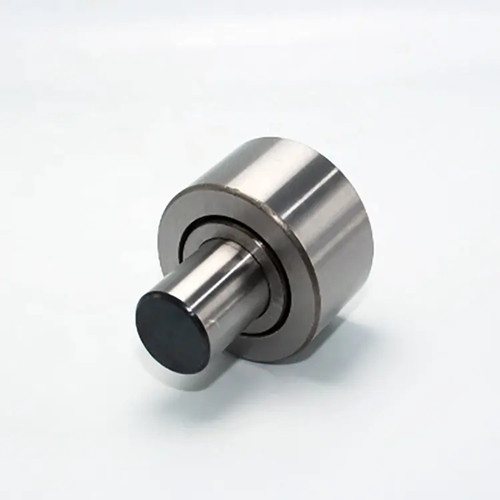

stock cam follower bearing types

Extreme-Temperature Threaded Track Rollers

Lubricated with graphite, these rollers can handle temperatures from -450° to 750° F—the widest temperature range of any track roller in our offering.

Thrust-Load-Rated Threaded Track Rollers

These rollers are rated to handle radial and thrust (top and side) loads simultaneously.

Thrust-Load-Rated Corrosion-Resistant Threaded Track Rollers

These rollers are rated to handle radial and thrust (top and side) loads simultaneously.

Corrosion-Resistant Threaded Track Rollers

These threaded track rollers are made of materials that prevent corrosion in wet environments.

Maintenance-Free Ultra-Corrosion-Resistant Threaded Track Rollers

With dry-running PTFE sleeve bearings, these rollers don’t require lubricant. They’re also fully submersible, nonsparking, and lightweight.

Shaft-Mount Track Rollers

Also known as yoke-style cam followers, these rollers have more mounting flexibility than threaded track rollers. They're typically mounted onto a shaft or clevis rod end.

High-Load Shaft-Mount Track Rollers

With a double row of cylindrical roller bearings, these rollers provide the highest combination of speed and dynamic radial load ratings of any shaft-mount track roller we offer.

Corrosion-Resistant Shaft-Mount Track Rollers

Made of 440C stainless steel, these shaft-mount track rollers resist corrosion in damp environments.

High-Speed Shaft-Mount Track Rollers

The outer ring is built to handle higher speeds than standard shaft-mount track rollers.

Thrust-Load-Rated Shaft-Mount Track Rollers

These rollers are rated to handle radial and thrust (top and side) loads simultaneously.

Shaft-Mount V-Groove Track Rollers

Also known as yoke-style cam followers, these rollers have more mounting flexibility than threaded track rollers. They're typically mounted onto a shaft or clevis rod end.

Threaded V-Groove Track Rollers

Thread the stud directly into a component or secure with a nut for through-hole mounting.

Threaded V-Groove Track Rollers with Adjustable Shoulder

Also known as eccentric track rollers, the shoulder adjusts up or down to align to your track, enabling uniform alignment among rollers in a system.

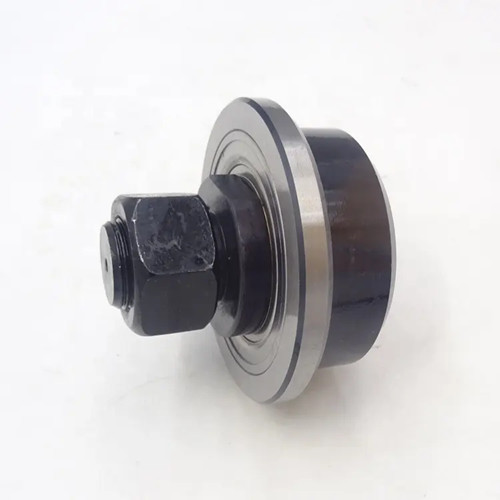

factory cam follower bearing types

Sanitary Shaft-Mount V-Groove Track Rollers

Support and guide loads on angle rails in food, pharmaceutical, and other sanitary environments. Also known as yoke-style cam followers, these track rollers offer more mounting flexibility than threaded alternatives and are typically mounted on shafts and clevis rod ends.

Sanitary Threaded V-Groove Track Rollers

Guide loads along angle rail tracks in food and pharmaceutical plants or other sanitary environments.

Angle Rails for V-Groove Track Rollers

Use these rails with any track rollers that have a 90° V-groove.

Flanged Threaded Track Rollers

Thread the stud directly into a component or secure with a nut for through-hole mounting.

Flanged Shaft-Mount Track Rollers

Shaft-mount track rollers have more mounting flexibility than threaded track rollers.

Double-Flanged Track Rollers

A dual-flange design provides guidance on both sides and helps these rollers stay on track.

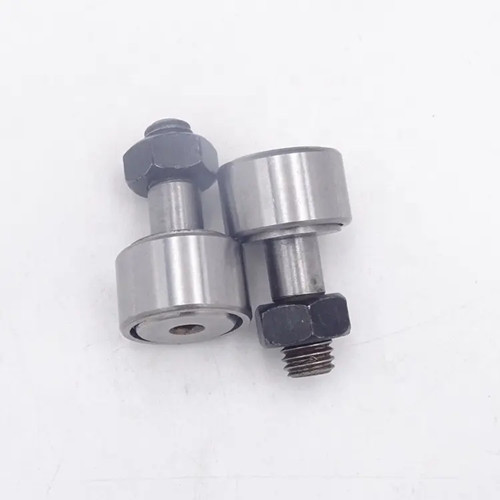

stock cam follower bearing types

Also have the other cam follower bearing types.

Track Rollers and Guide Rails:

Corrosion-Resistant Track Rollers and Guide Rails
Track Rollers and Guide Rails
Light Duty Track Rollers and Guide Rails

T-Slotted Framing Linear Bearings and Track Rollers
manufacturer cam follower bearing types
A lot of cam follower bearing types have stock hear.
If you need any brand bearings or any cam follower bearing types , please contact me!

Contact: Bella
Email/skype: skf@llhbearing.com
TEL/wechat: +8615318805907
Whatsapp:+8615315596312
