LLH best selling bearing–cylindrical roller bearing types

205 Published by admin Aug 21,2018

Jinan Maolei Bearing Co.,Ltd. is a bearing producer,we have different cylindrical roller bearing types.

Cylindrical roller bearings with inner or outer rings without baffles can be used as free end bearings because the inner and outer rings can move relative to the axial direction.One side of the inner and outer rings has double baffles and the other ring has a single baffle cylindrical roller bearing, which can bear a certain degree of axial load in one direction.Generally used steel plate stamping retainer, or copper alloy car body retainer.But some use polyamide to form the cage.The inner structure of cylindrical roller bearings adopts parallel arrangement of rollers, and the space retainer or isolation block is installed between rollers, which can prevent the inclination of rollers or friction between rollers and effectively prevent the increase of rotary torque.This is some introduction for different cylindrical roller bearing types.

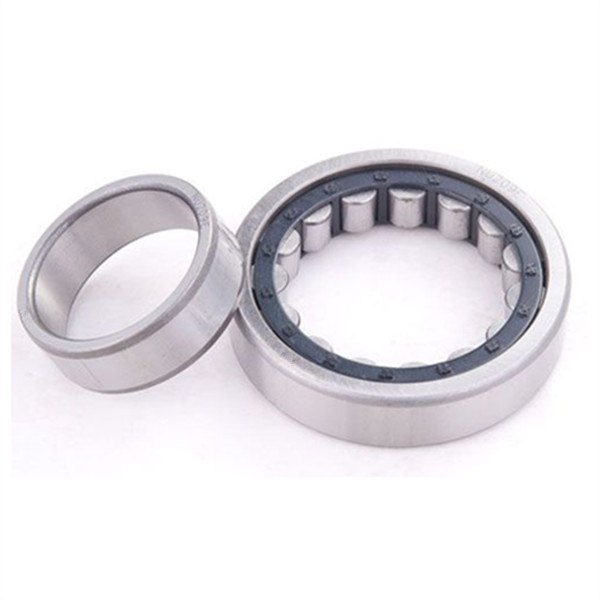

supply cylindrical roller bearing types

cylindrical roller bearing types include single row cylindrical roller bearings,double row cylindrical roller bearings and four row cylindrical roller bearings.The commonly used single row cylindrical roller bearings have the following forms: N、NU type,NJ、NF type,NUP、NFP type,NH(NJ+HJ) type.double row  cylindrical roller bearing types have the following forms:NN、NNU type,NNF type,four row cylindrical roller bearings  have the following forms:FC type,FCD type.

Product features for cylindrical roller bearing types:

The cylindrical roller is in line contact with the raceway and has large radial load capacity.It is suitable for bearing heavy load and impact load as well as high-speed rotation.Cylindrical roller bearing raceway and rolling body are geometrically shaped.After the improved design, the new structure design with high bearing capacity, baffle and roller end face not only improves the bearing axial bearing capacity, but also improves the lubrication conditions of the contact area between roller end face and baffle, and improves the bearing performance.

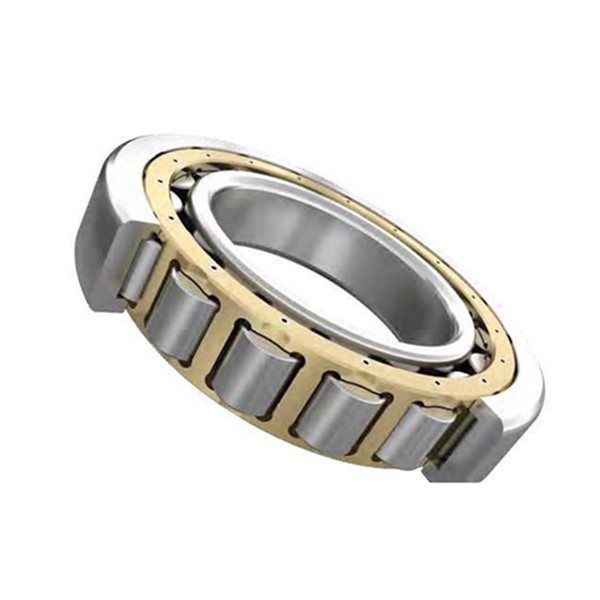

high quality cylindrical roller bearing types

Application for cylindrical roller bearing types:

Large and medium-sized motor, locomotive, machine spindle, internal combustion engine, generator, gas turbine, reducer, rolling mill, vibrating screen and hoisting and transporting machinery, etc.

If you need  cylindrical roller bearing types bearings or any models of bearings, please contact me!

Contact: Leon
Email: nsk@zyslbearing.com
Skype: lh19881023
MP/Whatsapp: +8615098916271
Wechat:leon15098916271
