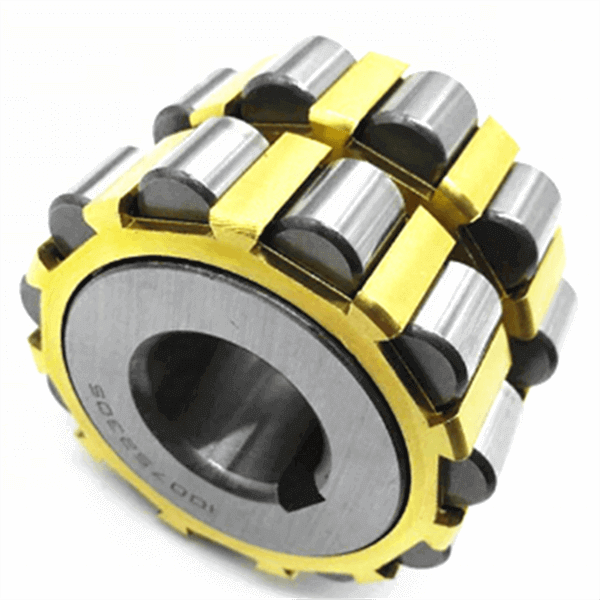

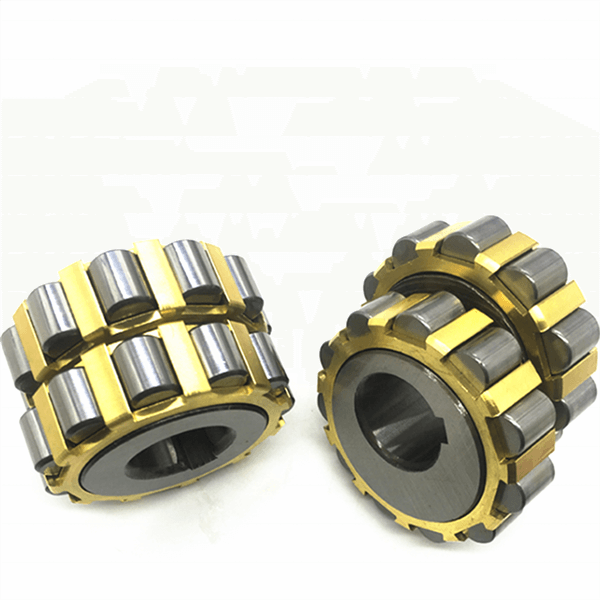

Eccentric rollers bearing processing method

Processing method for eccentric rollers bearing:
Eccentric rollers bearings require both ends of the B, C eccentric outer circle and A reference circle eccentric direction is the same, and the eccentric rollers size is different, generally within 5mm, the eccentric rollers error is less than 0.05mm.
First, all the outer circles of the A datum are processed, and the process chucks of 50mm long 25mm are left at both ends of the shaft. The chucks are required to be coaxial with the A datum and the step surface is perpendicular to the A datum.The chucks at both ends of the shaft are milling into flat 42H6, which is required to be symmetrical with the datum center of A and parallel at both ends.

Tooling production for eccentric rollers: two cans, the groove 42H7 is required to be symmetrical with the central hole B5, and the end face of the groove is perpendicular to the central hole.
The card can at both ends of the shaft, the eccentric direction of the card can should be consistent, through the groove of the card can and the flat shaft 42H7/ H6 with, control the direction of the eccentric;The eccentricity can be adjusted by adjusting the pressing screw on the card tank;Make the end face of the card tank and the step surface of the shaft pressed, to ensure that the center of the shaft and the center of the card tank parallel.
When the eccentric rollers shaft is machined, cut off both ends of the process chuck.

This machining method is simple, reliable, and avoids the tedious process of the original method (boring machine to make the center hole). It can be applied to the requirements of the same direction of multiple eccentric rollers shaft machining.
