Various Separation Flexible Bearing -Ball and Roller Structure

49 Published by admin Jan 19,2024

Separation type flexible bearing are composed of raceway rings, balls or rollers, and cage components, and can be combined with thin raceway rings (W) processed by stamping or thick raceway rings (WS) processed by cutting. Low installation and subsequent daily maintenance costs, convenient replacement, reduced downtime, and improved maintenance efficiency: bearings can be checked for operation at any time.

Flexible Bearing -Tapered roller bearing
  Both the inner and outer rings have tapered raceways. This type of bearing is divided into different structural types based on the number of rows of installed rollers, such as single row, double row, and four row tapered roller bearings. Single row tapered roller bearings can withstand radial loads and axial loads in a single direction.
  Mainly subjected to radial and axial combined loads. The bearing capacity depends on the raceway angle of the outer ring, and the larger the angle, the greater the bearing capacity. This type of bearing belongs to the separated type, and is divided into single row, double row, and four row tapered roller bearings based on the number of rolling elements in the bearing. The clearance of single row tapered roller bearings needs to be adjusted by the user during installation; The clearance of double row and four row tapered roller bearings has been given according to user requirements at the time of product delivery and does not require user adjustment.
Widely used in industries such as automobiles, rolling mills, mines, metallurgy, plastic machinery, etc.

flexible bearing taper

Flexible Bearing -Thrust roller bearing
  Used to withstand axial and radial combined loads, but the radial load shall not exceed 55% of the axial load. Compared with other thrust roller bearings, this type of bearing has a lower friction coefficient, higher rotational speed, and has centering performance.
  80000 thrust cylindrical roller bearings, 90000 thrust tapered roller bearings, and AXK thrust needle roller bearings can withstand unidirectional axial loads. They have much greater axial load capacity than thrust ball bearings, and have greater rigidity and occupy less axial space.
Suitable for low speed situations, used in heavy-duty machine tools, high-power marine gearboxes, oil drilling rigs, vertical motors and other machinery.

flexible bearing roller

Flexible Bearing -Thrust ball bearing
  Adopting a design that can withstand thrust loads during high-speed operation, it is composed of washer shaped rings with ball rolling raceways. Can withstand axial loads, but cannot withstand radial loads.
Divide into unidirectional thrust ball bearings and bidirectional thrust ball bearings according to the force situation.
  Only suitable for machinery that can withstand one axial load and has low rotational speed, such as crane hooks, vertical water pumps, vertical centrifuges, jacks, low-speed reducers, etc. The shaft ring, seat ring, and rolling element of the bearing are separate and can be installed and removed separately.

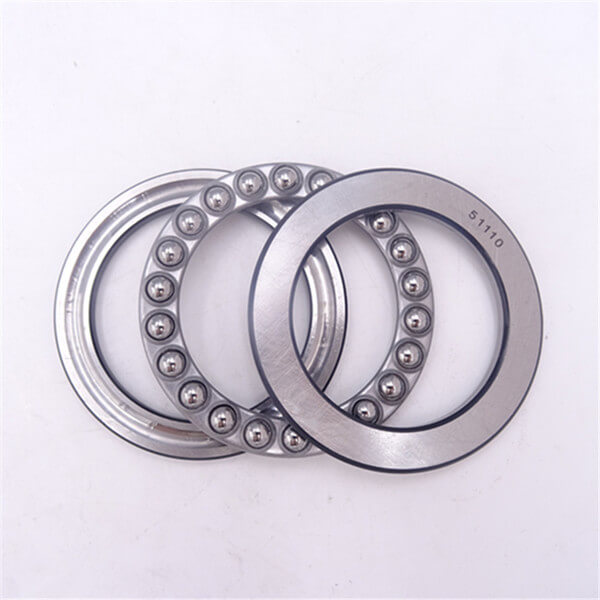

flexible bearing thrust
