HK1416 bearing Structural Design & Application Logic

204 Published by admin May 29,2026

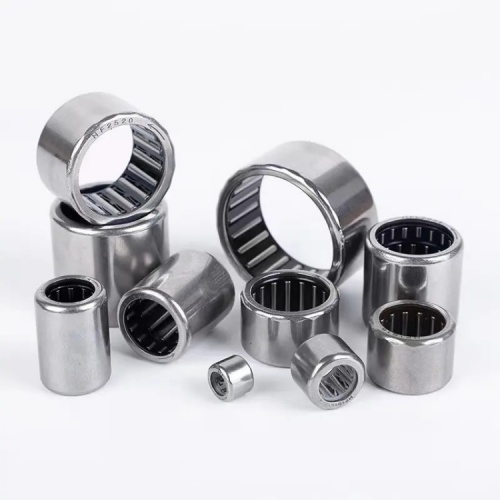

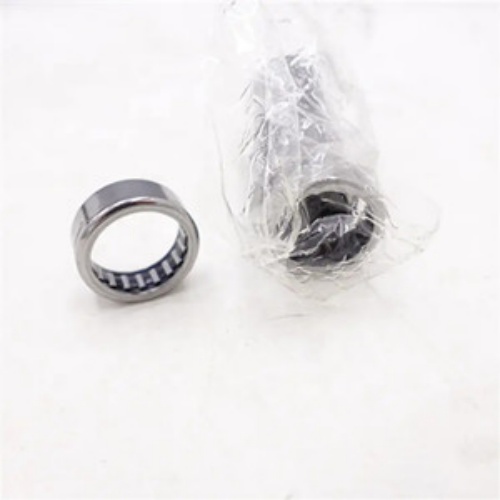

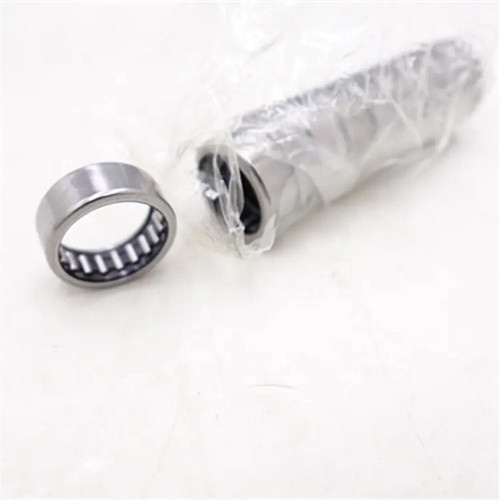

The HK1416 bearing is a standardized metric drawn cup needle roller bearing designed to handle high radial loads within highly constrained spaces. It is widely used in tight mechanical setups like gearboxes, small automotive components, transmissions, and power tools.

HK1416 bearing common Suffixes & Meaning

When ordering this bearing, you will frequently see extensions added to the base "HK1416" model number:HK1416 (Standard): Open ends on both sides, requiring a clean housing environment or external oiling system.HK1416-2RS: Equipped with lip seals on both sides to block dirt, retain grease, and protect against environmental debris.HK1416-ZEN / IKO TLA1416Z: Brand-specific nomenclature or minor design designations that interchange directly with standard dimensions.

HK1416 bearing Structural Design & Application Logic

- Drawn Cup Structure: It belongs to the shell-type needle roller bearing family. The outer ring is cold-formed from thin sheet steel and hardened. Because of this, the bearing is non-rigid and slightly out-of-round before installation.
- Housing Requirement: It relies entirely on a tight interference press-fit into a rigid housing bore (such as steel or cast iron) to force the thin outer cup into its correct, perfectly round shape and to set its operational radial internal clearance.
- Shaft Integration: To minimize the radial footprint, it is designed to run directly on the machine's shaft. The shaft must be ground and induction-hardened to 58–64 HRC. If the shaft cannot be hardened, it must be paired with an inner ring companion piece like the IR10x14x16.

HK1416 bearing installation note:

Do not directly strike the thin-walled outer cup with a hammer. Installation force: The assembly spindle installed on the press must be used to smoothly press it into the housing hole to prevent the housing from tilting or deforming.

HK1416 bearing Key Uses and Application

Automotive & Transmissions: Frequently used in manual transmissions, gearbox layshafts, first motion shafts, and universal joints.Power Tools & Small Engines: Acts as an ideal component in two-cycle engines, compressors, and heavy-duty power equipment.Industrial & Agricultural Machinery: Utilized in robotics, textile manufacturing equipment, mining, and agricultural gear systems
