Do you know the types of linear bearing rail system?

77 Published by Dec 27,2019

linear bearing rail system of H series standard type
Flange type H-F
linear bearing rail system -The flange type of the slider has been tapped and can be mounted in both directions.

-High rigidity, high load, four directions and other load types.

linear bearing rail system of H series standard type
Flange type H-FL
H-FL linear bearing rail system -The same cross-sectional shape as the H-F series makes the full length of the linear motion slider longer and increases the rated load type.

-High rigidity, high load, four directions and other load types.

linear bearing rail system of H series standard type

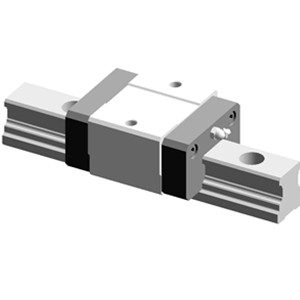

Compact H-R
H-R linear guide -Ultra-thin, compact type that has been tapped on the slider to minimize the width (W) of the linear motion slider

-High rigidity, high load, four directions and other load types.

linear bearing rail system of H series standard type
Compact H-RL
linear bearing rail -It has the same cross-sectional shape as the H-R series, which lengthens the total length (L1) of the linear motion slider and increases the rated load.

-High rigidity, high load, four directions and other load types.

linear bearing rail system of H series steel ball cage type

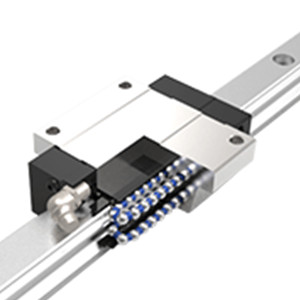

Flange type H-SF
H-SF guide -The flange type of the slider has been tapped and can be mounted in both directions.

-High rigidity, high load, four directions and other load types.

linear bearing rail system of H series steel ball cage type

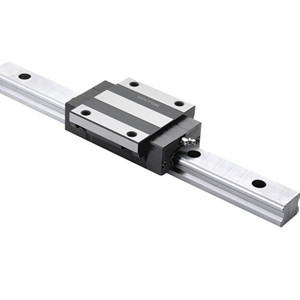

Flange type H-SFL
H-SFL -The same cross-sectional shape as the H-F series makes the full length of the linear motion slider longer and increases the rated load type.

-High rigidity, high load, four directions and other load types.

linear bearing rail system of H series steel ball cage type
Compact H-SR
linear guide -Ultra-thin, compact type that has been tapped on the slider to minimize the width (W) of the linear motion slider

-High rigidity, high load, four directions and other load types.

linear bearing rail system of H series steel ball cage type
Compact H-SRL
linear bearing rail system -It has the same cross-sectional shape as the H-R series, which lengthens the total length (L1) of the linear motion slider and increases the rated load.

-High rigidity, high load, four directions and other load types.

linear bearing rail system of S series standard type

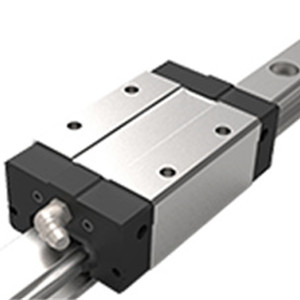

Compact S-C

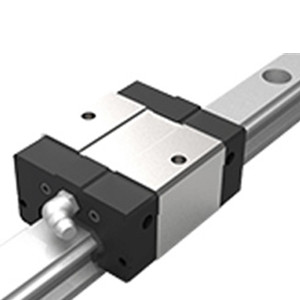

S-C linear rail -The slider has been tapped on the slider to minimize the width, height, and length of the slider.

-Four-row circular structure, four-direction equal load type with ball contact angle of 45 °.

 linear bearing rail system of S series standard type
Compact S-R
 bearing rail system  -Ultra-thin and compact with the same cross-sectional shape as the S-C series, minimizing the width and height of linear motion sliders.

-Four-row circular structure, four-direction equal load type with ball contact angle of 45 °.

 linear bearing rail system of S series standard type
Flange type S-CF
 S-C  -The slider flange has been tapped to minimize the width, height, and length of the slider.

-Four-row circular structure, four-direction equal load type with ball contact angle of 45 °.

linear bearing rail system of S series standard type
Flange type S-F

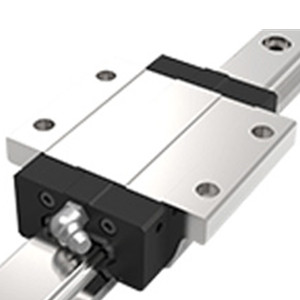

 S-CF linear bearing rail  -Slim and compact with the same cross-sectional shape as the S-CF series, minimizing the width and height of the slider.

-Four-row circular structure, four-direction equal load type with ball contact angle of 45 °.

linear bearing rail system of S series steel ball cage type
Compact S-SC

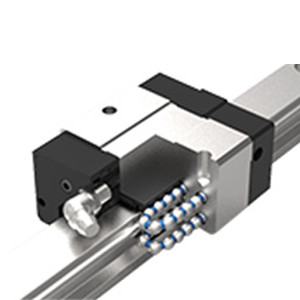

 S-SC RAIL  -The slider has been tapped on the slider to minimize the width, height, and length of the slider.

-Four-row circular structure, four-direction equal load type with ball contact angle of 45 °.

 linear bearing rail system of S series steel ball cage type

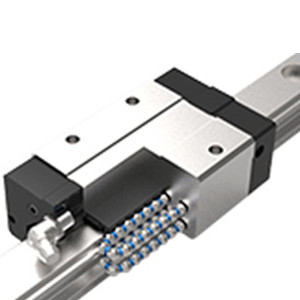

Compact S-SR
 bearing rail system  -Ultra-thin and compact with the same cross-sectional shape as the S-C series, minimizing the width and height of linear motion sliders.

-Four-row circular structure, four-direction equal load type with ball contact angle of 45 °.

 linear bearing rail system of S series steel ball cage type
Flange type S-SCF

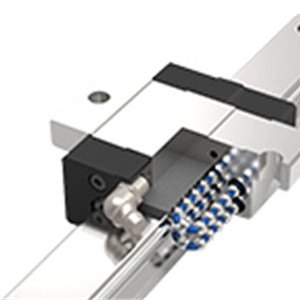

 S-SCF rail  -The slider has been tapped on the slider to minimize the width, height, and length of the slider.

-Four-row circular structure, four-direction equal load type with ball contact angle of 45 °.

 linear bearing rail system of S series steel ball cage type

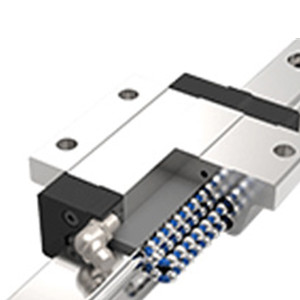

Flange type S-SF
 S-SF guide  -Slim and compact with the same cross-sectional shape as the S-CF series, minimizing the width and height of the slider.

-Four-row circular structure, four-direction equal load type with ball contact angle of 45 °.

linear bearing rail system of M / MB series compact

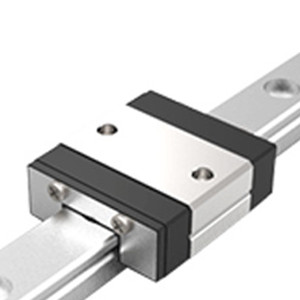

M-C
 M-C linear guide  -The same cross-sectional shape as the M-N series shortens the total length of the linear motion slider and makes it compact.
