NU203 is a high-performance single-row cylindrical roller bearing

201 Published by admin May 26,2026

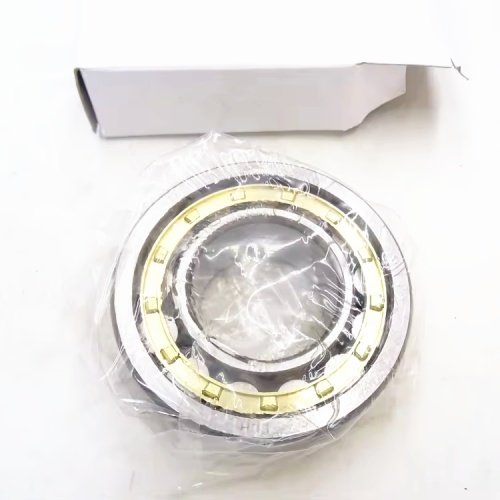

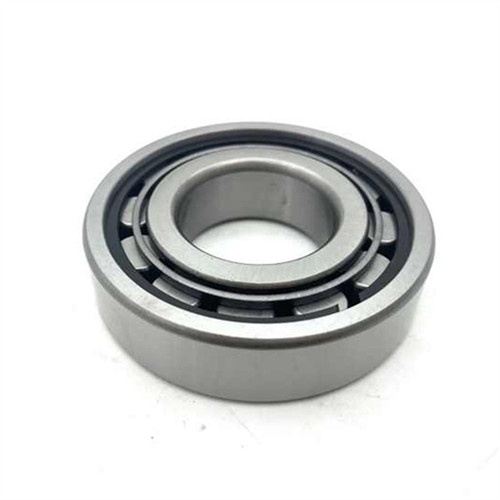

The NU203 is a high-performance, single-row cylindrical roller bearing designed to support heavy radial loads at high operating speeds. It features an NU design, meaning the outer ring has two fixed ribs (flanges) while the inner ring has no ribs, making the inner ring completely removable from either side.

Common Suffixes & MeaningsWhen buying an NU203, you will often see trailing letters indicating specific internal components:ECP (e.g., NU203 ECP): Optimized internal design (E) and a glass-fiber reinforced polyamide (plastic) cage (CP).TVP2 (e.g., NU203 E-TVP2): designation for an increased capacity design with a molded polyamide cage.M or MA: Solid brass cage, used for extreme temperatures or highly vibrating environments.C3 (e.g., NU203 ECP/C3): Radial internal clearance greater than normal, ideal for high-heat applications where components expand.

Because the NU203 has a separable inner ring, installation requires care to avoid scraping the rollers.

Step 1: Dismounting Pullers: Use a hydraulic or mechanical puller to remove the inner ring from the shaft.Heat: Apply local induction heating to the inner ring if it is tightly pressed.Inspect: Check the shaft seat and housing bore for scores or wear.

Step 2: Preparation Clean: Remove old grease, rust, and debris from the shaft and housing.Measure: Verify shaft and housing tolerances using a micrometer to ensure a proper fit.Lubricate Seat: Apply a thin layer of light oil to the shaft to ease mounting.

Step 3: Mounting the Inner RingHeating: Heat the inner ring to 80°C–110°C (176°F–230°F) using an induction heater.Never Use Flame: Do not use a blowtorch; it alters the steel properties.Slide On: Push the heated ring quickly onto the shaft against the shoulder. Hold it until it cools and shrinks onto the shaft.

Step 4: Mounting the Outer Ring & AssemblyPress Fit: Press the outer ring into the housing using a mounting sleeve that matches the outer ring face.Alignment: Align the shaft and housing perfectly straight.Slide Together: Gently guide the inner ring (on the shaft) into the outer ring (in the housing). Do not force it, or the rollers will scratch the raceways.

NU203 Applications
Due to its ability to handle shaft expansion without binding, it is commonly found in industrial electric motors, gearboxes, pumps, and automotive transmissions.
