PHS Rod End Bearing Feature and Application

9 Published by admin Jul 13,2026

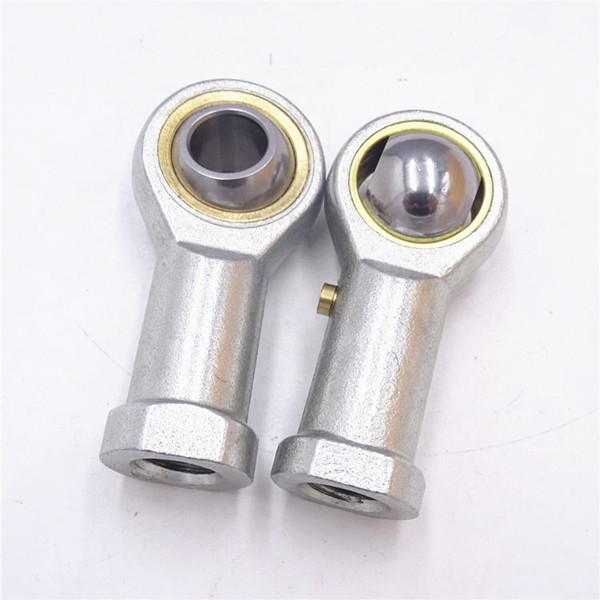

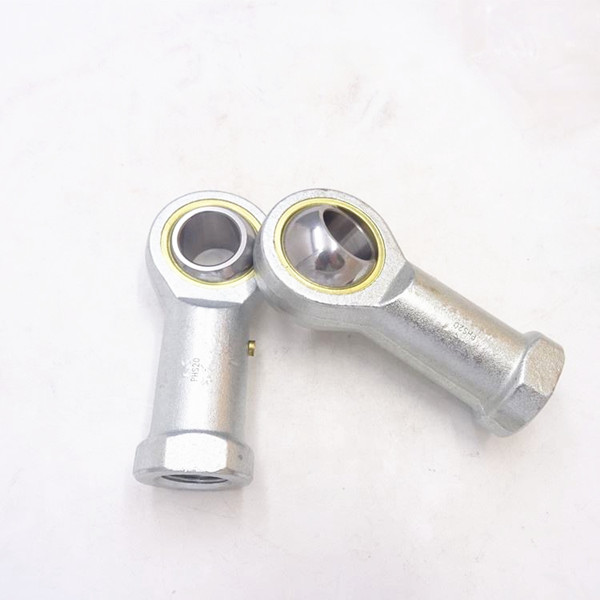

The phs rod end bearing consists of an integral rod handle with a perforated end.Forming the rod end seat of a spherical sliding bearing. Joint bearings are spherical sliding bearings.And the basic type consists of an inner and outer ring with a spherical sliding spherical contact surface. Its core working principle is based on a unique structural design.Mainly composed of an inner ring with an outer spherical surface and an outer ring with an inner spherical surface. This design allows the bearing to freely rotate and swing at any angle.And can withstand large loads. According to their different types and structures.They can withstand radial loads, axial loads.Or combined loads of both radial and axial loads. Due to the composite material embedded on the outer spherical surface of the inner ring.The bearing can generate self lubrication during operation. The composite material embedded on the inner and outer spherical surfaces endows the bearing with self-lubricating properties. It is generally used for low-speed swinging movements and can also perform tilting movements within a certain angle range. When the concentricity between the supporting shaft and the shaft housing hole is large, it can still work normally. Self lubricating joint support is applied in industries such as water conservancy and professional machinery. Because the spherical sliding contact area and inclination angle of joint bearings are large.And at the same time.Most joint bearings adopt special processing methods such as surface phosphating, galvanizing, chrome plating, or outer sliding surface lining, padding, spraying, etc. phs rod end bearing spherical

To achieve the longest service life of spherical sliding bearings and rod end joint bearings without premature failure.It is important to pay attention to installation techniques and maintain cleanliness. PHS rod end bearing should be removed from the packaging just one moment before installation to avoid contamination. Clean, lint free cloth should be used to wipe bearing components that have been soiled due to improper handling or damaged packaging. The sliding contact surface of spherical sliding bearings must be compatible to ensure good friction and wear characteristics. Any corrosion on the sliding surface will shorten the service life of the bearing.So the sliding surface cannot be cleaned or come into contact with solvents, cleaning agents, oils, or similar media.
