Bearing 21317 spherical roller bearing 21317E size 85x180x41mm


Product Specification:

  • Model 21317E
  • Size 85x180x41mm
  • Brand LLH or as your request
  • Original China or as your request
See Price

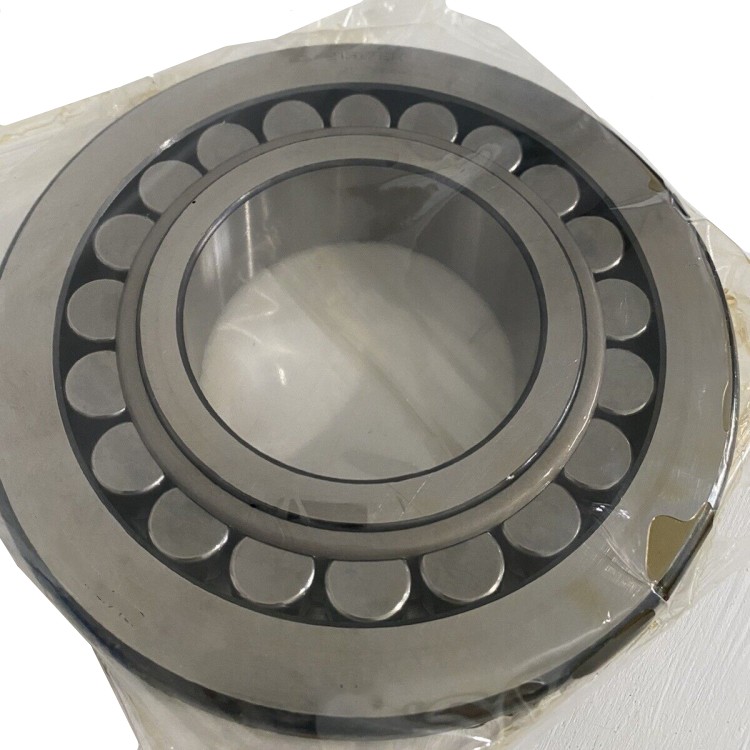

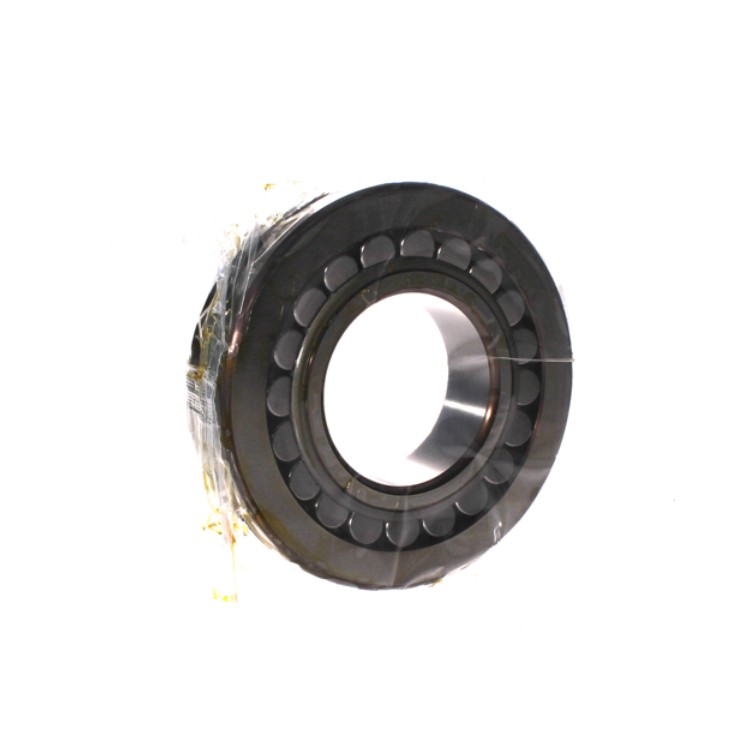

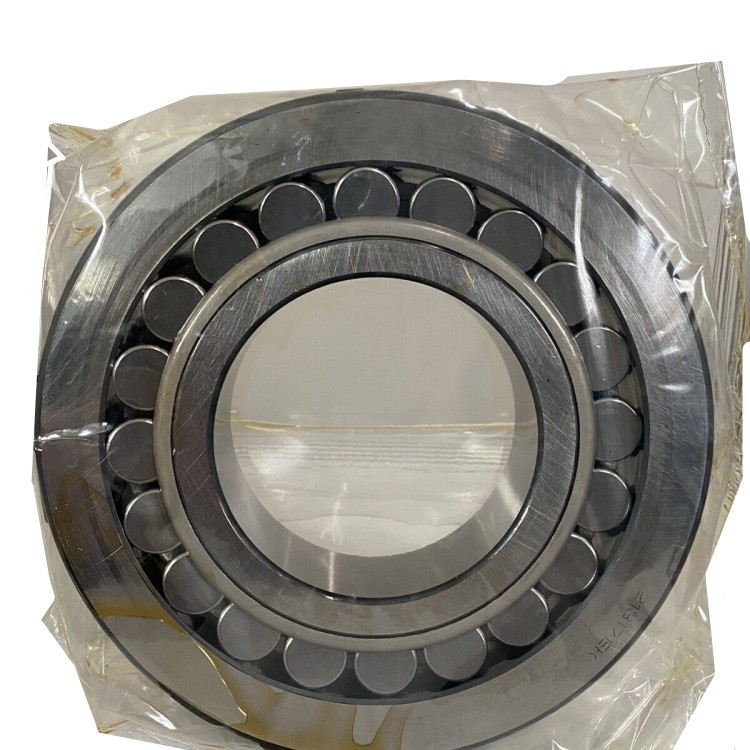

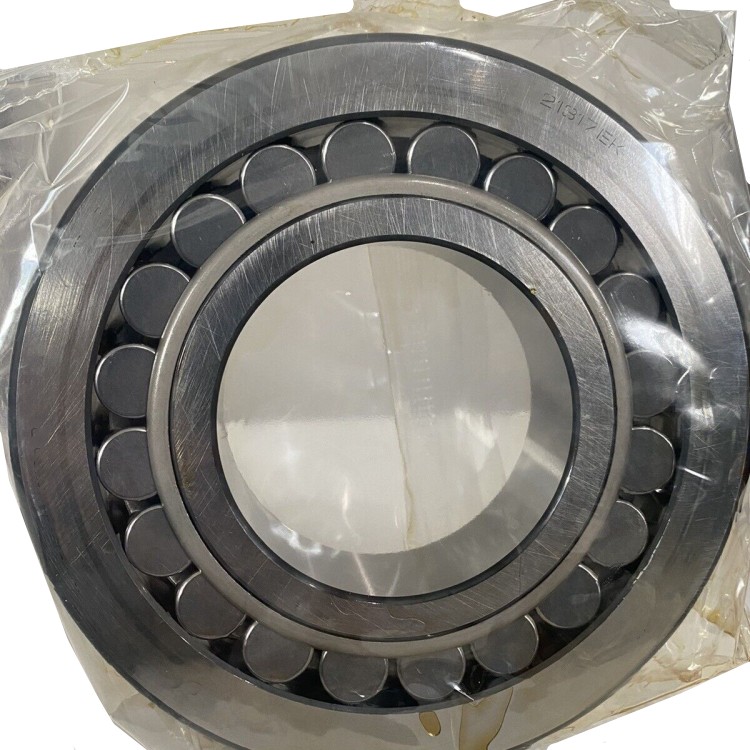

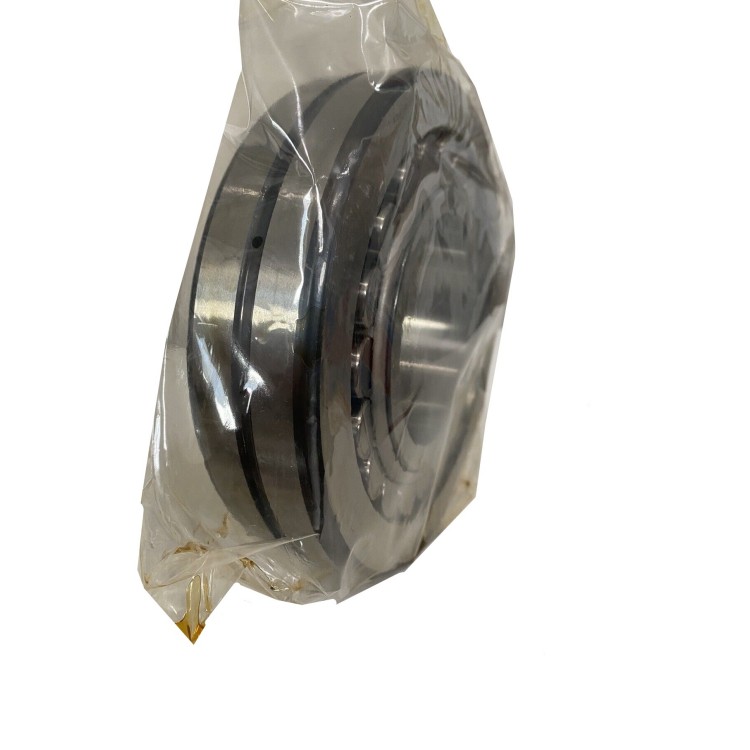

Bearing 21317 spherical roller bearing 21317E size 85x180x41mm

high speed bearingbearings

Spherical roller bearings have two rows of rollers.the outer ring has a shared spherical raceway,the inner ring has two raceways at an angle to the vertical axis of the bearing.This bearing combines the characteristics of a variety of designs,in many demanding applications,no other bearings can be completely replaced.Spherical roller bearings can be self-aligning,therefore, it is possible to withstand large alignment errors,such as the angular error between the shaft and the housing or the deflection of the shaft.Excellent design of spherical roller bearings in addition to high radial load carrying capacity outer,it can also withstand heavy axial loads acting in both directions.

Internal clearance:

standard spherical roller bearings are common radial clearances.Most models offer a larger C3 group clearance.In addition, many models can also provide smaller C2 group clearance or larger C4 or C5 group clearance vibration mechanical  spherical roller bearings for C4 group clearance.

Effect of operating temperature on bearing material:

All spherical roller bearings are specially heat treated to operate at high temperatures for extended periods of time without excessive dimensional changes. For example, run at +200 °C for 2,500 hours, or run at a higher temperature for a shorter period of time.

Axial load carrying capacity:

Due to the unique internal design of spherical roller bearings, it can withstand heavy axial loads or even pure axial loads.

BEARING 21317 roller bearing bearing 21317 bearing 21317E  21317 bearing  21317E bearingbearing factorybest groove ball bearing ROLLER BEARING

1,Q: Are you trading company or manufacturer ?
A: We are factory.
2,Q: How long is your delivery time for bearing 21317?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples for bearing 21317? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for bearing?
A: Payment<=1000USD,100% in advance.Payment>=1000USD, 30% T/T in advance,pay the balance before shippment.
5, Q:Could you accept OEM and customize for bearing 21317?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price?
A: after we get your inquiry,usually within 2-6 hours.Urgent will be faster.
7,Q:How about your quality of bearing 21317?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ for bearing 21317?
A: Usually ≥1, According your demand.
9,Q: Will you check these products before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with the bearing 21317?
A: If have any abnormal, Please contact us at first time, we will immediately processing.bearing manufacturer

If you need any brand bearings or any models of bearings, please contact me!
Contact: Grace
Email: ntn@llhbearing.com
Skype:+8618668903871
MP/Whatsapp: +8618668903871
Wechat:GraceXu1234
bearing manufaturer
d
85 mm
Bore diameter
D
180 mm
Outside diameter
B
41 mm
Width
d2
106 mm
Shoulder diameter of inner ring
D1
141 mm
Shoulder/recess diameter of outer ring
b
6 mm
Width of lubrication groove
K
3 mm
Diameter of lubrication hole
r1,2
min.3 mm
Chamfer dimension

high speed bearing

Bearing Designations

Boundary Domensions(mm)

Basic Load Rating(kn) Limiting Speed(r/min) Weight(kg)
New Standard d D B Dynamic

Cr

Static

 Cor

Grease Oil
23020CC/W33 100 150 37 237 400 2400 3200 2.51
23022CC/W33 110 170 45 310 440 3400 4300 3.8
23024CC/W33 120 180 46 350 510 3200 4000 4.2
23026CC/W33 130 200 52 430 610 2800 3600 6.0
23028CC/W33 140 210 53 465 680 2600 3400 6.55
23030CC/W33 150 225 56 510 750 2400 3200 7.95
23032CC/W33 160 240 60 585 880 2400 3000 9.7
23034CC/W33 170 260 67 710 1060 2200 2800 13
23036CC/W33 180 280 74 830 1250 2000 2600 17
23038CC/W33 190 290 75 865 1340 1900 2400 18
23040CC/W33 200 310 82 1000 1530 1800 2200 23.3
23044CC/W33 220 340 90 1220 1860 1600 2200 30.5
23048CC/W33 240 360 92 1290 2080 1500 1900 33.5
23052CC/W33 260 400 104 1600 2550 1300 1700 48.5
23056CC/W33 280 420 106 1730 2850 1300 1600 52.5
23060CC/W33 300 460 118 2120 3450 1200 1500 71.5
23064CC/W33 320 480 121 2240 3800 1100 1400 78
23068CC/W33 340 520 133 2700 4550 1000 1300 105
23072CC/W33 360 540 134 2750 4800 950 1200 110
23076CC/W33 380 560 135 2900 5000 900 1200 115
23080CC/W33 400 600 148 3200 5700 850 1100 150
23084CC/W33 420 620 150 3400 6000 600 1100 155
23126CC/W33 130 210 64 560 780 2400 3200 8.8
23128CC/W33 140 225 68 630 900 2200 2800 10.5
23130CC/W33 150 250 80 830 1200 2000 2600 16.0
23132CC/W33 160 270 86 980 1370 1900 2400 20.5
23134CC/W33 170 280 88 1040 1500 1800 2400 22
23136CC/W33 180 300 96 1200 1760 1700 2200 28
23138CC/W33 190 320 104 1370 2080 1500 2000 35
23140CC/W33 200 340 112 1600 2360 1500 1900 43
23144CC/W33 220 370 120 1800 2750 1300 1700 53.5
23144CC/W33 220 370 120 2120 3350 1000 1400 67
23148CC/W33 240 400 128 2080 3200 1200 1600 66.5
23152CC/W33 260 440 144 2550 3900 1100 1400 90.5
23156CC/W33 280 460 146 2650 4250 1000 1300 97
23160CC/W33 300 500 160 3200 5100 950 1200 125
23164CC/W33 320 540 176 3750 6000 850 1100 165
23168CC/W33 340 580 190 4250 6800 800 1000 210
23172CC/W33 360 600 192 4300 6950 750 1000 220
23176CC/W33 380 620 194 4400 7100 560 1000 230
23180CC/W33 400 650 200 4650 7650 530 950 265
23184CC/W33 420 700 224 5600 9300 480 900 350
23188CC/W33 440 720 226 6000 10000 450 850 360
