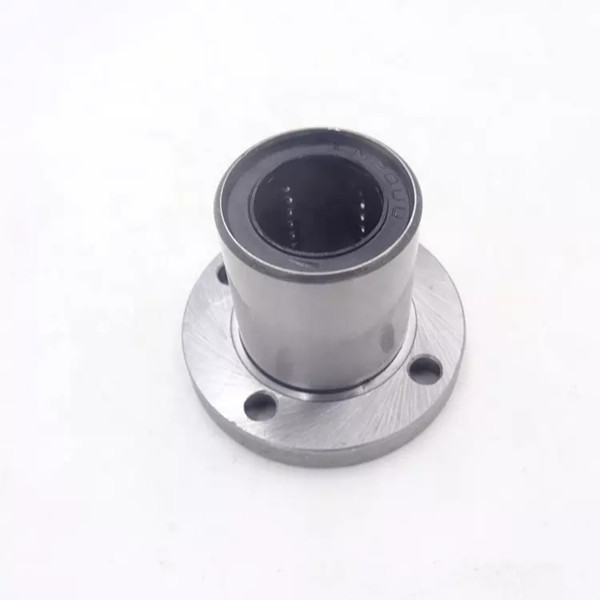

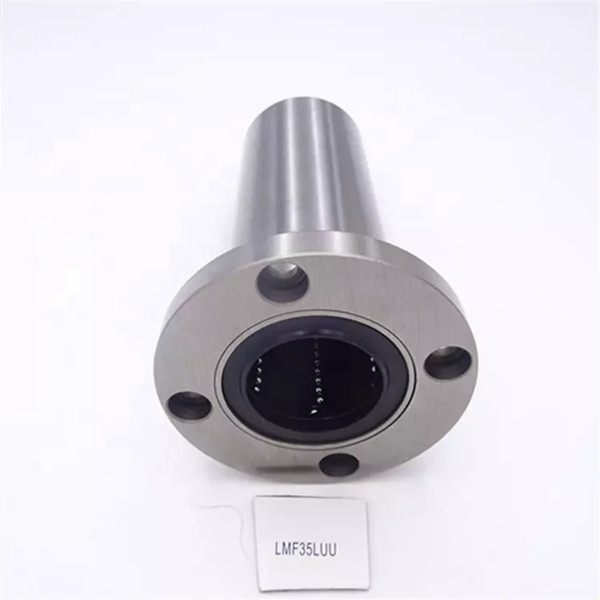

We Provide Round Flange Linear Bearing LMF series all sizes

Round flange linear bearing is the main support unit of mechanical equipment. It bears large loads during the work process.LMF series round flange linear bearing make the axial positioning simple; the bearing seat is no longer needed,hence more economical.
In order to obtain the low -friction torque, high rigidity, and good reckless accuracy of the bearings, the steel ball with small outer diameter. In addition, the use of mid -empty shafts ensures space for lightweight and wiring.

Characteristic：
Flange and bearing are integrated. When there is no connector at the end of the shaft, it is necessary to be fixed on the plane, and the flange bearing reflects its advantages.

Main Application：

When the speed is small, the thickness of the minimum oil membrane at the central bearing is small; as the journal increases, the thickness of the minimum oil membrane increases, showing an upward trend. Generally speaking, when the smallest membrane is thicker than HM> 3, it means that the central bearing has a better lubricating performance, which is in a state of full membrane fluid lubrication, that is, the lubricant film is full of the outer surface of the journal and the inner surface of the bearing. There was no contact.

The round flange linear bearing is mainly tolerated by radial loads, and can also withstand radial loads and axial loads at the same time. In order to extend the service life of bearings, the following three measures are usually used:
(1) In order to make the gap between the radius holder and the bearing ring bigger than the eccentricity,supplier improve the internal structure;
(2) Use FEM analysis to optimize the shape and thickness of the board to improve the strength of the holder;
(3) Surface damage caused by the reduction of lubricating oil, design the guide groove in the bearing ring.

The flange bearing is a sports system that don't need bearing seat. It is very light and the cost is low, so it is very popular in the application. When normal type bearing is used, the 2 ends of its need connecting parts, but the flange bearing can have no connecting parts at one end. This is the unique advantage of flange bearing, which also expands the usage.

If you need any brand bearings or any models of bearings, please contact me!
