Spherical Plain Bearings and Rod Ends for Modern Mechanical Systems

Spherical plain bearings and rod ends are fundamental self-aligning mechanical components designed to accommodate angular misalignment, oscillating motion, and combined radial and axial loads in machinery. They rely on sliding contact between matched spherical surfaces rather than rolling elements, which distinguishes them from ball and roller bearings and makes them ideal for low-speed, heavy-load articulating joints.

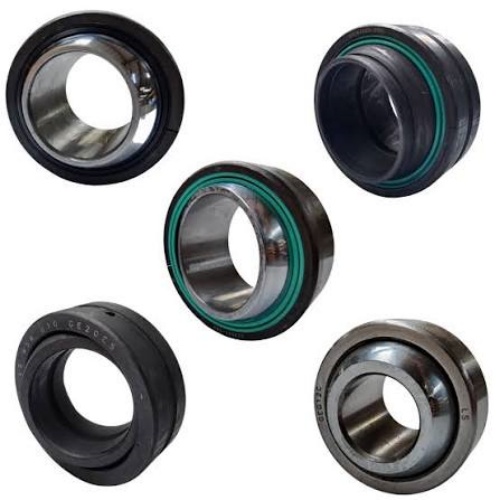

A spherical plain bearing, in its basic form, consists of two main parts: an inner ring with a convex spherical outer surface and an outer ring with a precisely matched concave spherical inner bore. This ball-and-socket structure allows the inner ring to pivot, tilt and oscillate within a defined angular range relative to the outer ring. When shafts and housings suffer from mounting misalignment, thermal deformation or minor structural deflection, the spherical sliding interface compensates for these errors and prevents excessive stress buildup on connected components. Manufacturers produce two primary categories: metal-on-metal bearings requiring periodic grease lubrication, and maintenance-free variants lined with PTFE or composite sliding materials. Self-lubricating spherical plain bearings and rod ends are preferred in locations where regular lubrication is difficult or impossible, such as outdoor equipment and sealed hydraulic systems.

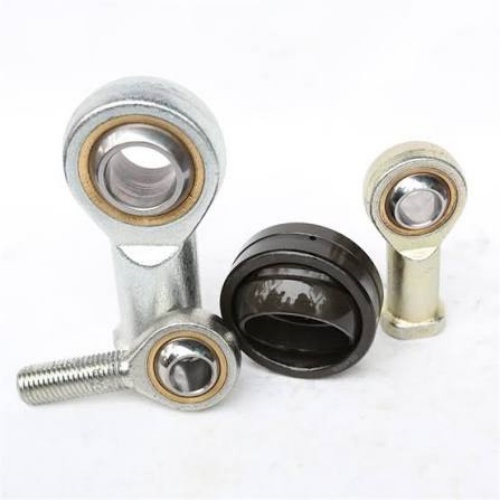

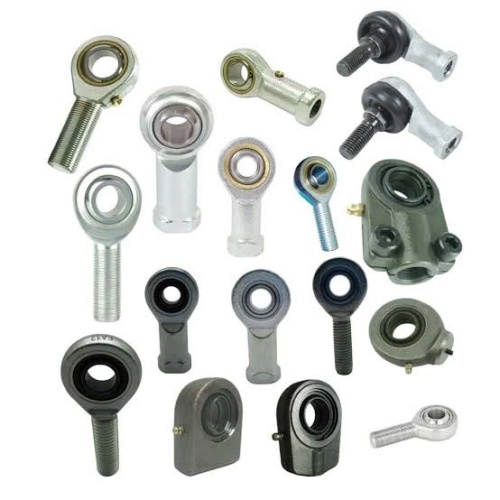

Rod ends, also called heim joints or rose joints, are integrated assemblies built around a spherical plain bearing. A spherical plain bearing is pressed into an eye-shaped housing with either male or female threaded shank. The threaded body allows direct connection to control rods, linkages and actuator arms, eliminating the need for an extra housing. While standalone spherical plain bearings must be installed into custom machined housings, rod ends are ready-to-install link joints, greatly simplifying assembly work. Rod ends retain all self-aligning features of spherical plain bearings and can transmit tension and compression forces along the rod axis while tolerating angular deflection during operation. Spherical plain bearings and rod ends have widly use.

Spherical Plain Bearings and Rod Ends MAIN series:

Spherical plain bearings have several main series. The GE series is the most widely used radial type, suitable for heavy radial loads. GEW series features wider inner rings, while GX series belongs to thrust spherical plain bearings for axial loads. There are also maintenance-free GE...ET series with self-lubricating liners. Rod end bearings like SI and SA series match spherical plain bearings. These series allow angular deflection and adapt to misalignment, commonly applied in construction machinery, hydraulic equipment and automotive structures.

More inforamtion of spherical plain bearings and rod ends. Feel free to contact us!
