How much do you know about wheel bearing with abs?

With more and more cars equipped with ABS, the function of ABS,ABS becoming stronger and stronger. In order to solve the problems of cost, installation and signal quality of wheel speed sensor which provides wheel speed signal to ABS, wheel bearing with abs pulse generator was developed.

The wheel bearing with abs sensor mainly includes flange, gear ring rotator, sealing assembly and wheel hub. The wheel hub is provided with ABS sensor, and the magnetic steel in the ABS sensor is sleeved on and matched with the gear ring rotator. The rotating body of the gear ring is fixedly connected with the flange plate. ABS sensor mainly includes shell, magnetic steel and coil, the magnetic steel is sleeved on the gear ring rotator, and the magnetic steel is matched with the gear ring rotator; Connect with the plug through the coil signal line. The rotating body of the gear ring is splined with the flange. The end face of the flange is provided with holes matched with bolts, which can be directly connected with suspension, braking devices and tires. A spline groove is arranged in the inner hole of the flange plate, which can be used together with the constant-speed drive shaft. The utility model has the beneficial effects that the structure replaces the original combination of automobile steering knuckle, wheel hub and bearing, which not only integrates the functions of the three, but also greatly reduces the volume and weight of the original structure, and at the same time greatly improves the reliability.

02 compressor bearing peeling

Fault phenomenon: the running surface is obviously convex and concave after peeling.

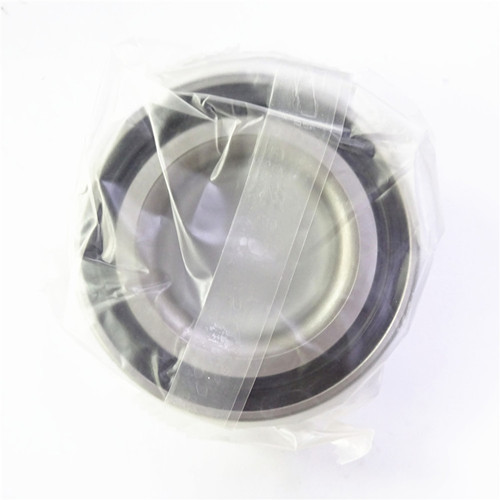

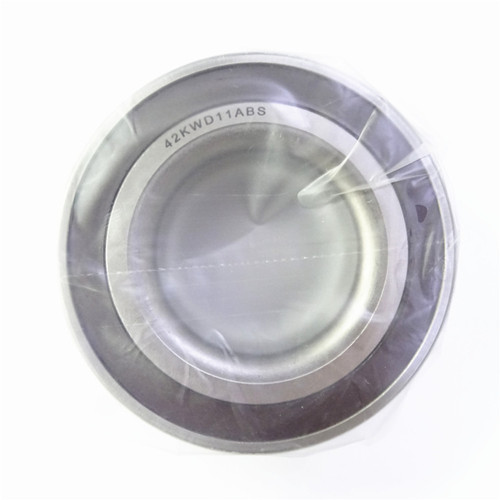

There is a magnetic thrust ring in the sealing ring equipped for wheel bearing with abs, which can't be hit, impacted or collided with other magnetic fields. Take them out of the box before installation, and keep them away from the magnetic field, such as the motor or power tools used. When installing these wheel bearing with abs, observe the ABS alarm needle on the dashboard through road test to change the operation of the bearings.

For wheel bearing with abs magnetic thrust ring, in order to determine which side the thrust ring is installed, you can use something light and small * near the edge of the bearing, and the magnetic force generated by the bearing will attract it. When installing, point the side with magnetic thrust ring to the inside, facing the sensitive element of ABS. Note: Improper installation may result in the failure of the brake system.

How to repair and maintain the wheel bearing with abs?

Wheel hub bearing is an important running part of automobile. The wheel hub is responsible for reducing the friction resistance of the chassis and maintaining the normal running of the car. If the hub bearing fails, it may cause noise, bearing heating and other phenomena, especially the front wheel, which may easily lead to dangerous phenomena such as out-of-control direction. Therefore, the hub bearing must be maintained on schedule.
