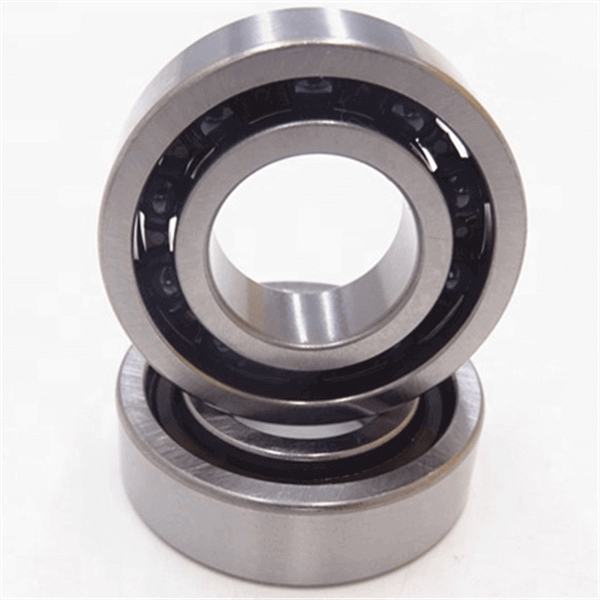

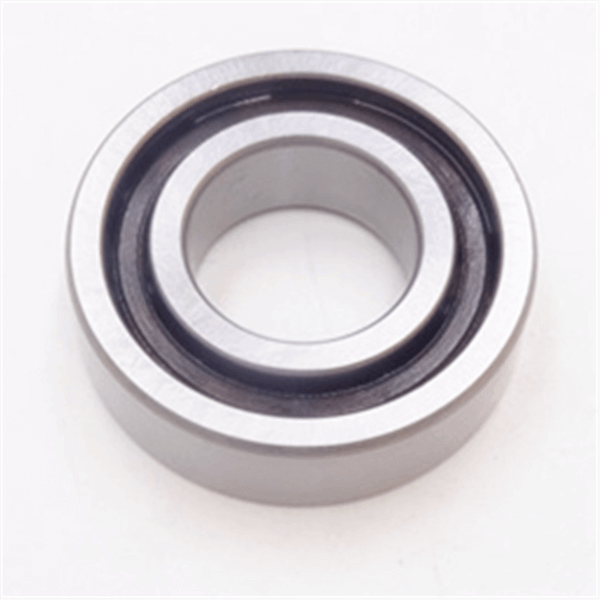

6003 bearing dimension parameters:
Bearing diameter :35mm
Bearing inner diameter :17mm
Bearing thickness :10mm
Bearing weight :0.039kg
Rated dynamic load :6400N
Rated static load :3250N
Ultimate speed :31000 r/min
Reference speed :20300 r/min
6003 bearing can be used for gearboxes, instruments and meters, motors, household appliances, internal combustion engines, traffic vehicles, agricultural machinery, construction machinery, construction machinery, yo-yo ball, etc.
After the 6003 bearing is mounted on the shaft, within the axial clearance range of the 6003 bearing, the axial displacement of the shaft or housing can be limited in both directions, so the axial positioning can be made in both directions.In addition, this type of bearing also has a certain ability to adjust the center, when relative to the shell hole tilt 2 '~10', it can still work normally, but has a certain impact on the bearing life.The deep groove ball bearing retainer is mostly steel plate stamping wave retainer, and the large bearing is mostly made of metal solid retainer.
The structure of 6003 bearing is simple, and compared with other types, it is easy to achieve higher manufacturing precision, so it is convenient for series mass production, and the manufacturing cost is lower, so it is widely used.
6003 bearing is mainly used to bear radial load, but when the radial clearance of 6003 bearing is increased, it has certain performance of angular contact ball bearing, and can bear combined diameter and axial load.When the speed is high and thrust ball bearing is not suitable, 6003 bearing can also be used to bear pure axial load.Compared with other bearings with the same size and size of deep groove ball bearings, this kind of bearing has low friction coefficient and high limit speed.However, it is not shock resistant and is not suitable for heavy load.
