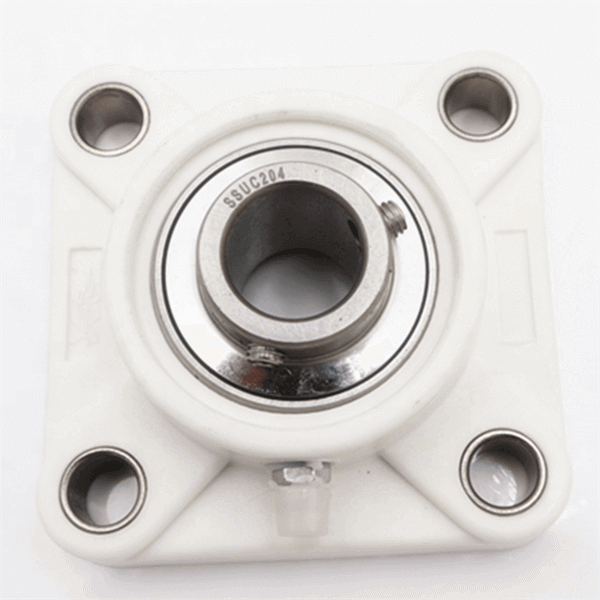

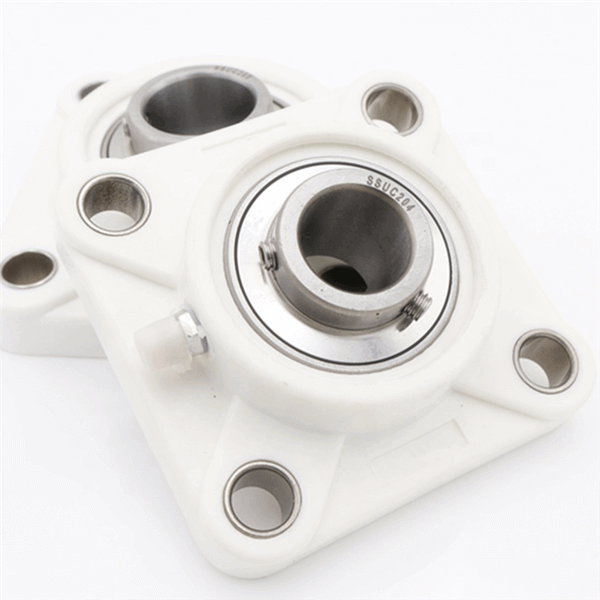

Ucf 204 bearing is a model for ucf 204 outer spherical bearing with seat

Ucf 204 bearing is a model for ucf 204 outer spherical bearing with seat.
ucf 204 bearing dimension parameter
a:86mm
e:64mm
How to assemble ucf 204 bearing?
1. Before mounting the ucf bearing on the shaft, it is necessary to remove the fixed pin of the bearing coat, polish the surface of the shaft journal and coat the shaft journal with oil to prevent rust and lubricate it (allow the bearing to rotate slightly on the shaft).
2. Lubricate the mating surfaces of the ucf 204 bearing housing and the bearing and load the bearing into the housing.Then the assembled ucf bearing and bearing housing together on the shaft.Push to the desired location for installation.

3. Do not tighten the bolts to fix the ucf bearing seat, but let the bearing coat rotate in the bearing seat.Also install the other end bearing and seat on the same shaft.
4. Install eccentric sleeve.First put the eccentric sleeve on the eccentric step of the inner sleeve of the ucf 204 bearing and tighten it in the direction of rotation of the shaft by hand.The small iron bar is then inserted or pushed against the counterbore in the eccentric sleeve.Strike a small iron bar with a hand hammer in the direction of rotation.
Z: 33.3 mm
i:15mm
Weight: 0.57 kg
Ucf 204 for bearing purpose

Ucf 204 bearing can be used for: hollow glass production line, engineering, and engineering design, spurt the code machine, condiment processing equipment, heat exchanger, water treatment equipment, variable frequency pump, electric welding machine, household sewing machines, workbench, sorting sieve, plating equipment, polishing machine, rubber molding machine, pelletizing machine, plastic calender, farm machinery accessories, granulating, drying equipment, etc.
If you need ucf 204 bearing or need any other bearings, please also contact me!
