miniature 625 rs bearing details

625 rs bearing is the most common Rolling bearings. Its structure is simple and easy to use. Used primarily for radial load, but when you increase the radial clearance of bearings, has a certain amount of angular contact ball bearings, can be subjected to combined radial and axial loads. When in high speed and inappropriate use of thrust ball bearings can also be subjected to purely axial loads. Compared with other types of bearing of the same size, the bearings low friction, high speed limit. But not shock resistant and should not be subjected to heavy loads.

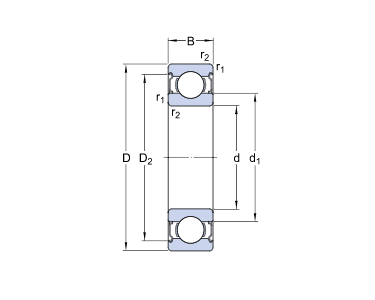

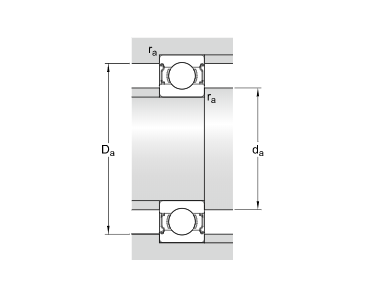

625 rs bearing drawing and size:

	d	5mm
	D	16mm
	B	5mm
	d1	≈ 8.4 mm
	D2	≈ 13.22 mm
	r1,2	min. 0.3 mm
	da	min. 7.4 mm
	da	max. 8.3 mm
	Da	max. 13.6 mm
	ra	max. 0.3 mm

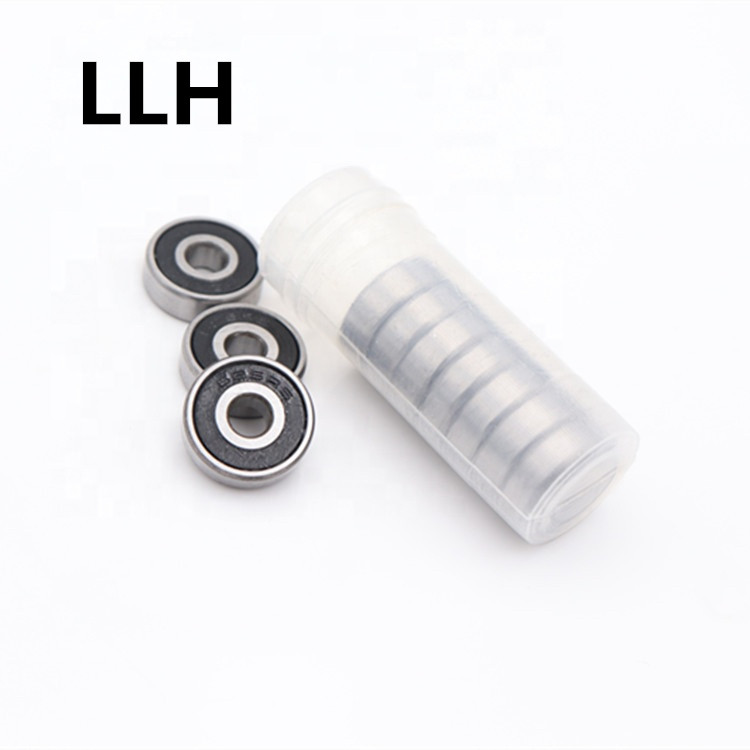

625 rs bearing picture:

625 rs bearing Appication:

can be used for transmission, instruments, electrical machinery, transport vehicles, agricultural machinery, household appliances, internal combustion engines, construction machinery, engineering machinery.
