What type of 7507 bearing?

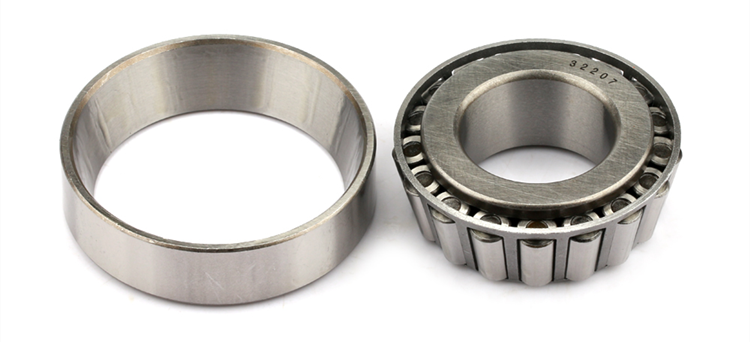

7507 bearing (New model number :32207 tapered roller bearing) consist of four interdependent components: the cone (inner ring), the cup (outer ring), the tapered rollers (rolling elements) and the cage (roller retainer). 7507 bearing (New model number :32207 tapered roller bearing) is uniquely designed to manage both thrust and radial loads between a rotating and non-rotating member. The steeper the cup angle, the greater the ability of the bearing to handle thrust loads.

7507 bearing (New model number :32207 tapered roller bearing) Application Industries:
Aerospace, agriculture, automotive, heavy truck, cement, aggregate, coal, oil and gas, construction, gear drives, machine tools, mining, paper, metals, rail and wind.

Specifications
New Model number: 32207
Old Model number:7507
Bearing weight: 0.4 Kg

Dimensions
d - Bore: 35.000 mm
D - Cup outer diameter: 72.000 mm
B - Cone width: 23.000 mm
C - Cup width: 19.000 mm
T - Bearing width: 24.250 mm
