A rod end bearing, also known as a heim joint (N. America) or rose joint (U.K. and elsewhere), is a mechanical articulating joint.Today we will intruduce our own brand 8mm rod end PHS8.
8mm rod end PHS8 bearing feature
1. Enable high reliability and high precision on thread Inch series rod end bearings ;
2. Sustain heavy loads with low noise and high stiffness;
3. Perform under almost any environmental conditions and load capacities to satisfy a wide range of applications.

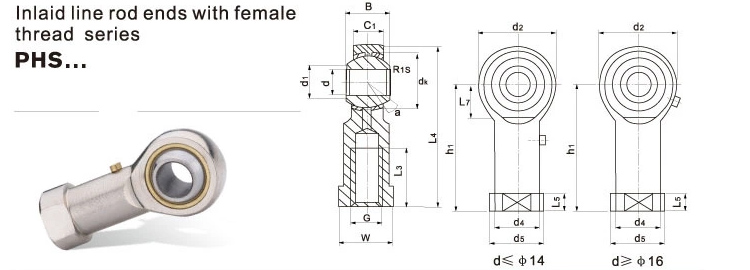

8mm rod end PHS8 bearings drawing
8mm rod end PHS8 bearings details
| d | 8 mm |
| B | 12 mm |
| dk | 15.875 mm |
| C1 max | 9 mm |
| d2 max | 22 mm |
| G(6H) | M8×1.25 mm |
| h1 | 36 mm |
| L3 min | 16 mm |
| L4 max | 36 mm |
| L5 | 5 mm |
| W | 14 mm |
| d4 | 12.5 mm |
| d5 | 16 mm |
| α ≈ | 14 mm |
| dyn.Cd | 7.2 kN |
| stat.Cs | 11.6 kN |
| Weight | 0.047 kg |
8mm rod ends PHS8 bearing can be used for:
engineering hydraulic cylinder, forging machine tools,engineering machinery, automation equipment, automobile shock absorber, water conservancy machinery industries, etc.
Our company specializes in selling high quality with good price 8mm rod end bearings, can provide customers with sample drawings, if you need this 8mm rod end bearing inner and outer rings, inner and outer diameters, thickness structure, weight, drawings, prices and other materials, please contact sales personnel
