How to check ball bearing in cycle?

Ball bearing in cycle just like the joints of the human body, wherever it can rotate or swing, bearings or washers will be used to make the part rotate more smoothly. The degree of bearing adoption will vary depending on the price or car model. Currently, the main parts of ball bearing in cycle are: faucet, front and rear hubs, pedals and bottom bracket; if there is a problem with ball bearing in cycle, continue riding Otherwise, the bearing will not only be deformed and stuck, but also cause deformation or damage to surrounding parts. Therefore, developing a good habit of regularly checking bearings is the best way to protect your car and ensure riding safety.

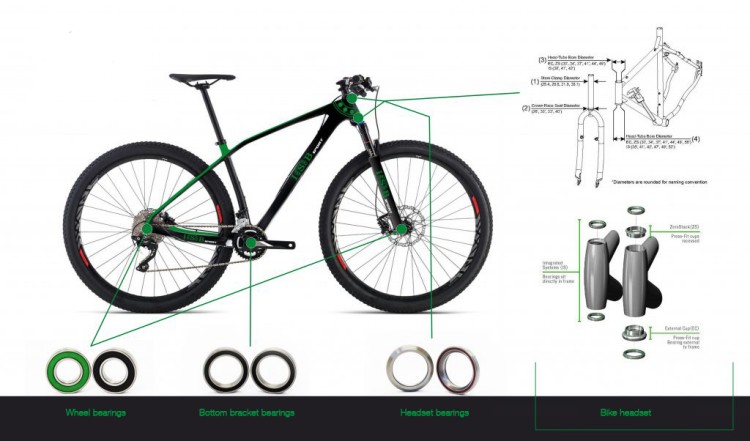

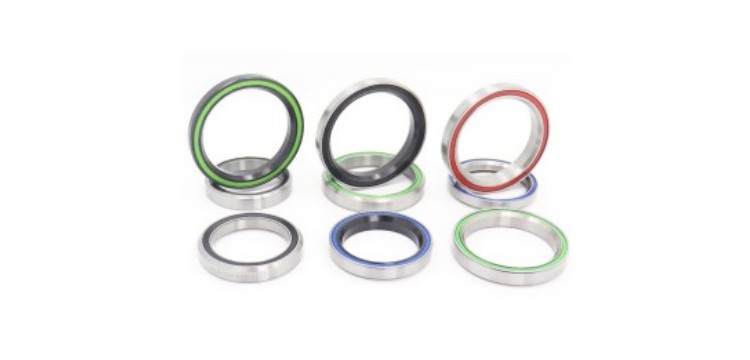

Currently, the common ball bearings in cycle on the market can be divided into two types: sealed type or detachable type. The sealed type has better waterproofing and durability than the detachable type, but when damaged, the entire set needs to be replaced; and the detachable type has the advantages of , that is, when the ball is broken, it can be disassembled and replaced. The specifications of bearings are mostly printed on the side of the bearing, and they will vary depending on the parts and components or product brands. You must pay attention when you want to modify or purchase by yourself.

Among all parts of a bicycle, the faucet directly affects the controllability of the entire vehicle, and the bearing inspection of the faucet part is both simple and important. Taking a road bike as an example, during inspection, slightly raise the frame with one hand and hold the handlebar with the other hand. Rock the car up and down or turn left and right to see if there is any rotation. If it is a mountain bike, it is best to lock the front shock absorber first, hold the front wheel brake and then turn the handlebar to check. Slight looseness can be adjusted. If the situation is serious, new bearings need to be replaced.

When checking the front wheel hub, you can first raise the faucet to let the front wheel fly, and then turn the front wheel to see if it is smooth; then hold the faucet with one hand, and hold the rim with the other hand and turn it left and right to check whether the front wheel hub is loose. The inspection method of the rear wheel hub is similar to that of the front wheel hub, but it is best to remove the rear wheel hub and rotate the hub shaft to determine whether there is any gap.

In addition to cheap (rubber) pedals using washers, almost all mid- to high-end pedals have ball bearing in cycle, and they are only found on the pedal axis near the crank end. The way to check is to hold the pedal with your fingers and shake it left and right to see if there is any bearing. Check for gaps or looseness, and then use your fingers to turn the pedals to see if they are not turning smoothly. Generally speaking, more than 90% of pedal bearings need to be replaced when there is a problem; therefore, it is very important to develop the habit of regular cleaning and oiling.

During the pedaling process, if the bottom bracket makes a "clicking" sound or gets stuck, it means that the bearings installed at both ends of the bottom bracket may be abnormal. The simplest way to check the bottom bracket bearing is to hold the crank with your hands. Rock it back and forth to see if there are any gaps or looseness. If you want to check in more detail, you need to remove the crank and large chainring with special equipment. After removing the crank and large gear plate, you can check whether the outer cover of the bottom bracket bearing is worn, and turn the axis of the bottom bracket by hand to confirm the gap or looseness; when you want to put the removed crank and large gear plate back, It's best to use a torque wrench to avoid losing teeth or damaging the ball bearing in cycle caps.
