Deep groove ball bearing 6305 2z details

11 Published by admin May 12,2026

Deep groove ball bearings are one of the most widely used bearing types in industrial and mechanical applications, valued for their simplicity, reliability, and versatility. Among them, the bearing 6305 2z stands out as a popular choice for medium-load, moderate-speed scenarios, offering a perfect balance of performance and cost-effectiveness. This article provides a detailed overview of the bearing 6305 2z, including its model interpretation, structural characteristics, key performance, typical applications, and maintenance guidelines.

1. Model Interpretation of bearing 6305 2z

The model designation "6305 2Z" follows the international standard for deep groove ball bearings, where each part has a specific meaning that helps identify its size, structure, and design features:

6: The first digit represents the bearing type. The number "6" indicates a deep groove ball bearing, the most common category of rolling bearings, characterized by a deep raceway that allows for both radial and axial loads.

3: The second digit denotes the series (width series). The number "3" refers to the medium width series, which balances load-carrying capacity and overall dimensions—suitable for most general-purpose applications.

05: The third and fourth digits represent the bore diameter. For bearings with a bore diameter between 10mm and 100mm, this number is multiplied by 5 to get the actual bore size. Thus, "05" means the bore diameter is 05×5 = 25mm.

2Z: The suffix indicates the seal type. "Z" stands for a metallic shield (non-contact shield) on one side, and "2Z" means the bearing is equipped with metallic shields on both sides. This design prevents dust, debris, and other contaminants from entering the bearing interior while retaining the lubricant.

In addition to the core dimensions, the 6305 2Z bearing typically has an outer diameter of 62mm and a width of 17mm, complying with standard metric dimensions for easy interchangeability with bearings from different manufacturers.

2. Structural Characteristics and Key Performance

2.1 Structural Design

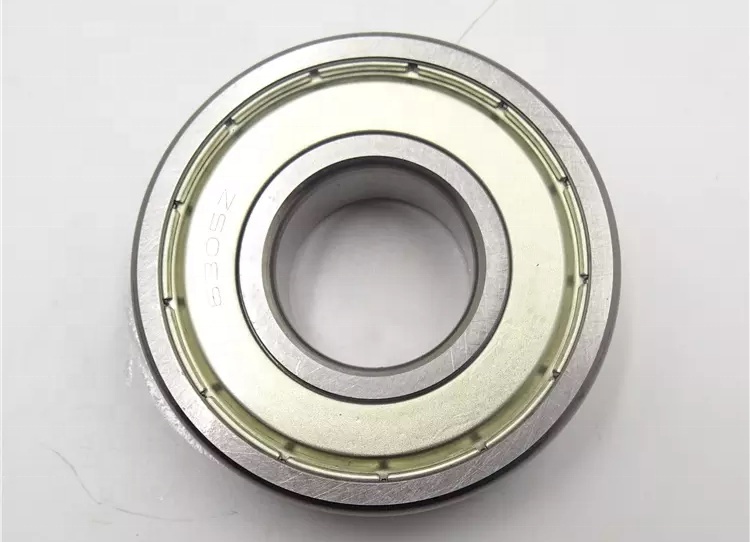

The bearing 6305 2z consists of four main components: inner ring, outer ring, steel balls, and cage. The inner ring is mounted on the rotating shaft, while the outer ring is fitted into the housing. The steel balls, held in place by the cage, roll between the inner and outer raceways, reducing friction between the rotating and stationary parts. The two metallic shields (2Z) are attached to the outer ring and extend slightly over the inner ring, creating a non-contact seal—this design ensures minimal friction while providing effective protection against contaminants.

2.2 Key Performance Advantages

Versatile Load Capacity: It can withstand both radial loads and small to moderate axial loads in both directions, making it suitable for applications where combined loads are present.

High Rotational Speed: Due to the smooth rolling of steel balls and the non-contact shield design, the bearing 6305 2z supports relatively high rotational speeds, making it ideal for equipment that requires rapid rotation, such as electric motors and fans.

Low Friction and Wear: The precision-machined raceways and high-quality steel balls minimize friction, reducing energy consumption and extending the bearing’s service life.

Easy Installation and Maintenance: Its compact structure and standard dimensions make installation straightforward. The 2Z shield design reduces the need for frequent lubrication and maintenance, as it effectively retains grease and prevents contamination.

Cost-Effective: As a standard deep groove ball bearing, the bearing 6305 2z is mass-produced, resulting in a lower cost compared to specialized bearings, making it a cost-efficient choice for general industrial use.

3. Typical Applications of bearing 6305 2z

Thanks to its balanced performance and versatility, the bearing 6305 2z is widely used in various industries and applications, including but not limited to:

Electric Motors: Used in small to medium-sized electric motors (e.g., AC motors, DC motors) to support the rotating shaft, ensuring smooth operation and reducing energy loss.

Mechanical Transmission Equipment: Applied in gearboxes, reducers, and belt drives to bear radial and axial loads, maintaining stable transmission efficiency.

Household Appliances: Found in washing machines, fans, air conditioners, and refrigerators, where reliable, low-noise operation is required.

Automotive Industry: Used in auxiliary components such as electric fans, water pumps, and alternators, adapting to the harsh operating environment of vehicles.

Light Industrial Machinery: Suitable for pumps, compressors, conveyors, and small agricultural machinery, providing reliable support for rotating parts.

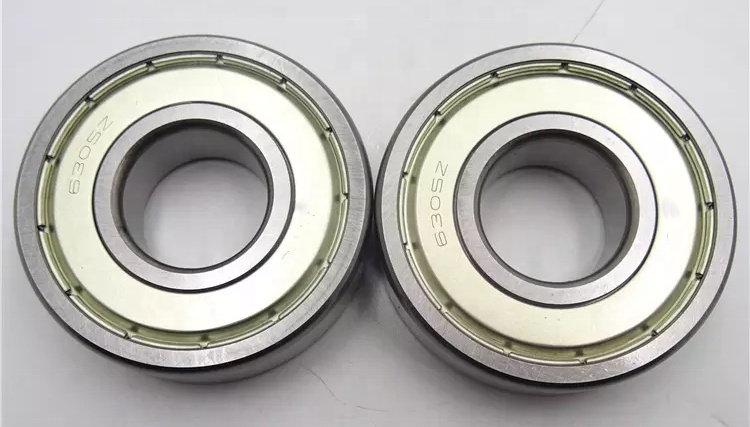

Instrumentation: Used in precision instruments and meters that require low friction and stable rotation, such as measuring equipment and small pumps. ball bearing 6305 2z

4. Maintenance Guidelines for bearing 6305 2z

Proper maintenance is essential to maximize the service life of the bearing 6305 2z and ensure its stable performance. Here are some key maintenance tips:

Lubrication: The bearing 6305 2zg is typically pre-lubricated with grease at the factory, but regular lubrication is still necessary during operation. Choose the appropriate grease (e.g., lithium-based grease) based on the operating temperature and speed, and avoid over-lubrication, which can cause overheating and increased friction.

Contamination Prevention: Although the 2Z shields provide protection, avoid installing the bearing in extremely dusty, humid, or corrosive environments. If used in such conditions, additional seals (e.g., oil seals) can be installed to enhance protection.

Proper Installation: Ensure the shaft and housing are clean and free of burrs before installation. Use appropriate tools (e.g., bearing presses) to avoid damaging the bearing rings or steel balls. Do not hammer the bearing directly, as this can cause internal damage.

Regular Inspection: Periodically check the bearing for abnormal noise, vibration, or overheating, which may indicate wear, insufficient lubrication, or misalignment. If any abnormalities are found, stop the equipment immediately and inspect the bearing for damage.

Replacement: When the bearing shows signs of severe wear (e.g., excessive play, scratches on raceways, or broken steel balls), replace it with a new 6305 2Z bearing to avoid equipment failure.

5. Conclusion

The bearing 6305 2z is a reliable, versatile, and cost-effective component that plays a crucial role in various industrial and mechanical applications. Its medium load-carrying capacity, high rotational speed, and 2Z shield design make it suitable for a wide range of scenarios, from electric motors to household appliances. By understanding its model meaning, structural characteristics, and following proper maintenance guidelines, users can ensure the bearing operates efficiently and has a long service life. Whether for general-purpose or specific industrial use, the bearing 6305 2z remains a top choice for engineers and manufacturers seeking balanced performance and value.
