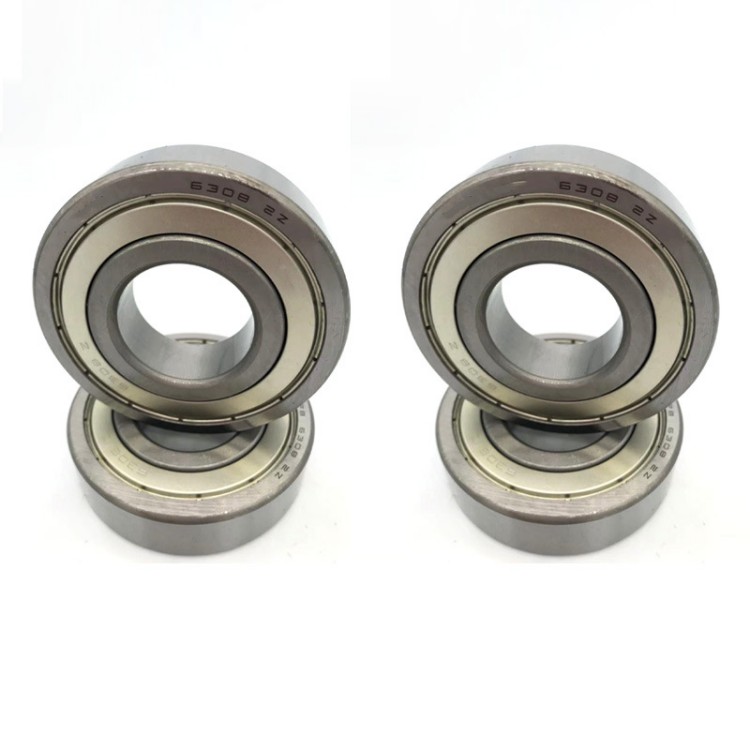

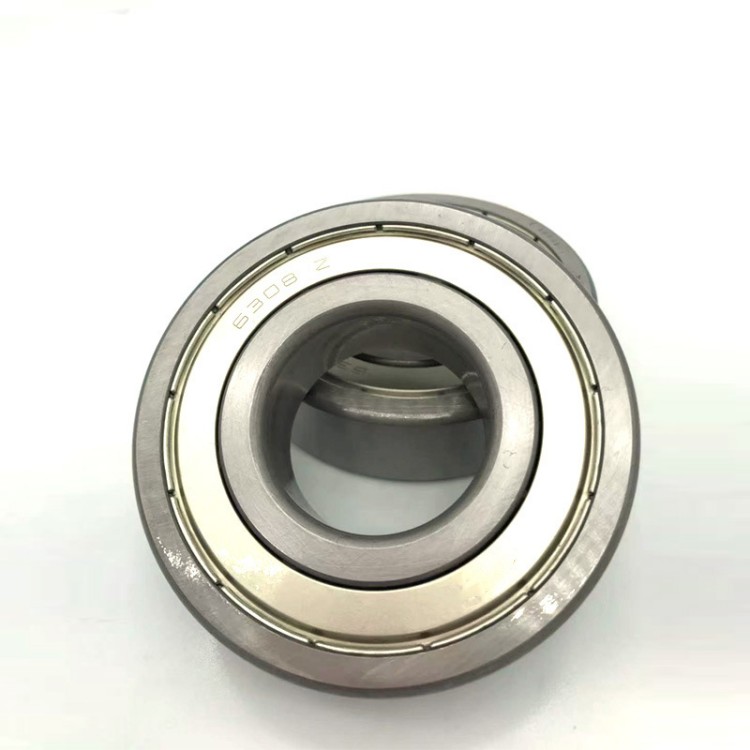

Bearing 6308 2Z C3: A Versatile and High-Performance Deep Groove Ball Bearing

3 Published by admin May 13,2026

In the realm of industrial machinery, bearings serve as the unsung heroes that ensure smooth rotation, reduce friction, and extend the service life of equipment. Among the wide variety of bearings available, the bearing 6308 2z c3 stands out as a versatile, reliable, and widely used component across numerous industries. This article delves into the key features, technical specifications, performance advantages, and practical applications of the bearing 6308 2z c3, shedding light on why it has become a preferred choice for engineers and manufacturers worldwide.

Understanding the Designation: 6308 2Z C3

Before exploring its performance and applications, it is essential to decode the designation of the bearing 6308 2z c3, as each alphanumeric symbol carries specific information about its design and characteristics:

6: Represents the bearing type, indicating a deep groove ball bearing. Deep groove ball bearings are the most common type of rolling bearing, featuring a deep raceway that allows them to accommodate both radial and axial loads in both directions.

3: Denotes the series of the bearing, specifically the 3-series. This series is classified as a medium-sized deep groove ball bearing, balancing load capacity and compactness for a wide range of applications.

08: Indicates the bore diameter. The bore diameter of a 6308 bearing is calculated as 08 × 5 = 40 mm, a standard size that ensures compatibility with many shafts and equipment components.

2Z: Signifies the sealing configuration, meaning the bearing is equipped with non-contact metal shields on both sides. These shields effectively prevent dust, debris, and other contaminants from entering the bearing while retaining the lubricating grease, thus extending the bearing’s service life and reducing maintenance needs.

C3: Refers to the radial internal clearance, which is greater than the normal clearance (CN). C3 clearance is designed to accommodate thermal expansion during operation, especially in high-speed or high-temperature environments, reducing internal stress and ensuring smooth rotation. bearing 6308 2z

Performance Advantages

The bearing 6308 2z c3 offers a range of performance advantages that set it apart from other bearings, making it a reliable choice for critical machinery components:

Versatile Load Capacity: As a deep groove ball bearing, it can accommodate both radial loads and bidirectional axial loads, eliminating the need for additional thrust bearings in many applications. This versatility simplifies equipment design and reduces overall costs.

Low Friction and High-Speed Capability: The precision-engineered raceway and smooth rolling elements minimize friction, allowing the bearing to operate at high speeds without excessive heat generation. The reference speed of 17,000 r/min makes it suitable for high-speed machinery such as electric motors and pumps.

Enhanced Durability with 2Z Shields: The double metal shields provide effective protection against contaminants, preventing dust, dirt, and moisture from entering the bearing. This not only extends the bearing’s service life but also reduces maintenance frequency, as the shields retain lubricating grease and reduce the need for frequent re-lubrication.

C3 Clearance for Thermal Adaptability: The C3 radial clearance is particularly beneficial in applications where the bearing is exposed to high temperatures or experiences thermal expansion during operation. This clearance allows the bearing components to expand without causing internal stress, ensuring stable performance and preventing premature failure.

Easy Installation and Maintenance: The bearing 6308 2z c3 features a cylindrical bore and a compact design, making it easy to install and replace. Its low maintenance requirements, thanks to the 2Z shields and grease retention, further reduce operational downtime and costs.

Cost-Effective Reliability: Manufactured with high-quality bearing steel and a pressed steel cage, the bearing 6308 2z c3 offers long-term reliability at a competitive cost. Its interchangeability with other standard 6308-series bearings also ensures easy replacement and availability.

Practical Applications

Due to its versatile performance and robust design, the bearing 6308 2z c3 is widely used across numerous industries and applications. Some of the most common applications include:

Electric Motors: It is a staple component in electric motors, where its high-speed capability, low friction, and C3 clearance make it ideal for handling the thermal expansion and radial loads generated during operation. It is commonly used in industrial motors, pumps, and fans.

Mechanical Equipment: The bearing is widely used in various mechanical equipment, including conveyor systems, mixers, crushers, and gearboxes. Its ability to accommodate both radial and axial loads makes it suitable for heavy-duty machinery in manufacturing plants.

Automotive Industry: In the automotive sector, the bearing 6308 2z c3 is used in components such as alternators, wheel hubs, and transmission systems. Its durability and resistance to contaminants make it suitable for the harsh operating conditions of vehicles.

Metallurgical and Construction Equipment: It is used in metallurgical equipment such as steel mills and rolling mills, as well as construction machinery like excavators and cranes. Its robust design and high load capacity allow it to withstand the heavy loads and harsh environments of these industries.

Food and Beverage Industry: The bearing 6308 2z c3 is also used in food processing equipment such as mixers and conveyors, where the 2Z shields prevent contamination of food products by keeping debris out of the bearing.
