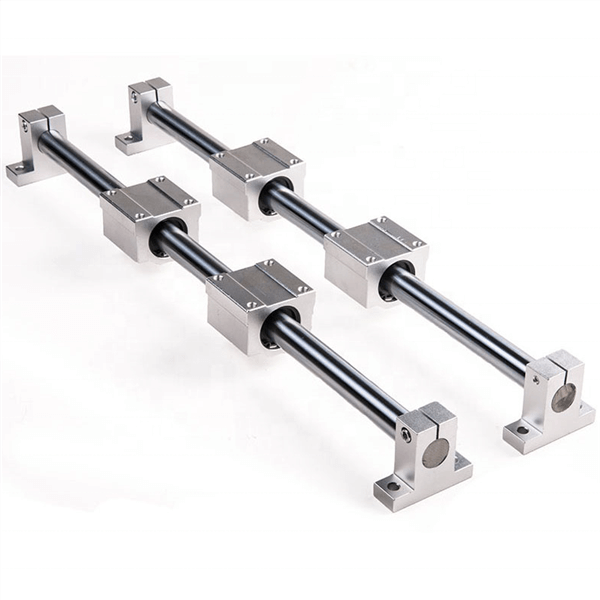

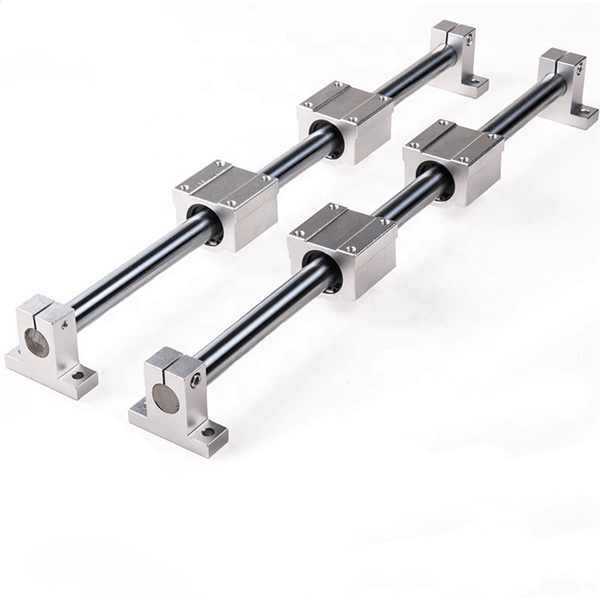

The basic function of the fixed elements of the linear bearing supported slide rail (guide rail) is like a bearing ring, a bracket for the steel ball, in the shape of a "v".The bracket wraps around the top and sides of the guide.In order to support the working parts of the machine tool, alinear bearing supported slide rail has at least four brackets.For supporting large working parts, the number of brackets can be more than four.
Linear bearing supported slide rail can be divided into: roller linear guide, cylindrical linear guide, ball linear guide, three kinds, is used to support and guide moving parts, according to the given direction to do reciprocating linear bearing supported slide rail.According to the nature of friction, linear motion guide can be divided into sliding friction guide, rolling friction guide, elastic friction guide, fluid friction guide and other categories.Linear guide, also known as linear rail, slide rail, linear guide rail, linear slide rail, used for linear reciprocating motion occasions, has a higher rated load than linear bearing.
Application for linear bearing supported slide rail:
Linear bearing supported slide rail motion is used to support and guide moving parts, according to the given direction to do reciprocating linear motion.According to the nature of friction,linear bearing supported slide rail supported slide rail can be divided into sliding friction guide, rolling friction guide, elastic friction guide, fluid friction guide and other categories.Linear bearing is mainly used in automation machinery more, like Germany imported machine tools, bending machine, laser welding machine and so on, of course, linear bearing supported slide rail and straight shaft is used with matching.Like linear guide is mainly used in the mechanical structure with high precision requirements, linear guide between moving elements and fixed elements without intermediate medium, but with rolling steel ball.
If you need linear bearing supported slide rail or need any other bearings, please also contact me!
Contact: Leon
Email: nsk@zyslbearing.com
Skype: lh19881023
MP/Whatsapp: +8615098916271
