NU1032 cylindrical roller bearings details

6 Published by admin Jun 11,2021

NU1032 cylindrical roller bearings are usually only subjected to radial forces. Compared with ball bearings of the same size, the radial load capacity is increased by 1.5-3 times, with good rigidity and impact resistance. It is especially suitable for rigidly supported, short shafts, Shafts that cause axial displacement due to thermal elongation and machine accessories that require separate bearings for installation and disassembly.

This NU1032-M1-C3 bearing is a single row cylindrical roller bearing, it has no flanges on the inner ring, a two-piece solid brass cage, roller guided and a larger than normal radial internal clearance. The bearing's dimensions are 160x240x38.

NU 10 32 M1 C3
Two Flanges on Outer Ring and No Flanges on Inner Ring Extra Light Series 160mm - Bore Size Solid Brass Cage, Two-piece, Roller-guided Radial Internal Clearance Larger Than Norma

Product Information

Brand As your request
Model NU1032-M1-C3
AVAILABILITY IN STOCK
WEIGHT 5.9200 KGS
INSIDE DIAMETER (MM) 160MM
OUTSIDE DIAMETER (MM) 240MM
WIDTH (MM) 38MM
CAGE TYPE BRASS
SEALS OR SHIELDS OPEN TYPE
CLEARANCE C3

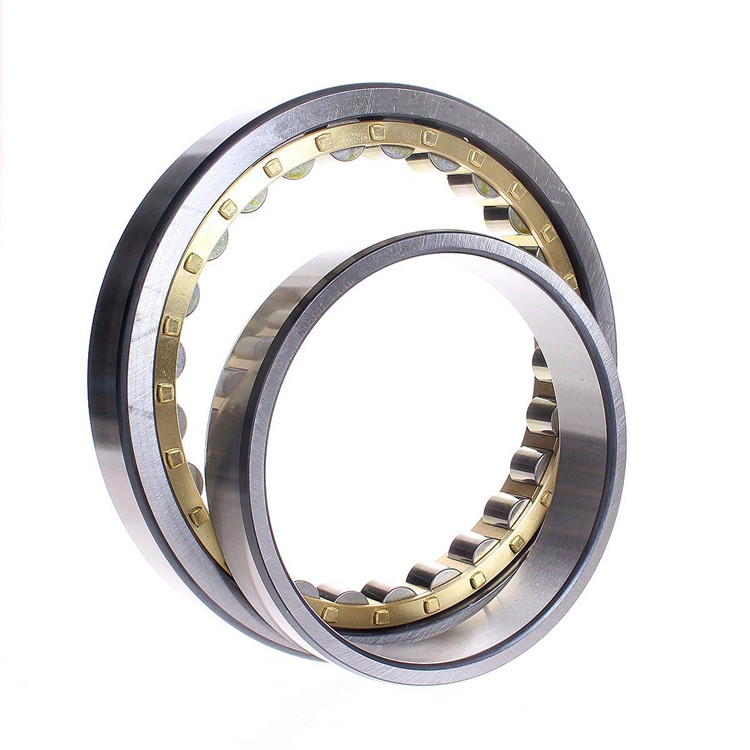

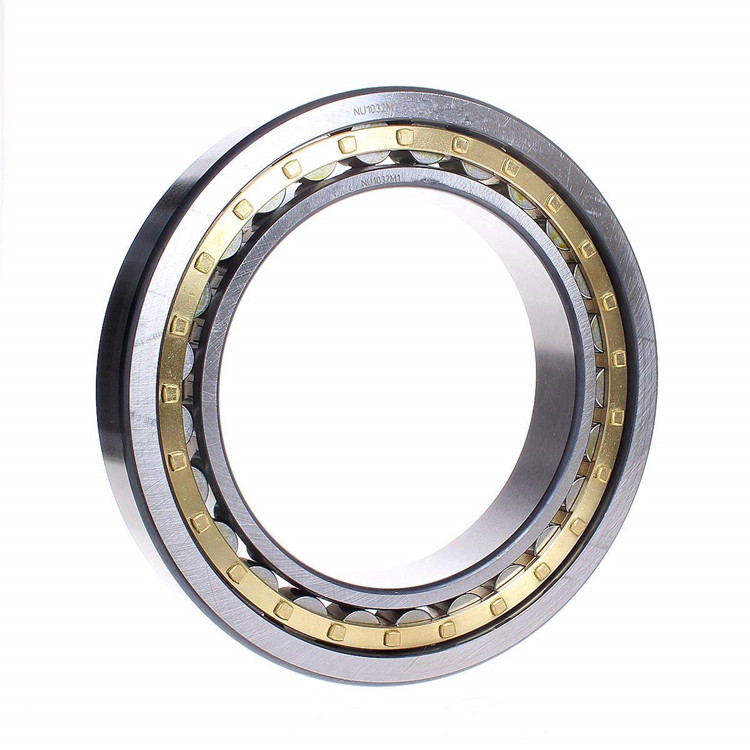

NU1032 Cylindrical roller bearing picture

nu1032 nu1032m

NU1032 Cylindrical roller bearing is of high load capacity and can operate at high speeds because they use rollers as their rolling elements. They can therefore be used in applications involving heavy radial and impact loading.

The rollers are cylindrical in shape and crowned at the end in order to reduce the stress concentrations. NU1032 is also suitable for applications that require high speed because the rollers are guided by ribs which are either on the outer or inner ring.

If you need any brand bearings or any models of bearings, please contact me!

Contact: Grace
Email: ntn@llhbearing.com
Skype:+8618668903871
MP/Whatsapp: +8618668903871
Wechat:GraceXu1234
