Nu328 are also available in sealed or split designs

466 Published by admin Sep 09,2020

Nu328 bearing is a kind of bearing, d(inside diameter) is 140mm, OD(outside diameter) is 300mm.B: (thickness) 62 mm
R (minimum) : 4
Cr(Rated dynamic load):623kN
Cor(rated static load):746kN
Grease :1900rpm
Oil :2500rpm
Nu328 Bearing Application Industry:
Plastic welding machine, rubber machine, welding machine, cutting machine, wrapping package machine, knitting machine, bottle blowing machine, canned food processing equipment, rolling guide, forestry machinery, combination machine tools, bucket elevator, pipe heat exchanger, vibration plate, reaction equipment, filter machine, concrete mixer, gantry crane, coating machine, Heidelberg printing machine, etc.

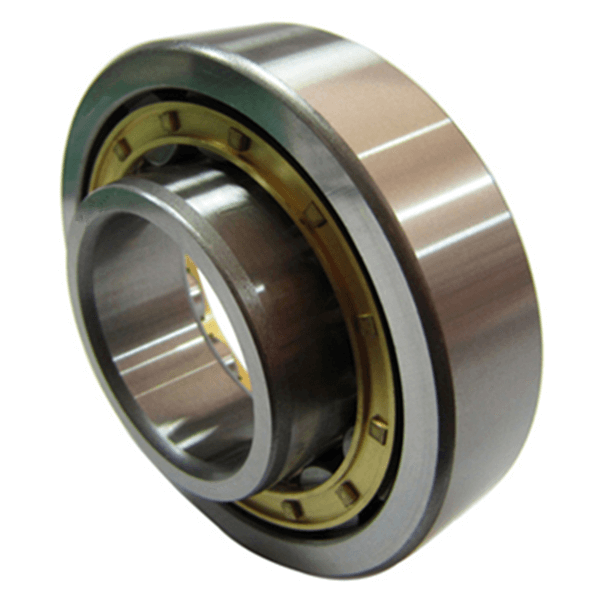

nu328 bearing
Nu328 bearings are available in a variety of designs, series, variations and sizes.The main design differences are in the number of roller rows and inner/outer flange and the design and material of the retainer.
The nu328 bearing can meet the application challenges of heavy radial load and high speed.Adapted to axial displacements (except for bearings with flanged inner and outer rings), they provide high stiffness, low friction and long service life.
Nu328 bearings are also available in sealed or split designs.In sealed bearings, rollers are protected against pollution, water and dust to keep the lubricant inside and remove pollution.This allows for lower friction and longer service life.Split bearings are used primarily for hard-to-reach bearing configurations, such as crankshafts, which simplify maintenance and replacement.

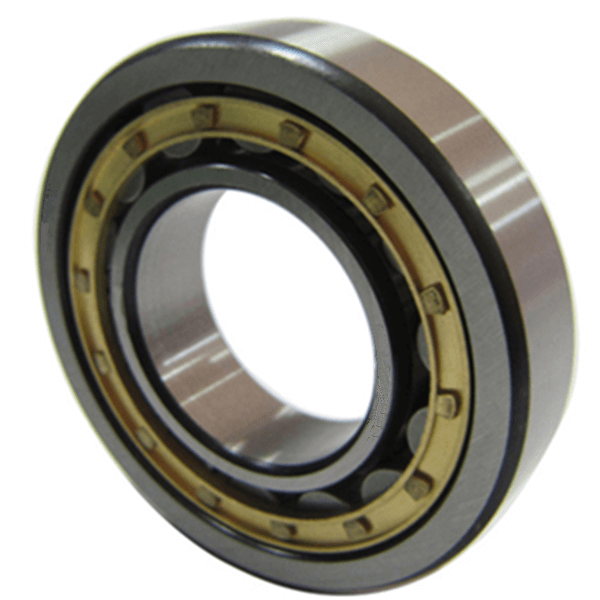

nu328
The raceway and rolling body of nu328 bearing have geometric shapes.After the improved design, the bearing capacity is higher. The new structure design of the roller end face and the roller end face not only improves the nu328 bearing axial bearing capacity, but also improves the lubrication condition of the roller end face and the contact area of the roller end face and the roller end face, and improves the bearing's performance.
If you need nu328 bearing or need any other bearings, please also contact me!
Contact: Leon
Email: nsk@zyslbearing.com
Skype: lh19881023
MP/Whatsapp: +8615098916271
