Do we really know the radial bearing definition?

666 Published by admin Feb 20,2019

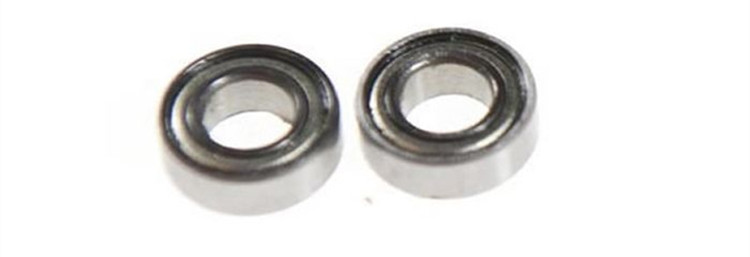

What is the radial bearing definition?The main bearing capacity is that the radial bearing is the radial bearing, which is also the most common bearing. Generally, the deep groove ball bearings we see are all radial bearings.

There are many types of plain bearings, which can be divided into radial bearings (bearing radial loads) and thrust bearings (with axial loads) depending on how they are loaded.

Radial bearing definition--A threaded hole for mounting the oil cup is provided on the bearing housing. An oil hole is formed in the sleeve, and an oil groove is formed on the inner surface of the sleeve. The advantage of this type of bearing is that it is simple in construction and low in cost.deep groove ball bearing

Its disadvantage of radial bearing definition is that after the bushing wears, the bearing clearance cannot be adjusted when it is too large. In addition, it can only be attached and detached from the end of the journal. For shafts of heavy machinery or shafts with intermediate journals, assembly and disassembly is inconvenient or impossible to install. Therefore, such bearings are often used in low-speed, light-load or intermittent machines, such as certain agricultural machinery, manual machinery, and the like-- radial bearing definition.

The role of radial bearing definition: provide radial support, withstand radial loads, support rotor weight and centrifugal force due to rotor mass imbalance, and determine the radial position of the rotor.

Radial bearing definition--The part that constitutes the shaft supported by the bearing is called the journal. The part that matches the journal is called the bearing bush. The part that is made into the full cylindrical shape is called the part of the shaft set bearing bush. The upper part is called the bearing cap. The lower half is called the bearing housing. The cover and the seat are coupled by a stud, and the joint faces of the two are positioned by a stop or a pin, and spacers of different thicknesses can be placed to adjust the bearing clearance. radial bearing definition have a joint surface that is horizontal and slanted to accommodate the load direction approaching perpendicular to the joint surface. In order to facilitate the entry of lubricating oil between the friction surfaces, the bearing cover is provided with an oil filling hole, and the bearing bush has an axial oil groove for distributing lubricating oil. The radial bearing definition cap and seat are mostly made of cast iron, and the load-bearing steel or steel plate welded structure is used-- radial bearing definition.radial bearing definition

Radial bearing definition are available in split, integral, flanged and self-aligning versions. The bearing cap of the split bearing can be opened to facilitate the loading of the journal, and the bearing bush can be easily adjusted after the bearing is worn. The integral bearing is simple in construction, but the journal must be loaded from one end and the gap cannot be adjusted after wear. The mounting surface of the flanged bearing is perpendicular to the bearing centerline. Self-aligning bearings automatically adjust the axis to accommodate the deflection of the shaft-- radial bearing definition.

The diameter of the inner bore of a radial bearing definition is called the bearing diameter. The axial dimension of the bearing pad is called the bearing width. The ratio of the bearing width to the bearing diameter is called the aspect ratio, which is generally 0.4 to 1.5, and 0.25 is also taken to reduce the axial dimension (as in an internal combustion engine). The aspect ratio has a large impact on bearing performance.
