Cylindrical and Track Roller Bearing Slide Rails

116 Published by admin Nov 20,2023

  Linear guides, also known as linear guides, slide rails, linear guides, and linear slide rails, can be divided into three types: cylindrical and roller bearing slide rails,linear guides, and ball linear guides.
Used in high-precision or high-speed linear reciprocating motion situations, and can bear a certain amount of torque, achieving high-precision linear motion under high loads.
  According to the friction properties, roller bearing slide rails can be divided into sliding friction guides, rolling friction guides, elastic friction guides, fluid friction guides, and other types. Linear bearings are mainly used in automated machinery, such as machine tools, bending machines, laser welding machines, and so on. Linear guides are mainly used in mechanical structures with high precision requirements. The moving and fixed components of linear guides do not use intermediate media, but instead use rolling steel balls.

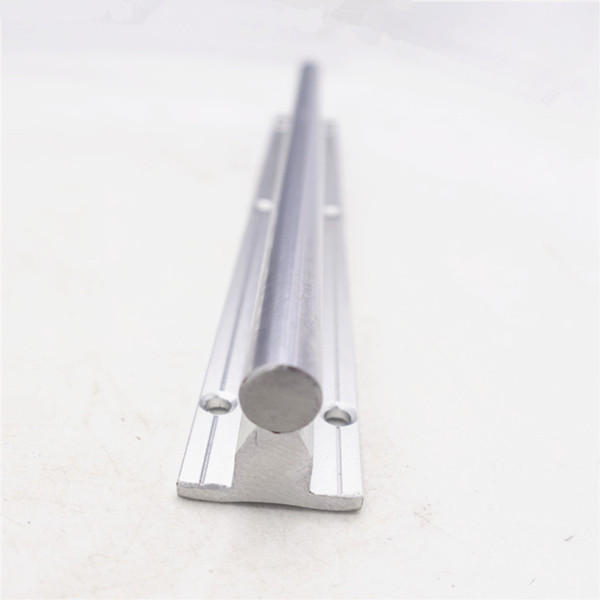

Roller Bearing Slide Rails SBR

operational principle:
  It can be understood as a rolling guide, which is an infinite rolling cycle of steel balls between the slider and the guide rail, allowing the load platform to easily move in high-precision linear motion along the guide rail, and reducing the friction coefficient to one-fiftieth of that of ordinary traditional sliding guide, which can easily achieve high positioning accuracy. The final unit design between the slider and the guide rail allows the linear guide rail to simultaneously withstand loads in various directions, such as up, down, left, right, etc. The patented reflux system and refined simplified structural design allow the linear guide rail to move more smoothly and with low noise.
  The design of roller bearing slide rails system aims to maximize the contact area between fixed and moving components. This not only improves the system's load-bearing capacity, but also allows the system to withstand the impact force generated by intermittent or gravity cutting, spreading the force widely and expanding the load-bearing area.

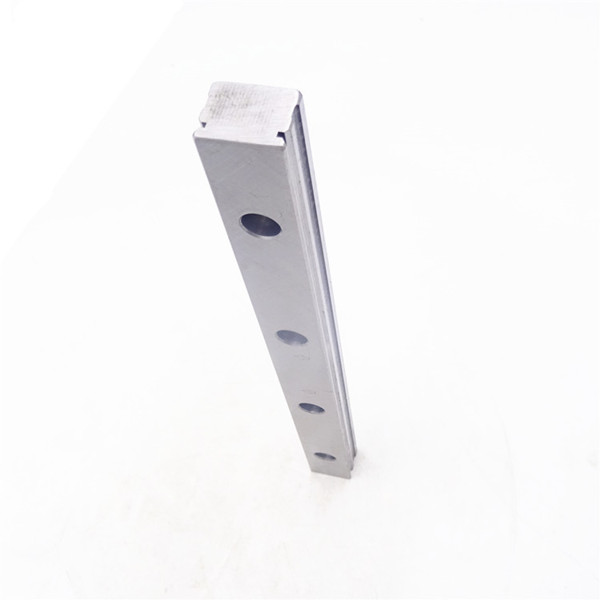

Cylindrical and Track Roller Bearing Slide Rails LWE

If you need any brand bearings or any models of bearings, please contact me!
Contact: April
Email: nsk@llhbearing.com
Skype/Wechat:April15315593063
MP/Whatsapp: +8615315593063
