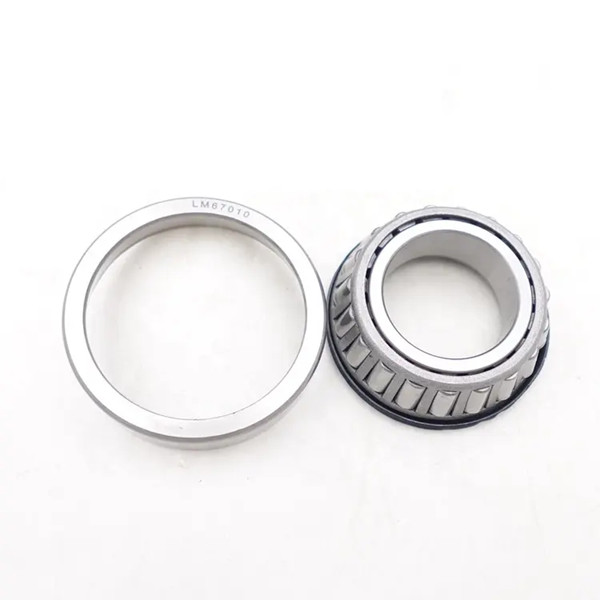

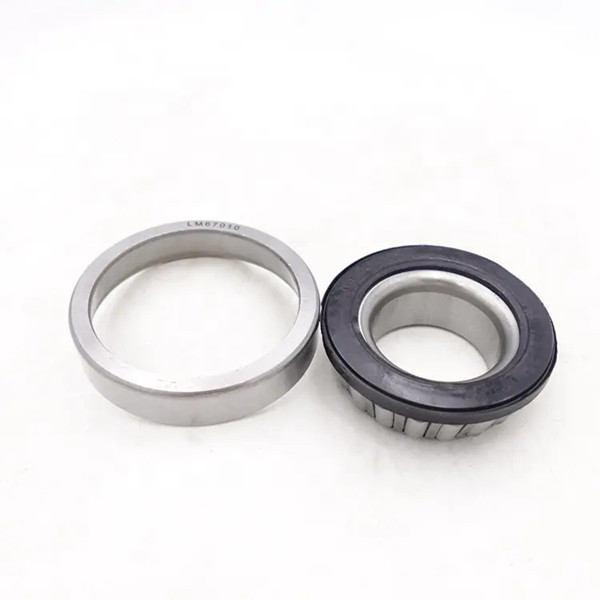

We provide all sizes sealed taper bearing

We provide all sizes sealed taper bearing for customers,metric or inch size.This type of bearing is divided into different structural types based on the number of rows of installed rollers, such as single row, double row, and four row.There are two types: small cone angle and large cone angle. The small cone angle mainly bears combined radial and axial loads, mainly radial loads. It is often used in pairs and installed in reverse. The inner and outer races can be installed separately, and the radial and axial clearance can be adjusted during installation and use; The large cone angle mainly bears the combined axial and radial loads mainly composed of axial loads, and is generally not used separately to bear pure axial loads. It can be used as a pair configuration (with the same end installed relative to each other) to bear pure radial loads.

The type code of sealed taper bearing is 30000 AL, and it is a separate type bearing. In general, the outer ring and inner components of tapered roller bearings within the standard size range can be interchanged and used 100% interchangeably. The angle of the outer ring and the diameter of the outer raceway have been standardized and specified to be the same as the external dimensions. Changes are not allowed during design and manufacturing. Sealed Taper bearing are mainly used to withstand combined radial and axial loads, mainly radial loads. Compared with angular contact ball bearings, it has a larger load-bearing capacity and lower limit speed.

classification

Single row-The most widely used type, the cone angle of the outer ring raceway is between 10 ° and 19 °, which can withstand both axial and radial loads simultaneously. The larger the cone angle, the greater the ability to withstand axial loads.

Double row-The outer ring (or inner ring) is a whole. The small end faces of the two inner rings (or outer rings) are similar, with a spacer ring in the middle. The clearance is adjusted by the thickness of the spacer ring.

Four row-Can withstand large radial loads, with low limit speed. Used in heavy-duty machines such as large cold and hot rolling mills.

If you need any brand bearings or any models of bearings, please contact me!
