Product introduction and application of stainless steel tapered roller bearing

162 Published by admin Mar 22,2024

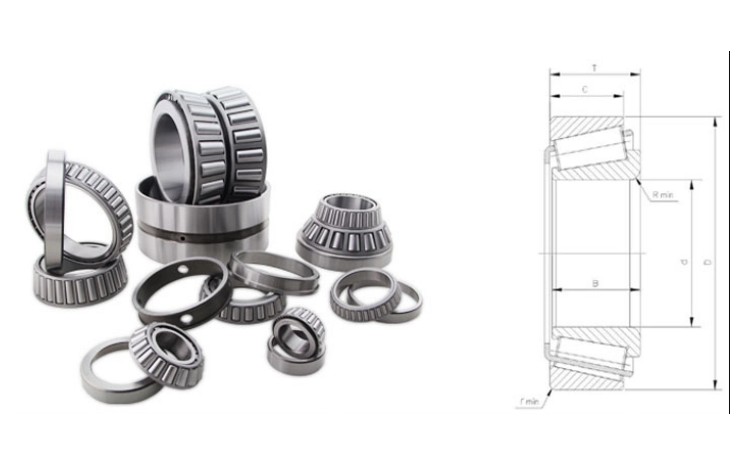

Stainless steel tapered roller bearing is separate bearings. The inner and outer rings of the bearing have tapered raceways. Stainless steel tapered roller bearing can bear radial loads and axial loads in one direction. When the bearing is subjected to a radial load, an axial component force will be generated, so another bearing that can withstand the axial force in the opposite direction is needed to balance it.

Stainless tapered roller bearing refers to a radial thrust rolling bearing whose rolling elements are tapered rollers. There are two types: small cone angle and large cone angle. The small cone angle mainly bears the combined radial and axial loads, which are mainly radial loads. They are often used in pairs and installed in reverse. The inner and outer races can be installed separately. The radial and axial clearance can be adjusted during installation and use; The large cone angle mainly bears the combined axial and radial loads, which are mainly axial loads. Generally, they are not used to bear pure axial loads alone. When configured in pairs (ends with the same name are installed oppositely), they can be used to bear pure radial loads.stainless tapered roller bearing

Stainless steel tapered roller bearing mainly bear radial and axial combined loads. The load-bearing capacity of the bearing depends on the raceway angle of the outer ring. The larger the angle, the greater the load-bearing capacity. Stainless steel tapered roller bearing have conical inner and outer ring raceways, and the tapered rollers are arranged between them. The projection lines of all conical surfaces converge at the same point on the bearing axis. This design makes tapered roller bearings particularly suitable for carrying combined (radial and axial) loads. The axial load capacity of the bearing is mostly determined by the contact angle α; the larger the α angle, the higher the axial load capacity. The size of the angle is expressed by the calculation coefficient e; the larger the value of e, the larger the contact angle, and the greater the suitability of the bearing for bearing axial loads.

Stainless steel tapered roller bearing is usually separate types, that is, the conical inner ring assembly consisting of an inner ring with a roller and cage assembly can be installed separately from the conical outer ring (outer ring). Stainless steel tapered roller bearings are widely used in automobiles, rolling mills, mining, metallurgy, plastic machinery and other industries.
