U groove track roller bearing Series LR rollers are the most widely-use and economy product among the linear motion track rollers,and they can suit to the cylindrical track.
There are two contact points between the roller and track,so the contact function is favoraable.
Rollers feature double row angular contact balll bearing in its internal structure design and a thick-walled outer ring,so the rollers can accommodate higher loads.
U groove track roller bearing's rollers are made of the high-quality bearing steel,processed by heat treatment and precision grind,and are filled with a long service life.high grade and multi-purposes grease.U groove track roller bearing take the metal shield(suffix KDD) or rubble seal(suffix NPP) to prevent the dust.UBM also can provide the rollers with concentric or eccentric pivot.Some types of the rollers can be made from the corrosionn resistance stainless steel.
U groove track roller bearing LFR5201NPP details:
New code
|
LFR5201NNP | |
---|---|---|
Bearing type
|
U groove bearings
|
|
Brand
|
Germany Brand
|
|
Business type
|
Manufacturer
|
|
Id (mm)
|
12 | |
OD (mm)
|
35 | |
B (mm)
|
15.9 | |
Cr(KN)
|
7.65 | |
Cor(KN)
|
3.72 | |
Speed for grease lubrication (r/min)
|
18000 | |
Oil lubrication speed (r/min)
|
22000 | |
Weight(kg)
|
0.6 | |
Material
|
Chrome steel or Stainless steel
|
|
Delivery time
|
2-3 days of stock, 15-30 days for OEM
|
|
Packing
|
industrial packing or commercial packing
|
|
Payment terms
|
T/T, Western Union, Paypal
|
|
Gurantee
|
1 years
|

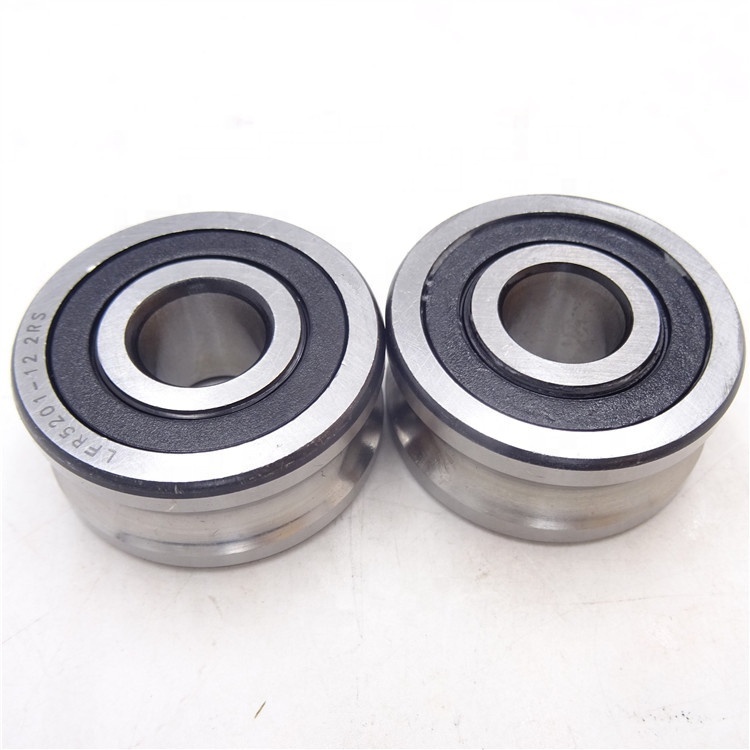

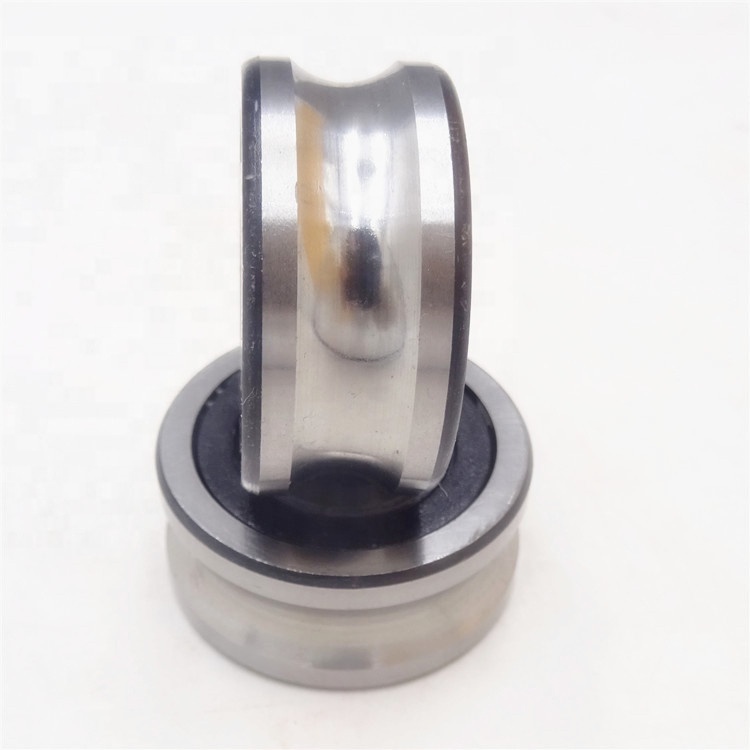

U groove track roller bearing LFR5201NPP picture:
![]() |
![]() |
U groove track roller bearing application:
It widely used in cars, compressors, construction, electric motors, food industry, home appliances etc. As a rolling element, it turns the world.
