NTN AEL 205 insert ball bearing details

30 Published by admin Sep 01,2021

AEL 205 ball bearing insert is actually a variant of the deep groove ball bearing. AEL 205 ball bearing characteristic is that its outer ring outer diameter surface is a spherical surface, which can be fitted into the corresponding concave spherical surface of the bearing seat to play the role of centering. AEL 205 ball bearing is mainly used to bear the combined radial and axial load, which is mainly the radial load. Generally, it is not suitable to bear the axial load alone. This type of bearing can be installed with an inner ring (with a full set of rollers and retainers) and an outer ring separately. This kind of bearing does not allow the shaft to be tilted relative to the housing, and additional axial force will be generated when the radial load is used. The size of the axial clearance of this kind of bearing has a great influence on whether the bearing can work normally. When the axial clearance is too small, the temperature rise is higher; when the axial clearance is large, the bearing is easy to be damaged. Therefore, special attention should be paid to adjusting the axial clearance of the bearing during installation and operation, and pre-interference installation can be used if necessary to increase the rigidity of the bearing.

NTN AEL 205 Details:

ael 205



d 31/32 in

25.000 mm

D 2.0472 in

52.000 mm

C 0.5906 in

15.000 mm

B 0.8465 in

21.500 mm

B1 1.2205 in

31.000 mm

r 0.0394 in

1.000 mm

ds M6x0.75
G 0.1890 in

4.800 mm

d3 1.4961 in

38.000 mm

B5 0.5315 in

13.500 mm

S1 0.9252 in

23.500 mm

S 0.2953 in

7.500 mm

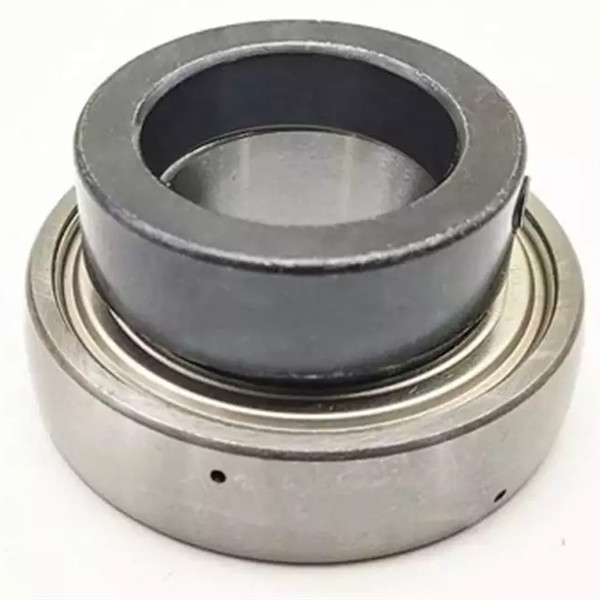

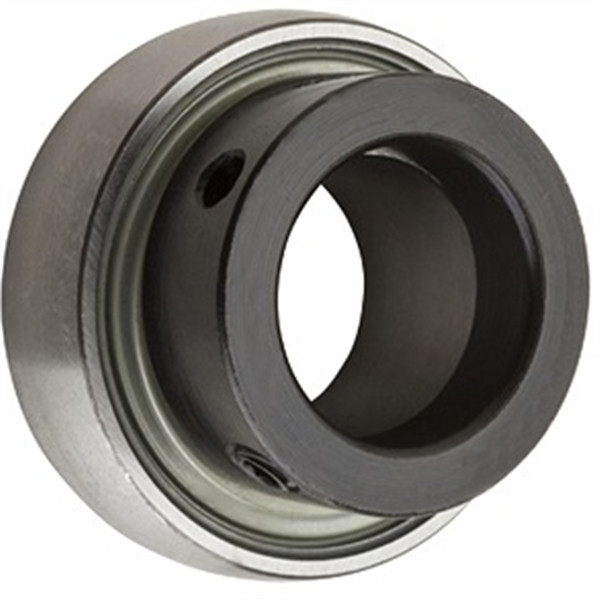

NTN AEL 205NTN AEL 205 Picture

ael205 ael 205
ntn ael205 ntn ael 205 bearing

NTN AEL 205 Application:

AEL 205 preferentially suitable for occasions that require simple equipment and parts, such as agricultural machinery, transportation systems or construction machinery.

If you need any brand bearings or any models of bearings, please contact me!

Contact: Grace
Email: ntn@llhbearing.com
Skype:+8618668903871
MP/Whatsapp: +8618668903871
Wechat:GraceXu1234
