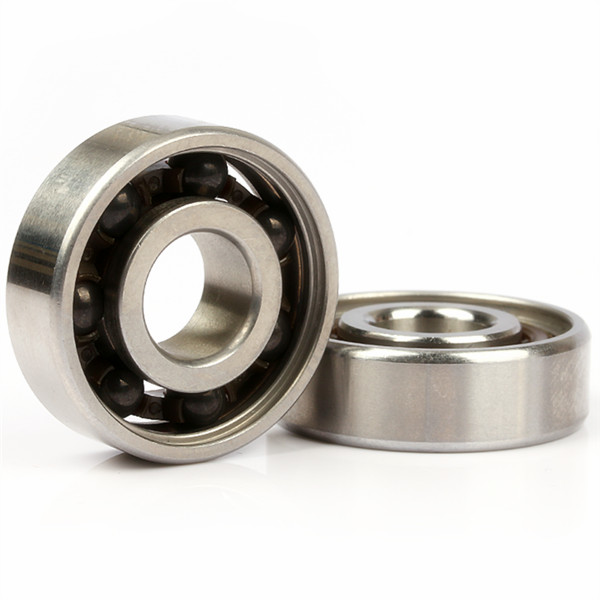

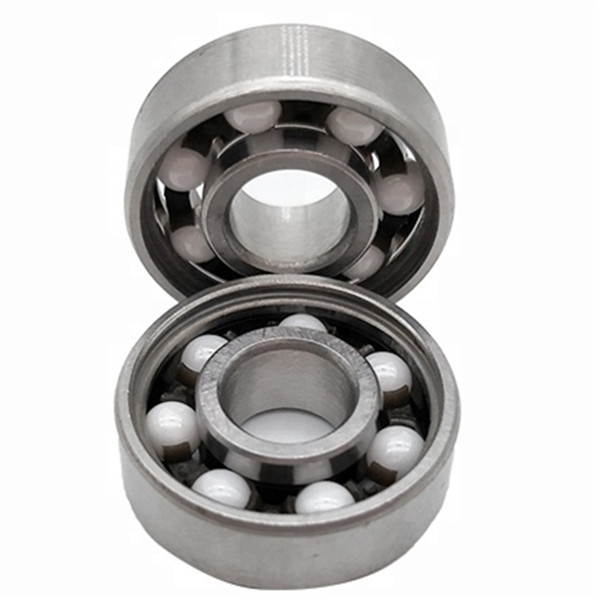

Chrome steel ring hybrid ceramic bearing advantage introduction

Chrome steel ring hybrid ceramic bearing is a combination of the bearing steel ring and the bearing grade silicon nitride (Si3N4) rolling body.Silicon nitride rolling elements provide higher bearing performance even under difficult operating conditions, thus extending the service life of the bearing.Many customers are very interested in our chrome steel ring hybrid ceramic bearing,but they are not very familiar with the bearing,so i always introduce to them the bearing details,actually this bearing have many advantages than ordinary steel bearing.

Traditional all-steel bearings limit the design potential as the technical requirements develop at an astonishing rate.The mixed ceramic bearing with silicon nitride ball meets and exceeds the current high-tech requirements and provides a series of characteristics far superior to the traditional all-steel bearing.
The advantages of chrome steel ring hybrid ceramic bearing compared to the steel-rolling bearings include:
1. Prevent current damage:the chrome steel ring hybrid ceramic bearing is non-conductive and thus suitable for applications such as dc and ac motors and generators with current.
2. Improve rotating speed performance: the density of silicon nitride rolling body is 60% lower than that of bearing steel rolling body of the same size.Lighter weight means less inertia, which gives the chrome steel ring hybrid ceramic bearing excellent performance during rapid start and stop.

3, long service life:the heat generated by friction in the chrome steel ring hybrid ceramic bearing is low, especially at high speed, which helps to extend the service life of the bearings and extend the relubrication interval.
4. Strong wear resistance: the silicon nitride roller has higher hardness, making the mixed ceramic bearing capable of difficult conditions and pollution environment.
5. High bearing stiffness:the hybrid ceramic bearing has a high elastic modulus, providing higher bearing stiffness.
If you need chrome steel ring hybrid ceramic bearing or any models of bearings, please contact me!
