Definition and application of linear rail guide

11 Published by admin Aug 05,2022

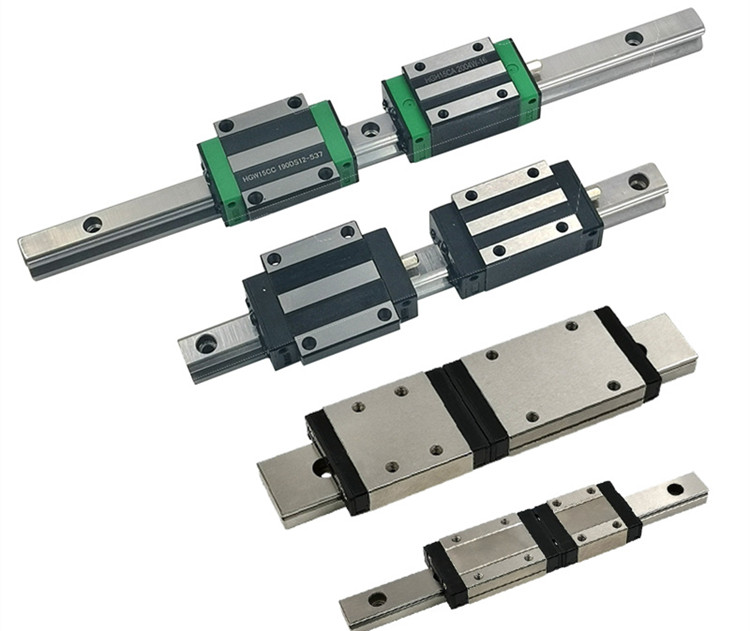

Linear rail guide, also known as linear guides, slide rails, linear guides, and linear slides, are used in linear reciprocating motion applications, and can bear a certain torque, and can achieve high-precision linear motion under high load conditions. In the mainland, it is called a linear guide, and in Taiwan, it is generally called a linear guide and a linear slide.

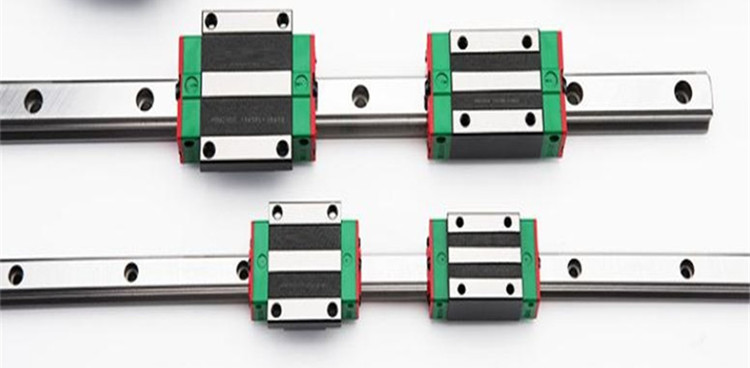

Linear rail guide can be divided into three types: roller linear guides, cylindrical linear guides, and ball linear guides. They are used to support and guide moving parts and perform reciprocating linear motion in a given direction. According to the nature of friction, linear motion guides can be divided into sliding friction guides, rolling friction guides, elastic friction guides, fluid friction guides and other types.linear rail guide

The function of the Linear rail guide motion is to support and guide the moving parts, and make a reciprocating linear motion in a given direction. According to the nature of friction, linear motion rail guide can be divided into sliding friction guides, rolling friction guides, elastic friction guides, fluid friction guides and other types. Linear bearings are mainly used in automated machinery, such as machine tools imported from Germany, bending machines, laser welding machines, etc. Of course, linear bearings and linear shafts are used together. For example, Linear rail guide is mainly used in mechanical structures with relatively high precision requirements. There is no intermediate medium between the moving elements and fixed elements of linear guides, but rolling steel balls.rail guides

Application areas:
1. Linear rail guide is mainly used in automated machinery, such as machine tools imported from Germany, bending machines, laser welding machines, etc. Of course, Linear rail guide and linear block are used together.

2. Linear rail guide is mainly used in mechanical structures with relatively high precision requirements. There is no intermediate medium between the moving elements and fixed elements of the linear guides, but rolling steel balls. Because the rolling steel ball is suitable for high-speed movement, small friction coefficient and high sensitivity, it can meet the working requirements of moving parts, such as tool rests of machine tools, carriages, etc. If the force acting on the steel ball is too large, the steel ball will be subjected to preloading for too long, resulting in an increase in the movement resistance of the bracket.
