Do you know the method of spherical roller bearing assembly?

127 Published by Apr 26,2019

Do you know the method of spherical roller bearing assembly?
Between the inner ring with two raceways and the outer ring with spherical raceways, the self-aligning roller bearing is equipped with a drum roller bearing.The curvature center of the outer ring raceway surface is consistent with the bearing center, so it has the same centering function as the automatic centering ball bearing.In the shaft, shell deflection, can automatically adjust the load and two directions of the axial load.Radial load capacity, suitable for heavy load, shock load.Inner ring bore is taper bore bearing and can be installed directly.Or use a set sleeve, remove the cylinder and install it on the cylindrical shaft.The cage is made of steel plate, polyamide forming cage and copper alloy.

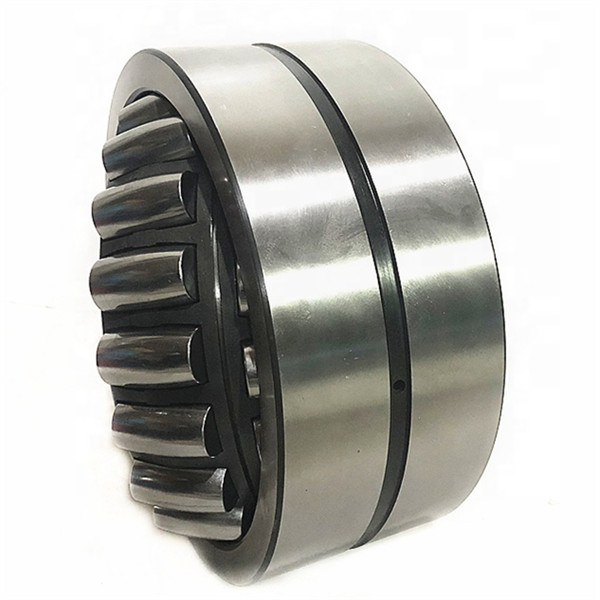

oem spherical roller bearing assembly
Spherical roller bearing assembly is very important.The spherical roller bearing assembly protrude from the side of the bearing, so the middle mounting ring should be recessed to prevent damage to the ball bearings.A large number of bearings are generally installed by mechanical or hydraulic pressure method.
Matters need attention for spherical roller bearing assembly:

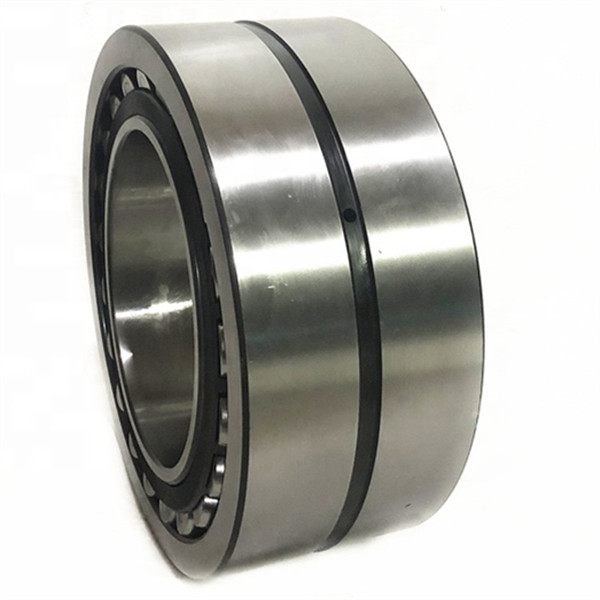

spherical roller bearing assembly
1. The spherical roller bearing assembly must be carried out under dry and clean environmental conditions.
2. Aligning roller bearing should be cleaned with gasoline or kerosene before spherical roller bearing assembly, and used after drying, and ensure good lubrication. Generally, the bearing is lubricated with grease or oil.
3. Spherical roller bearing assembly must be equal pressure on the circumference of the ring width, to press the ring into, can not use top tools directly on bearing face, in order to avoid damage
4. When large amounts of interference, can use oil bath heating or inductor heating method to install the bearing, the heating temperature range of 80 ℃ to 100 ℃, the highest must not exceed 120 ℃.
If you want to know more about spherical roller bearing assembly or need any other bearings, please also contact me!
