What is Slide Square Linear Rail Guide?

48 Published by admin May 24,2024

 Linear guide rail, also known as square linear rail, slide rail, linear guide rail, or linear slide rail, can be divided into three types: roller linear guide rail, cylindrical linear guide rail, and ball linear guide rail. Used in high-precision or high-speed linear reciprocating motion scenarios, and can bear a certain amount of torque, achieving high-precision linear motion under high loads.

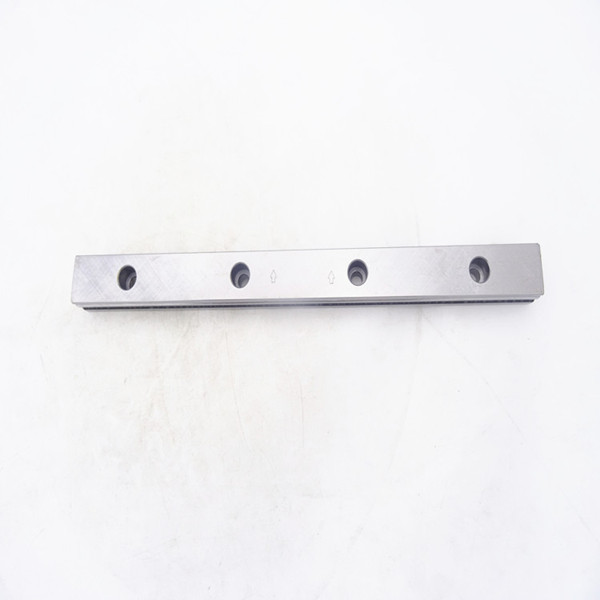

square linear rail guide

Operational principle:
  It can be understood as a rolling guide, which is made up of steel balls rolling infinitely between the slider and the square linear rail, allowing the load platform to easily move in a high-precision linear motion along the guide rail, and reducing the friction coefficient to one-fifty of that of ordinary traditional sliding guide, which can easily achieve high positioning accuracy. The final unit design between the slider and the guide rail allows the linear guide rail to withstand loads in various directions such as up, down, left, right, etc. The patented reflux system and simplified structural design make the linear guide rail move more smoothly and with low noise.
Slider - Transforms motion from a curve to a straight line. The new guide rail system enables the machine tool to achieve fast feed rates.
  The basic function of the fixed component (guide rail) of the square linear rail system is like a bearing ring, a bracket for installing steel balls, with a shape of "v". The bracket wraps around the top and two sides of the guide rail. In order to support the working components of the machine tool, a set of linear guides has at least four brackets. Used to support large working components, the number of brackets can be more than four.

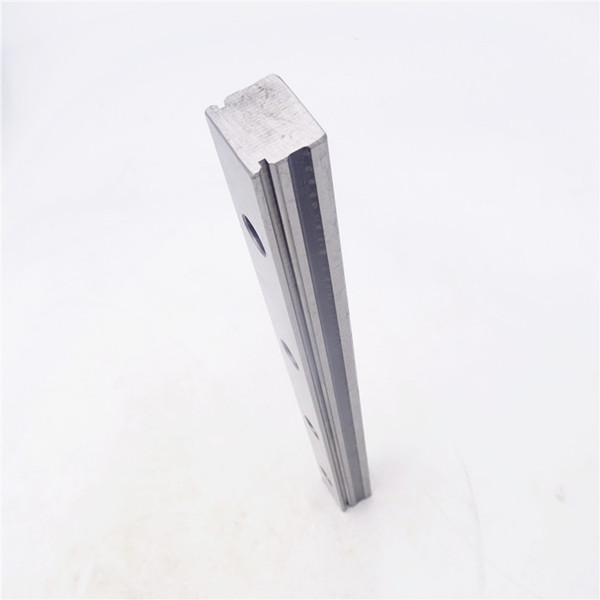

square linear rail slide

Application area
1. Mainly used in automated machinery, such as machine tools, bending machines, laser welding machines, and so on.
2. Suitable for high-speed motion, low friction coefficient, high sensitivity, and meeting the working requirements of moving parts, such as tool holders and drag plates in machine tools.

Notes:
A.Prevent rusting;
B.Keep the environment clean: Keep the linear guide rail and its surrounding environment clean
C.Installation should be careful and careful: strong stamping is not allowed, direct tapping of the guide rail with a hammer is not allowed, and pressure transmission through rolling elements is not allowed.
D.The installation tools should be suitable

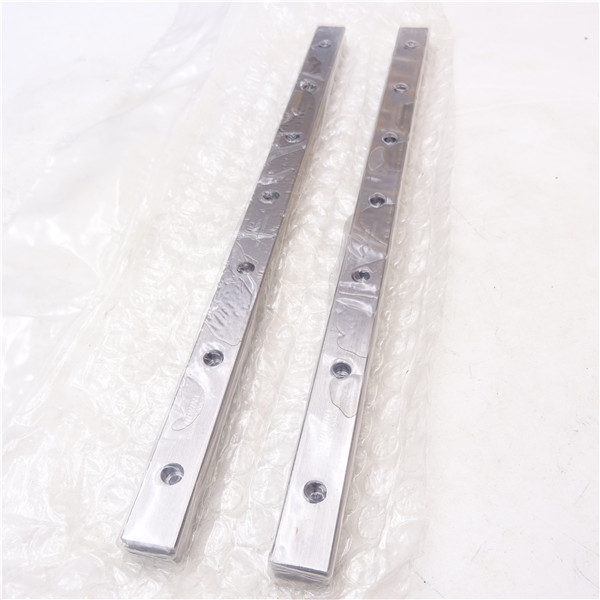

square linear rail bearing
